PLAYBACK Basic Connections And Tape Dubbing

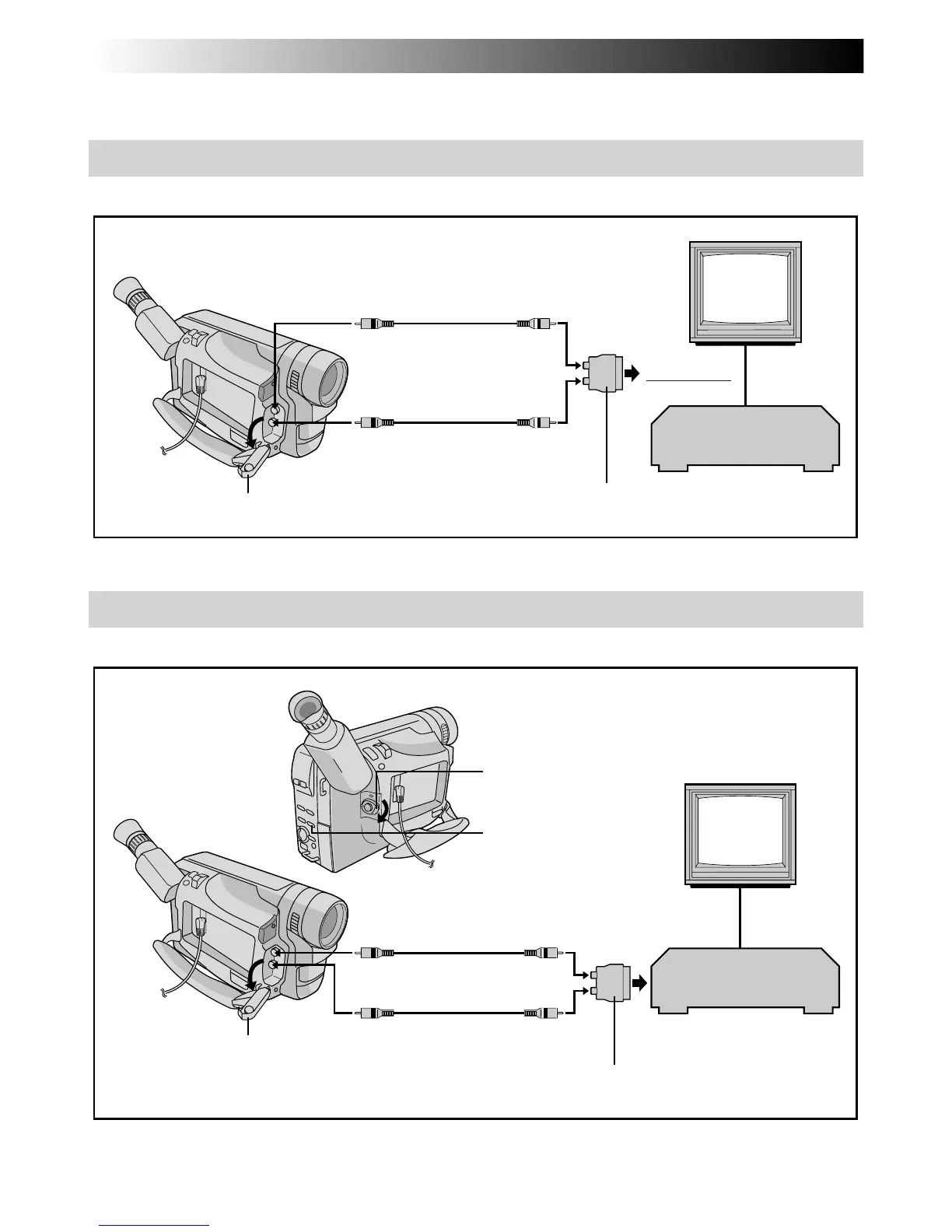

These are some basic types of connections. When making connections, refer also to your VCR and TV
instruction manuals.
Use optional Video and Audio cables.
Basic Connections
Video cable (optional)
If your TV/VCR has the SCART connector,
use the provided cable adapter.
Audio cable (optional)
To Video
Output
To Audio
Output
TV
VCR
Connector cover*
To TV or VCR
To AUDIO and
VIDEO IN connectors
Use optional Video and Audio cables.
Connection For Tape Dubbing
* When connecting the cables, open this cover.
Power Switch
PLAY/PAUSE (
4 /6) Button
Connector cover*
Audio cable (optional)
To Video
Output
Video cable (optional)
VCR (Recording deck)
TV
To Audio
Output
To AUDIO and
VIDEO IN connectors
If your TV/VCR has the SCART connector,
use the provided cable adapter.
