HA-W400RF (EG) /(EK)
12 (No.70245)

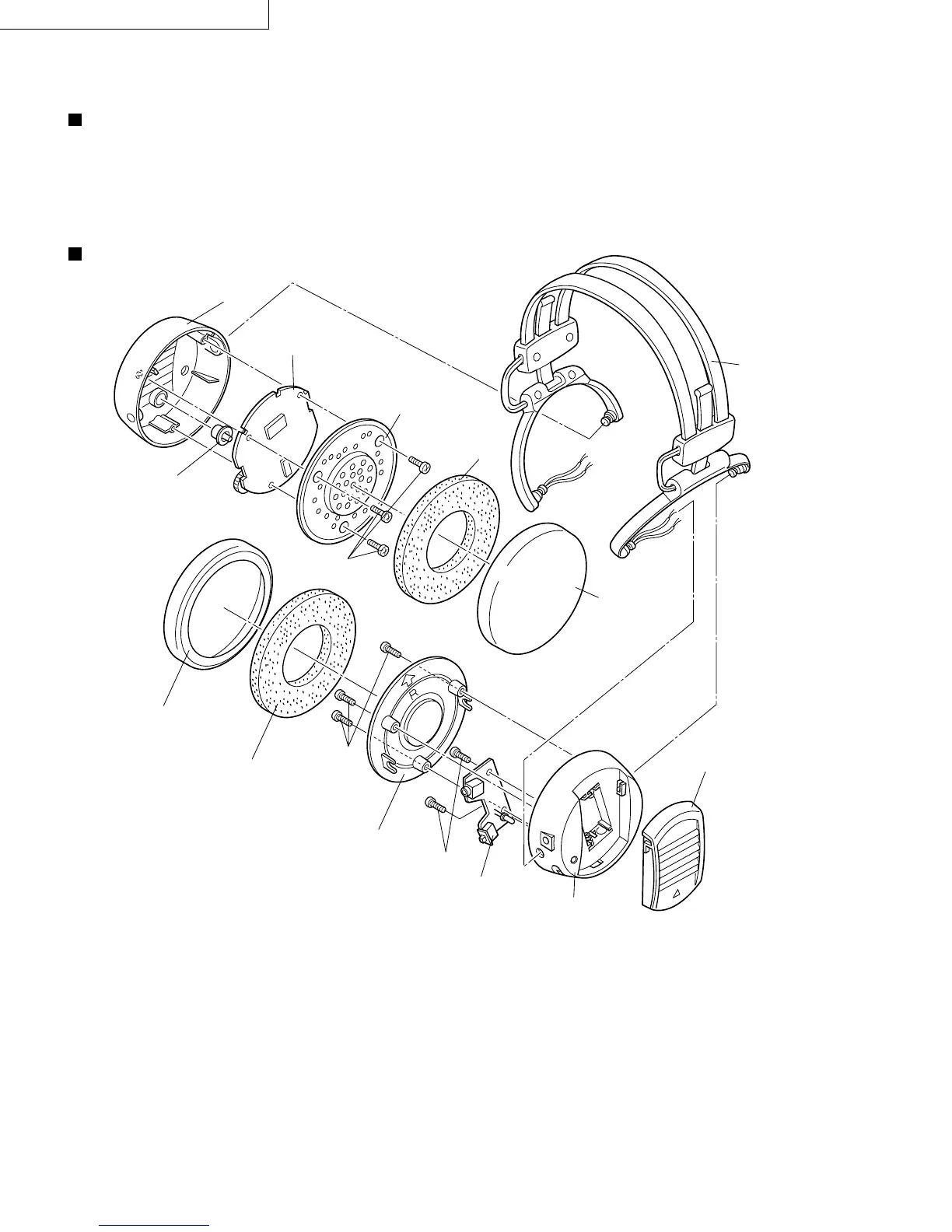

2.Disassembly
Receiver(Headphones)
In case of some problems arise in this transmitter unit,
have to change the transmitter unit itself, due to avoid
the law of radio regulation.
Transmitter
-
1
1
5
5
2
8
9
~
=
7
0
3
2
4
6
1.Remove the ear pad 1 and the cushion 2 from the driver unit ass’y (L) 3 and (R) 4.
2.Remove the screw 5 and pull up the driver unit ass’y(L) 3 and (R) 4.
3.At channel R. remove the screw 6 and pull up the charge print circut board 7.
4.Remove the battery door 9 from the housing ass’y (R) 8.
5.At channel L. Remove the main print circut board 0 from the housing (L) -.
6.Remove the tuning switch knob =.
7.Remove the wire with solder from the charge and main print circut board 70, then remove the headband
ass’y ~.
To Next Page
