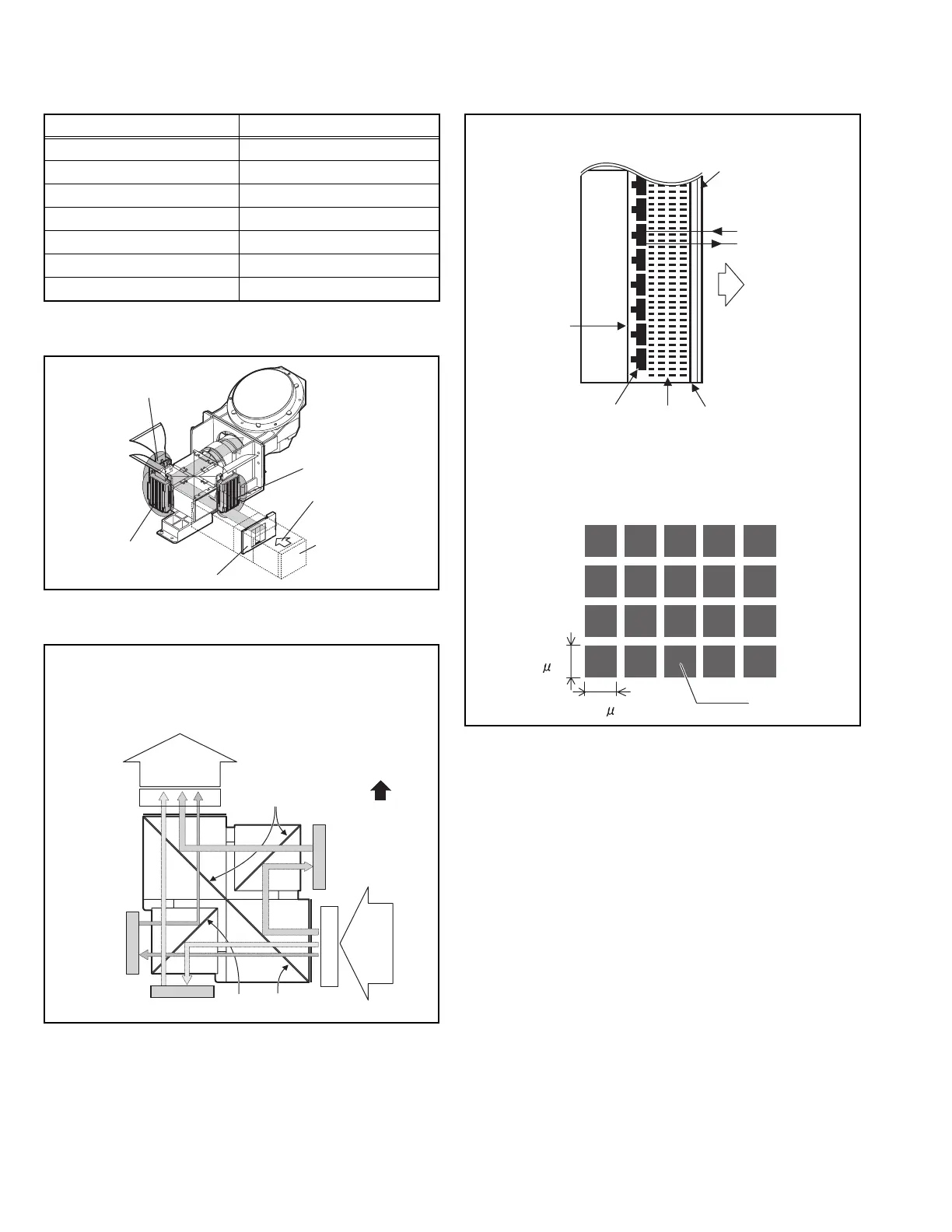

2.4 TECHNICAL INFORMATION
2.4.1 D-ILA DEVICE SPECIFICATION
2.4.2 PROJECTION UNIT
2.4.3 IMAGE LIGHT FLOW
2.4.4 D-ILA DEVICE STRUCTURE
Item Content
Resolution H: 1952 × V:1088
Pixel number about 2123776
Pixel size H : 8.1µm × V :8.1µm
Aspect ratio 16 : 9
Contrast ratio 5000 : 1
Aperture ratio 89% or more
Effective pixel measurement 0.7 inch
R DEVICE
G DEVICE
OPTICAL IRIS
B DEVICE
Lamp unit
Incident light
Device
BRG
B
BRG
R
Projection
light
G
Mirror
MirrorMirror
FRONT
DEVICE UNIT SECTION (TOP VIEW)
Device
Device
Incident
light
Pixel
FRONT
Incident light
Projection light
Glass
substrate
Transparent
electrode
Reflective pixel
electrode
Back
Plane
Liquid
crystal
Flat film
R / G / B DEVICE (SIDE VIEW)
8.1 m
PIXEL VIEW (FRONT VIEW)
8.1 m
