d. If the product does not operate normally by following the
operating instructions. Adjust only those controls that are
covered by the operating instructions as an improper adjust-
ment of other controls may result in damage and will often
require extensive work by a qualified technician to restore the
product to its normal operation.
e. If the product has been dropped or damaged in any way.
f. When the product exhibits a distinct change in performance—
this indicates a need for service.
3. Replacement Parts
When replacement parts are required, be sure the service technician
has used replacement parts specified by the manufacturer or which
have the same characteristics as the original part. Unauthorized
substitutions may result in fire, electric shock or other hazards.
4. Safety Check
Upon completion of any service or repairs to this product, ask the
service technician to perform safety checks to determine that the
product is in safe operating condition.
How to use the Remote
Before use, insert two AAA size batteries into the Remote with the
polarity ( and ) matched correctly as indicated on the battery
compartment or on the lid.
• Point the Remote toward the remote sensor on the target
component.
• The maximum operating distance of the remote control is about 5
m.
NOTE:
If the Remote does not work properly, remove its batteries, wait for a
few seconds, replace the batteries and then try again.
Video heads cleaning
Use a dry cleaning cassette — TCL-2— when:
• Rough, poor picture appears while a tape is played back.
• The picture is unclear or no picture appears.

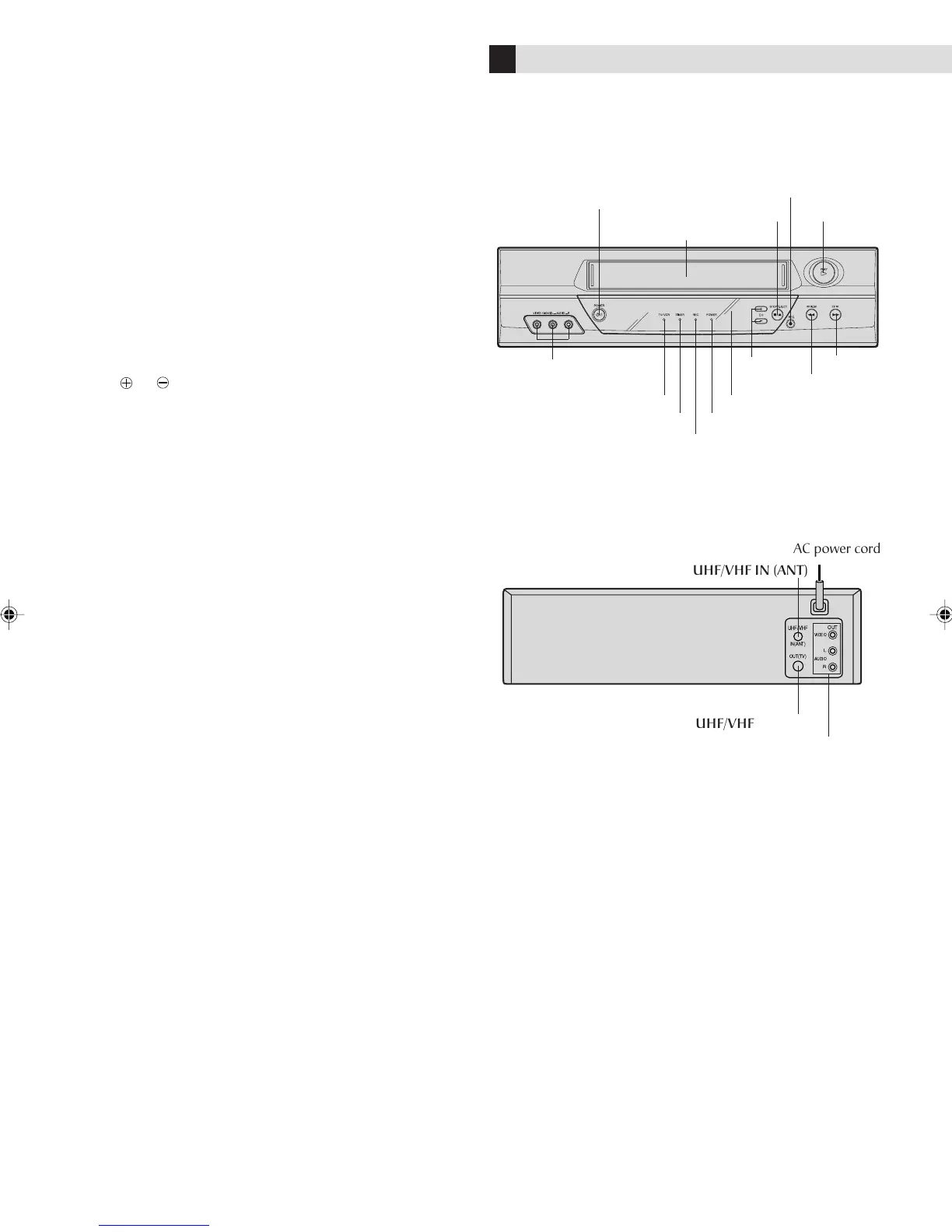

Buttons, Connectors and Indicators
Front Panel
Cassette loading slot
PLAY
CH+/-
STOP/EJECT
REW
FF
REC
VIDEO/AUDIO (L/R)
input connectors
POWER
Remote sensor
Rear Panel
TV/VCR indicator
TIMER indicator
REC indicator
POWER indicator
UHF/VHF
OUT(TV)
IN(ANT)
VIDEO
OUT
AUDIO
L
R
AC power cord
UHF/VHF IN (ANT)
UHF/VHF OUT (TV)
VIDEO/AUDIO (L/R) OUT
