3-5

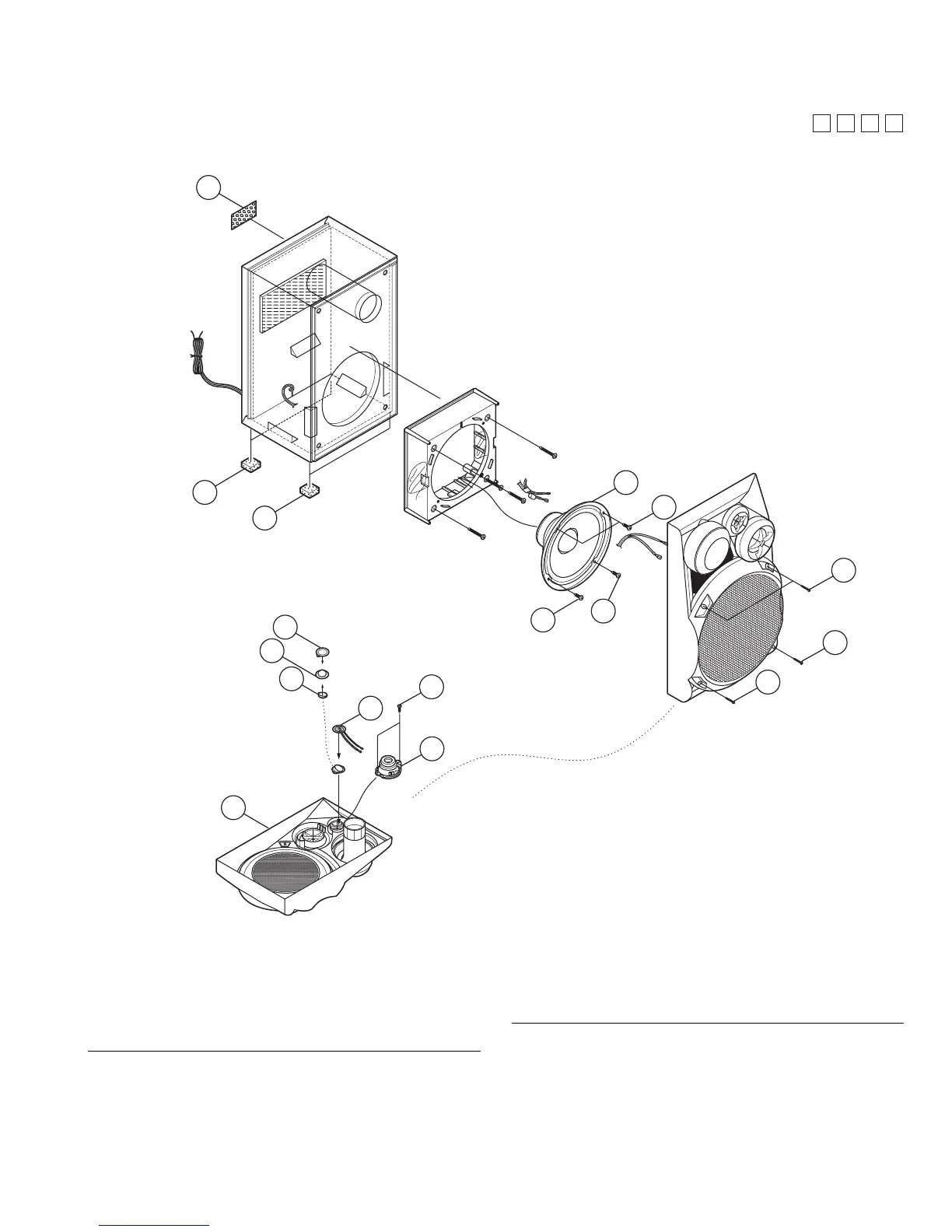

Speaker assembly and parts list
Main speaker
Block No. [M][2][M][M]
Block No.
M
M
M
2
(Main)
12
11
12
10
8
9
1
5
3
4
7
7
7
6
2
6
6
Symbol No.
Part No. Part Name Description Local
1 J200-XZ7VL0G-40
FRONT PANEL
ASSY(L)
1 J200-XZ7VR0G-40
FRONT PANEL
ASSY(R)
2 300-J0XZ9V1600 WOOFER (x2)
3 302-J0G7500500 TWEETER (x2)
4 348-201007-10 PIEZO ASSY (x2)
5 411-B140080P1 SCREW (x4)
6 411-B840120P1 SCREW (x8)
7 411-N54020AB1 SCREW (x8)
8 435-120304-00 PIEZO CAP (x2)
9 436-T00270-00 D.SIDE TAPE (x2)
10 436-T25300-00 DOUBLE SIDE TAP (x2)
11 600-L0Z9VU-00 SPEC LABEL(L)
11 600-R0Z9VU-00 SPEC LABEL(R)
12 441-802104-00 LEG CUSHION (x8)
Symbol No.
Part No. Part Name Description Local
