3-6

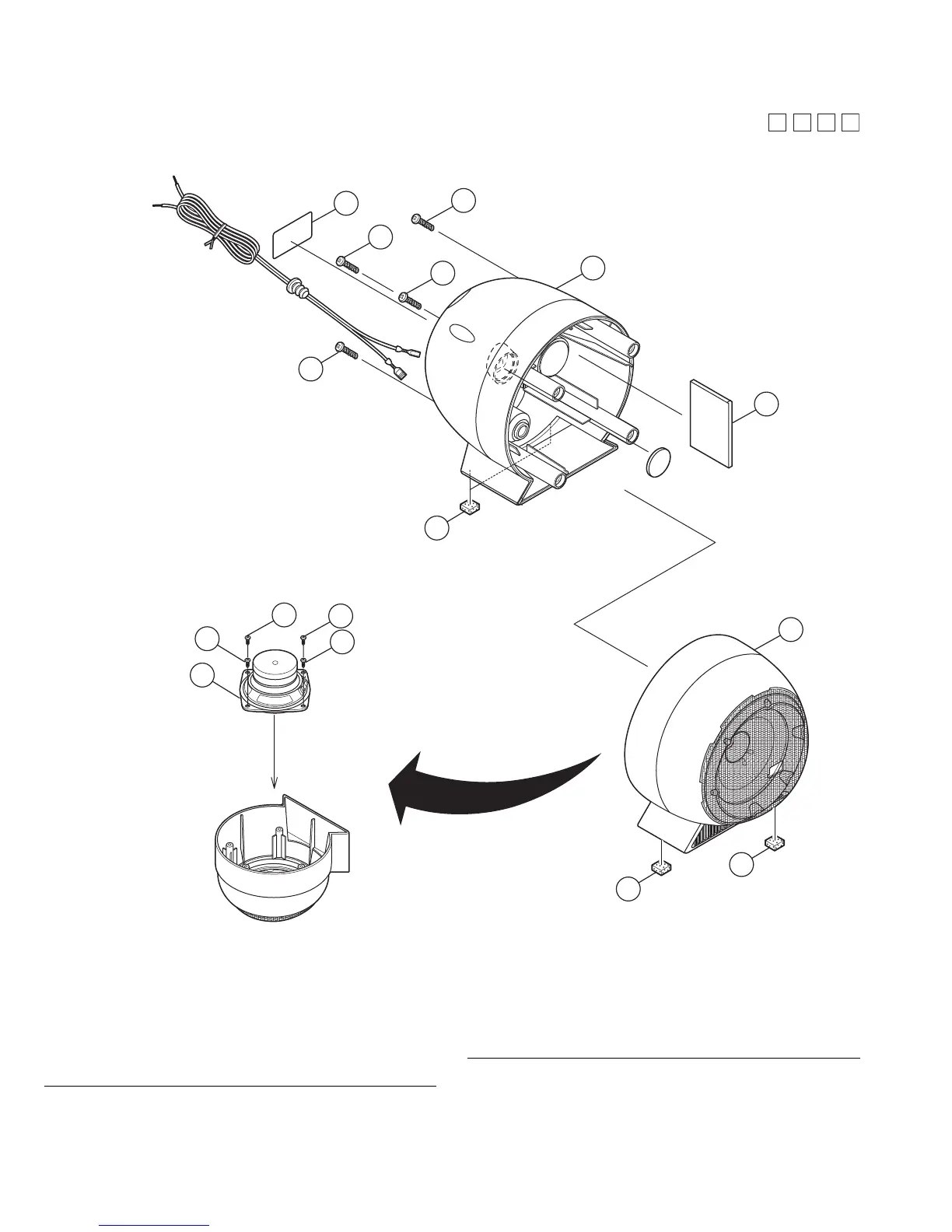

Speaker assembly and parts list
Surround speaker
Block No. [M][6][M][M]
Block No.
M
M
M
6
(Surround)
J
VC
7
5
5
5
5
2
4
4
4
4
3
1
6
8
8
8
Symbol No.
Part No. Part Name Description Local
1 J227HXZ9V00G40 FRONT CASE ASSY (x2)
2 J227HXZ9V01G10 BACK CASE ASSY (x2)
3 305-080006-00 FULLRANGE-REAR (x2)
4 411-B140080P1 SCREW (x8)
5 411-B840140B1 SCREW (x8)
6 443-910503-00 SOUND ABSORBER (x2)
7 600-00XSZ9-00 SPEC LABEL (x2)
8 411-915102-00 LEG CUSHION (x8)
Symbol No.
Part No. Part Name Description Local
To Next Page
