JVC In-Dash DVD Player KD-LX50R Service Manual

EXTGS004-26P
EXTLX001-2P
EXTLX001-6PC
EXTLX001-6PF
EXTLX001-16PF
EXTLX002-4P
EXTLX002-SWPWB
EXTLX002-16PC
EXTLX001-2P

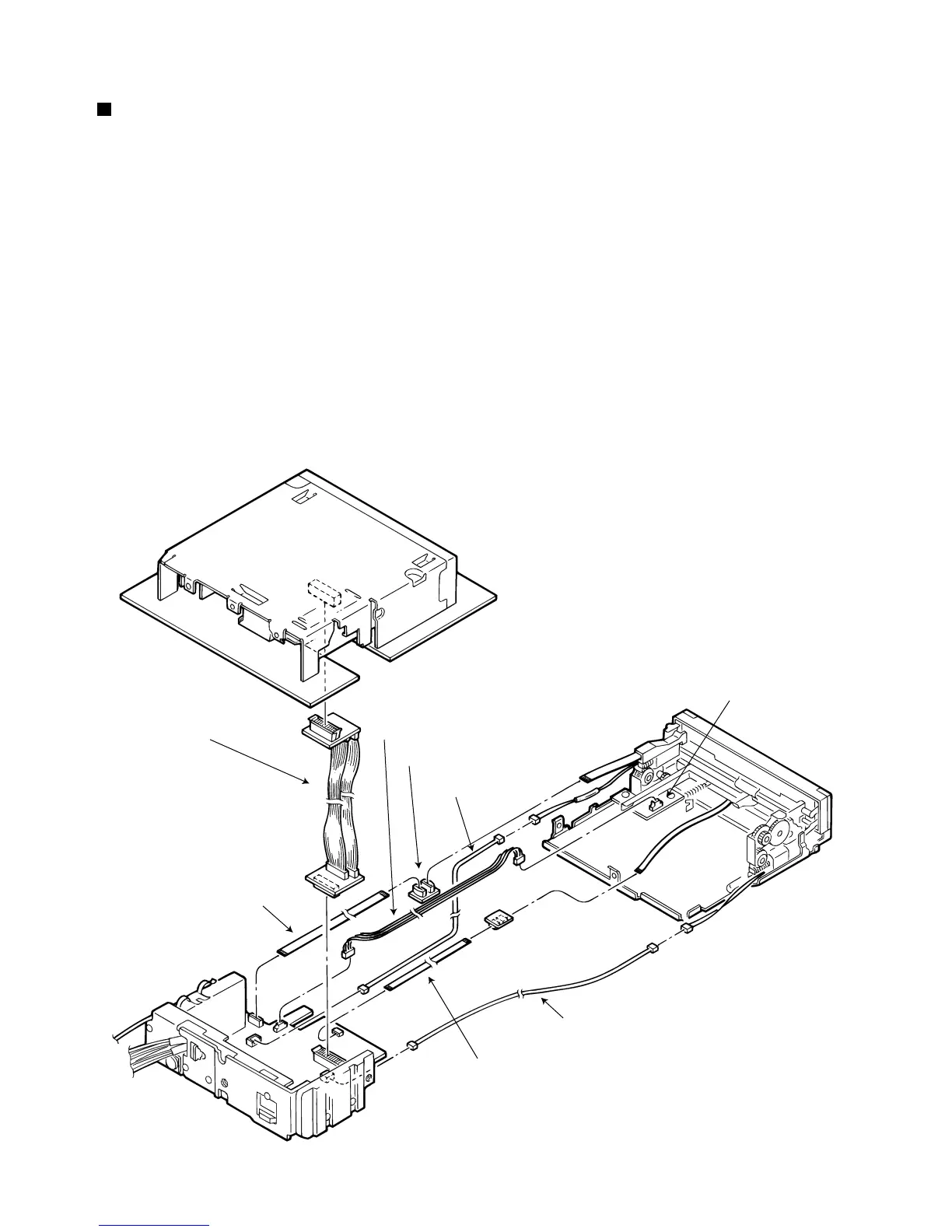

Using the extention cords to connect the front panel with the main board
Remove the main board follwing the disassembly
methode. Then reattachi the heat sink to main
board.
Using the 2pin extention cord (EXTLX001-2p),
connect the harness of the feed motor (L) assembly
with the connector CN503 on the main board.
Using the 2pin extention cord (EXTLX001-2p),
connect the harness of the feed motor (R)
assembly with the connector CN504 on the main
board.
Extension cord connecting method
1.
2.
Using the jig board (EXTLX002-SWPWB), its
installing to the chassis, then using 4pin extention
cord (EXTLX002-4P) connect the harness of the
lifter detecting board with the connector CN704 on
the board.
Connect the connector (EXTLX001-6PC) and
extension wire (EXTLX001-6PF), connect the 6pin
connector CN702 on the main board.
Connect the connector (EXTLX002-16PC) and
extension wire (EXTLX002-16PF), connect the
16pin connector CN701 on the main board.
3.
4.
5.
