JVC KD-DV6105 Service Manual

(No.MA158)1-29
SECTION 5
TROUBLESHOOTING

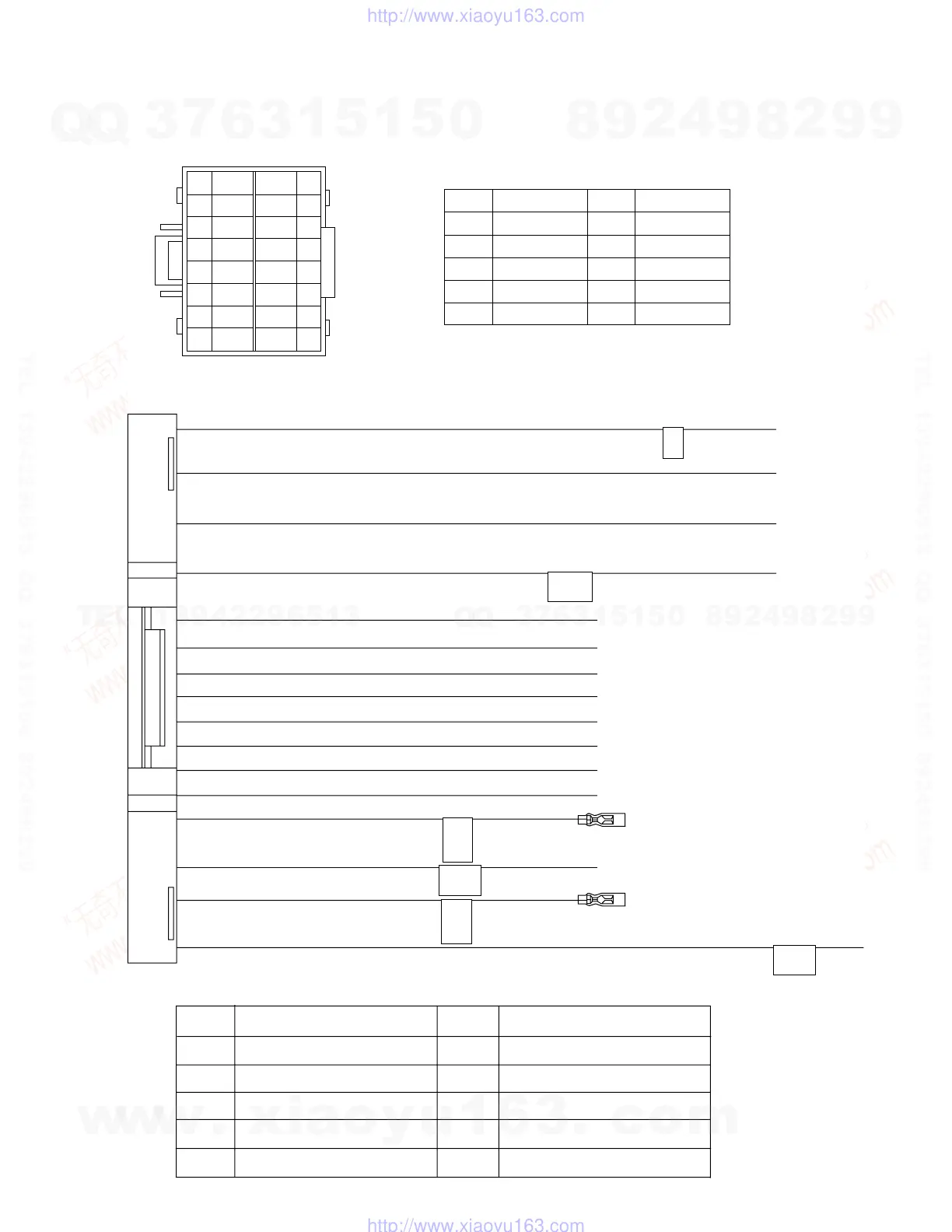

5.1 16 PIN CORD DIAGRAM
8
7
6
5
4
3
2
1
9
10
11
12
13
14
15
16
GN
GN/BK
VI/BK
VI
BL
BL/WH
RD
BK
WH
WH/BK
GY/BK
GY
BR
YG
OR/WH
YL
1 BK
16 YL
2 RD
15 OR/WH
9 WH
10 WH/BK
12 GY
11 GY/BK
8 GN
7 GN/BK
5 VI
6 VI/BK
3 BL/WH
14 YG
PARKING
BRAKE
ILLUMINATION
CONTROL
GND
GND
MEMORY
ACC
ILL
FL+
FL-
FR+
FR-
RL+
RL-
RR+
RR-
REMOTE
PARKING
4 BL
ANT
TEL MUTING
REMOTE OUT
POWER ANTENNA
BK
RD
BL
WH
BR
Black
Red
Blue
White
Brown
GN
Green
VI
Violet
GY
Gray
YL
Yellow
OR
Orange
YG
Yellow Green
RR
Rear Right
FR
Front Right
FL
Front Left
RL
Rear Left
REMOTE
Remote
ILL
Illuminations Control
ANT
ACC
TEL
Auto Antenna
ACC Line
Telephone Muting
GND
Ground
MEMORY
Memory Backup Battery+
PARKING
Parking Brake
13 BR
TEL
