C

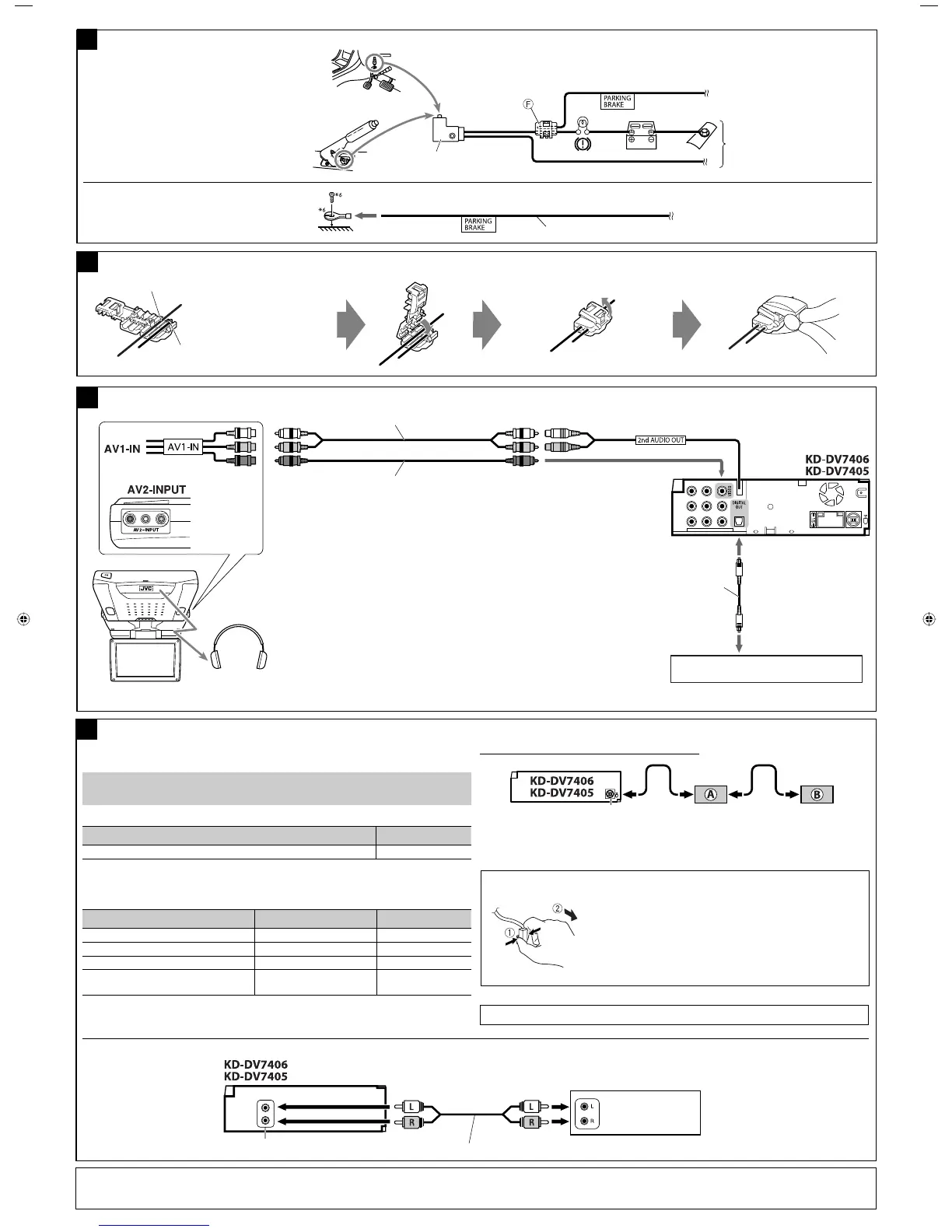

Connecting the parking brake wire
When installing the monitor in a location
where it can be seen by the driver
Connect the parking brake wire to the parking brake
system built in the car.
When installing the monitor in a location where
it cannot be seen by the driver
Connect the parking brake wire to metallic body or
chassis of the car.
Connecting the crimp connector
D
Parking brake wire (light green)
To metallic body or chassis of the car
Parking brake switch (inside the car)
Parking brake
Parking brake wire (light green)
Wire connecting the battery and the parking brake switch.
Attach the parking brake wire to this point.
Contact the metallic part of the crimp to the wires inside.
Pinch the crimp firmly.
Connecting the external components
F
iPod is a trademark of Apple Inc., registered in the U.S. and other countries.
To disconnect the connector
Hold the connector tightly ( 1 ), then pull it out ( 2 ) .
External component
E
Audio/video control amplifier or the decoder
compatible with the multichannel digital sources
KV-MR9010
9-INCH WIDESCREEN MONITOR *
6
Digital optical cable *
6
(only for DVD playback)
Video cord *
6
Signal cord *
6
Required connections for DVD/AV-IN (video) playback
CD changer jack
A KS-BTA200
B *
8
CD-CH / KS-PD100 / KS-U57 / KS-U58
When connecting two components in series
When connecting the external components, refer also to the manuals supplied for the components and
adapters.
CAUTION:
Before connecting the external components, make sure that the unit is turned off.
You can connect the following JVC components to the CD changer jack.
JVC component Model name
CD changer (CD-CH) CH-X1500, etc.
You can also connect the following components through the various JVC adapters.
• Connection cords may need to be purchased separately.
Component Adapter Model name
Bluetooth device Bluetooth adapter KS-BTA200
iPod Interface adapter for iPod KS-PD100
Portable audio player with line output jacks Line input adapter KS-U57
Portable audio player with 3.5 mm stereo
mini jack
AUX input adapter KS-U58
When connecting more than one component (maximum: two), it is recommended that you connect the
components in series as explained on the right column.
You can also connect an external component to the LINE IN terminals on the rear of the unit using a signal cord (not supplied).
Signal cord *
6
LINE IN terminals
*
6
Not supplied for this unit.
*
7
To listen to disc playback sound while in Dual Zone operations (see page 25 of INSTRUCTIONS).
*
8
To use these components, set the external input setting correctly (see page 42 of the INSTRUCTIONS).
KS-HP2 *
6
Cordless headphones *
7
or
Rear side
*
8
