24
ENGLISH

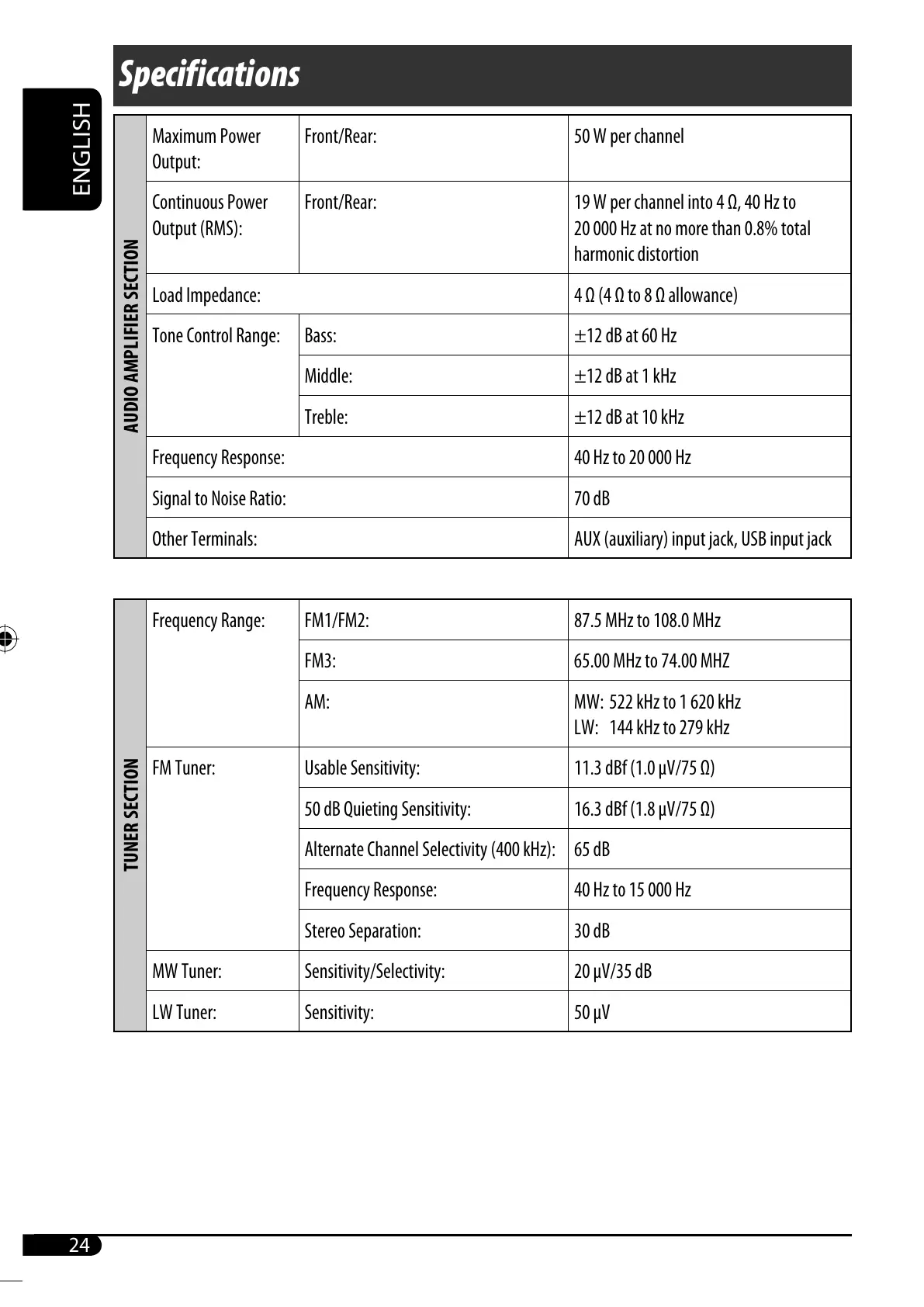

Specifications
AUDIO AMPLIFIER SECTION
Maximum Power
Output:
Front/Rear: 50 W per channel
Continuous Power
Output (RMS):
Front/Rear: 19 W per channel into 4 Ω, 40 Hz to
20 000 Hz at no more than 0.8% total
harmonic distortion
Load Impedance: 4 Ω (4 Ω to 8 Ω allowance)
Tone Control Range: Bass: ±12 dB at 60 Hz
Middle: ±12 dB at 1 kHz
Treble: ±12 dB at 10 kHz
Frequency Response: 40 Hz to 20 000 Hz
Signal to Noise Ratio: 70 dB
Other Terminals: AUX (auxiliary) input jack, USB input jack
TUNER SECTION
Frequency Range: FM1/FM2: 87.5 MHz to 108.0 MHz
FM3: 65.00 MHz to 74.00 MHZ
AM: MW: 522 kHz to 1 620 kHz
LW: 144 kHz to 279 kHz
FM Tuner: Usable Sensitivity: 11.3 dBf (1.0 μV/75 Ω)
50 dB Quieting Sensitivity: 16.3 dBf (1.8 μV/75 Ω)
Alternate Channel Selectivity (400 kHz): 65 dB
Frequency Response: 40 Hz to 15 000 Hz
Stereo Separation: 30 dB
MW Tuner: Sensitivity/Selectivity: 20 μV/35 dB
LW Tuner: Sensitivity: 50 μV
