ENGLISH
17
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
STEERING
WHEEL
REMOTE
KD-R761 / KD-R661 Other models

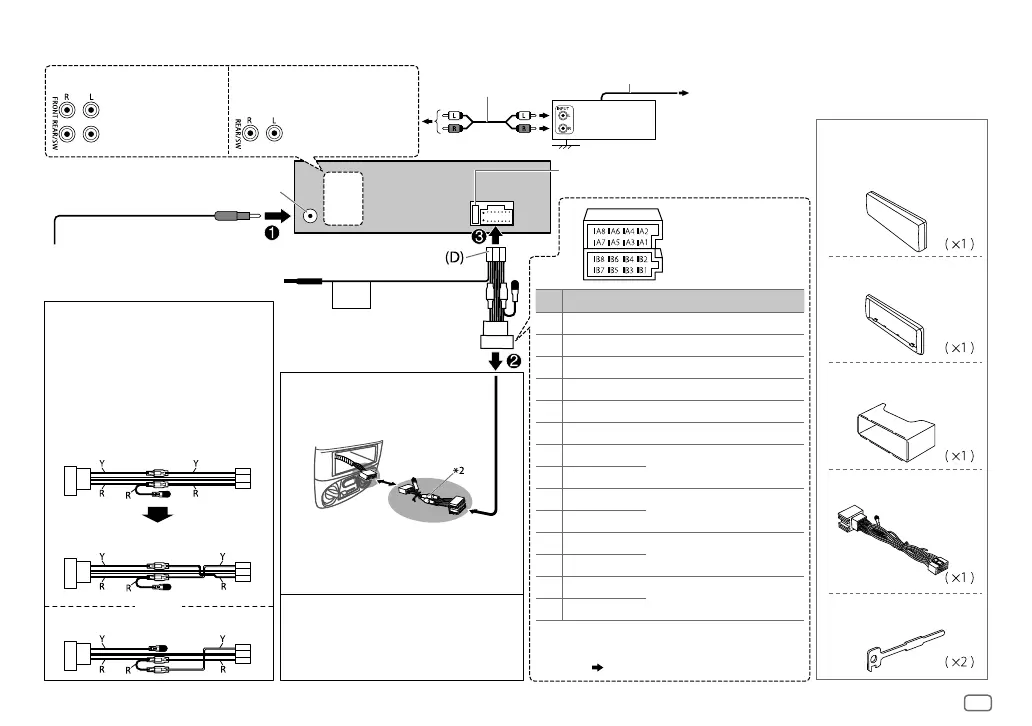

Wiring connection
Light blue/yellow
Signal cord
(not supplied)
Remote wire
(not supplied)
To the steering wheel
remote control adapter
Fuse (10A)
To Blue/white wire of
the wiring harness
(D)
Antenna terminal
IMPORTANT:
A custom wiring harness
(separately purchased) which is suitable for
your car is recommended for connection.
If your car does NOT have an ISO
terminal
( or )
ISO connector
*
2
Custom wiring harness (separately
purchased)
For some VW/Audi or Opel (Vauxhall)
automobiles
You may need to modify the wiring of the
supplied power cord
(D)
as illustrated.
If the unit does not turn on with modified
wiring 1, use modified wiring 2 instead.
Y: Yellow R: Red
Original wiring
Modified wiring 1
Modified wiring 2
Pin
Color and function
A2 Brown : Mobile phone system
A4 Yellow : Battery
A5 Blue/White : Power control
A6 Orange/white : Car light control switch
A7 Red : Ignition (ACC)
A8 Black : Earth (ground) connection
B1 Purple
ª
: Rear speaker (right)
B2 Purple/black
·
B3 Gray ª
: Front speaker (right)
B4 Gray/black
·
B5 White ª
: Front speaker (left)
B6 White/black
·
B7 Green ª
: Rear speaker (left)
*
3
B8 Green/black ·
*
3
You can also connect a subwoofer speaker directly
without an external subwoofer amplifier. For
setting,
11
.
Front output
Rear/subwoofer output
Rear/subwoofer output
Part list for
installation
(A)
Faceplate
(C)
Mounting sleeve
(B)
Trim plate
(D)
Wiring harness
(E)
Extraction key
*
1
Firmly connect the ground
wire of the amplifier to
the car’s chassis to avoid
damaging the unit.
JVC Amplifier
*
1
JS_JVC_KD_R761_E_EE_EN_3.indd 17JS_JVC_KD_R761_E_EE_EN_3.indd 17 22/7/2014 9:46:06 AM22/7/2014 9:46:06 AM
