DISPLAY SETTINGS

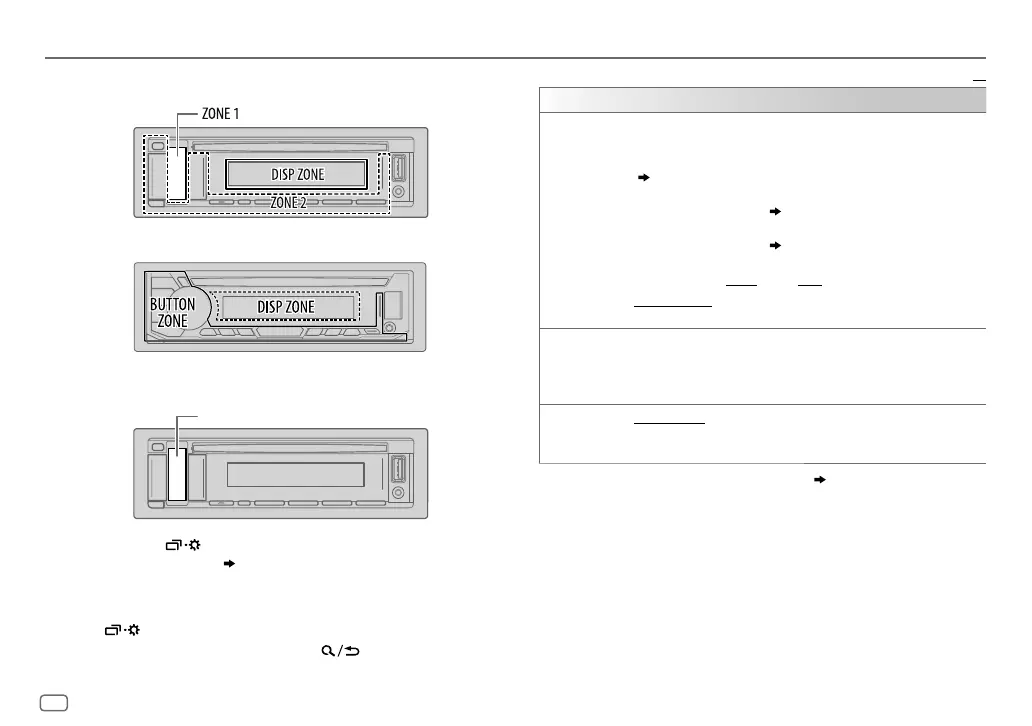

Zone identification for brightness setting
KD-R691/KD-R491
KD-R499/KD-R494/KD-R492
Zone identification for color setting
KD-R691/KD-R491
1 Press and hold .
2 Perform 'select an item
( 3
or
4)
' operation to select an item
(see the following table).
3 Repeat step 2 until the desired item is selected/activated or follow
the instructions stated on the selected item.
4 Press to exit.
To return to the previous setting item, press .
Default:
XX
DISPLAY
DIMMER
Dim the illumination.
OFF
:Dimmer is turned off. Brightness changes to
[DAY]
setting.
ON
:Dimmer is turned on. Brightness changes to
[NIGHT]
setting.
(
[BRIGHTNESS]
)
DIMMER TIME
:Set the dimmer on and off time.
1
Perform ‘select an item
( 3
or
4)
’ operation to adjust the
[ON]
time.
2
Perform ‘select an item
( 3
or
4)
’ operation to adjust the
[OFF]
time.
(Default:
[ON]
:
18:00
;
[OFF]
:
6:00
)
DIMMER AUTO
:Dimmer turns on and off automatically when you turn
off or on the car headlights.
*
1
BRIGHTNESS
Set the brightness for day and night separately.
1
DAY
/
NIGHT
:Select day or night.
2
Select a zone. (See the illustration.)
3
LEVEL 00
to
LEVEL 31
: Set the brightness level.
TEXT SCROLL
*
2
SCROLL ONCE
:Scrolls the display information once.;
SCROLL AUTO
:Repeats scrolling at 5-second intervals.;
SCROLL OFF
:Cancels.
*
1
The illumination control wire connection is required.
( 20)
*
2
Some characters or symbols will not be shown correctly (or will be blanked).
(Symbolic button)
Symbolic button
