15
ENGLISH |
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)

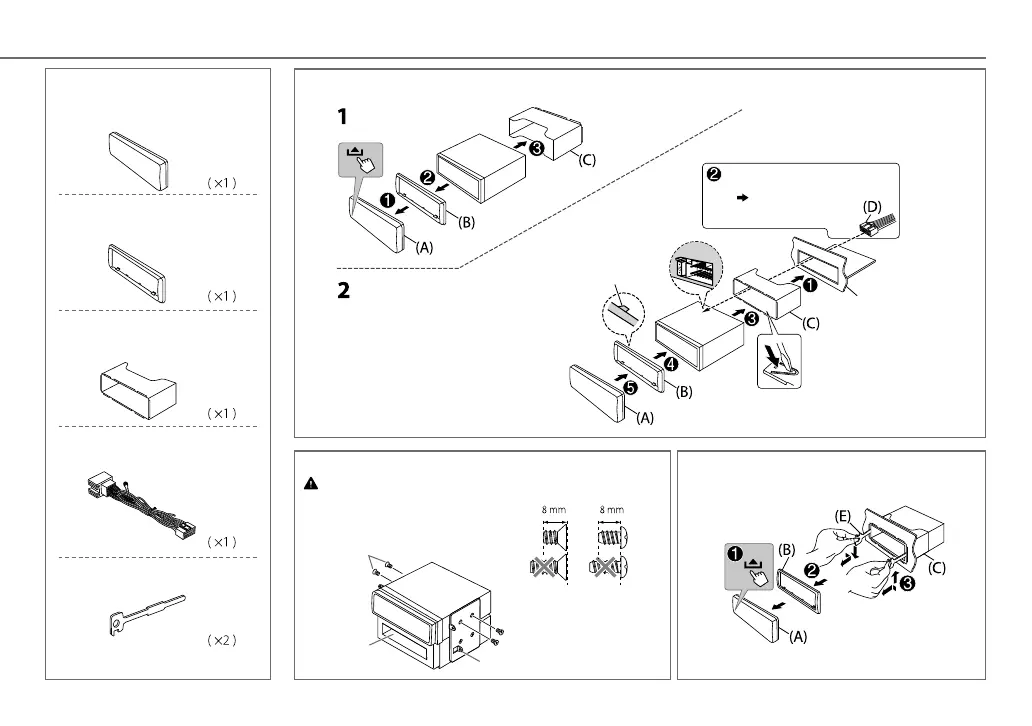

How to remove the unit
Bracket (not supplied)
Pocket
Flat or round head screws
(not supplied) M5 × 8mm
Installing the unit (in-dash mounting)
Do the required wiring.
(
16)
Bend the appropriate tabs to
hold the sleeve firmly in place.
Hook on the top side
Orientate the trim plate as
illustrated before fitting.
Dashboard of
your car
When installing without the mounting sleeve
Use only the specified screws. Using wrong screws might damage the
unit.
INSTALLATION / CONNECTION
Part list for installation
(A)
Faceplate
(C)
Mounting sleeve
(B)
Trim plate
(D)
Wiring harness
(E)
Extraction key
EN_KD-R757_R751[EE_E]2.indd 15EN_KD-R757_R751[EE_E]2.indd 15 9/25/2013 12:27:01 PM9/25/2013 12:27:01 PM
