STEERING
WHEEL
REMOTE
KD-R757 / KD-R751 Other models

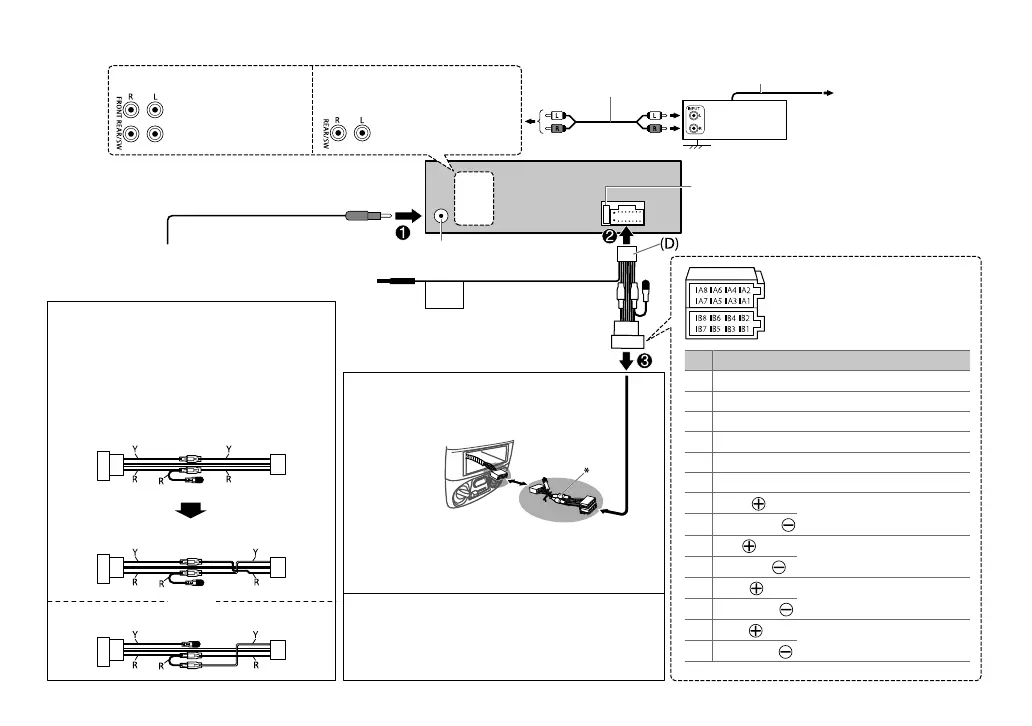

Wiring connection
Light blue/yellow
(Not available for
KD-R457
)
Signal cord
(not supplied)
Remote wire
(not supplied)
To the steering wheel
remote control adapter
Fuse (10A)
To Blue/white wire of the
wiring harness
(D)
Aerial terminal
JVC Amplifier
Front output
Rear/subwoofer output
Rear/subwoofer output
IMPORTANT:
A custom wiring harness (separately purchased)
which is suitable for your car is recommended for connection.
If your car does NOT have an ISO terminal
( or )
ISO connector
* Custom wiring harness (separately purchased)
For some VW/Audi or Opel (Vauxhall) automobiles
You may need to modify the wiring of the supplied
power cord
(D)
as illustrated.
If the unit does not turn on with modified wiring 1, use
modified wiring 2 instead.
Y: Yellow R: Red
Original wiring
Modified wiring 1
Modified wiring 2
Pin
Color and function
A2 Brown : To mobile phone system
A4 Yellow : Battery
A5 Blue/White : Power control
A6 Orange/white : Car light control switch
A7 Red : Ignition (ACC)
A8 Black : Earth (ground) connection
B1
Purple
: Rear speaker (right)
B2
Purple/black
B3
Gray
: Front speaker (right)
B4
Gray/black
B5
White
: Front speaker (left)
B6
White/black
B7
Green
: Rear speaker (left)
B8
Green/black
