3.2.3 Removing the DET switch
(See Figs.6 and 7)
(1) Extend the two tabs c of the feed sw. holder and pull out
the switch.
(2) Unsolder the DET switch wire if necessary.

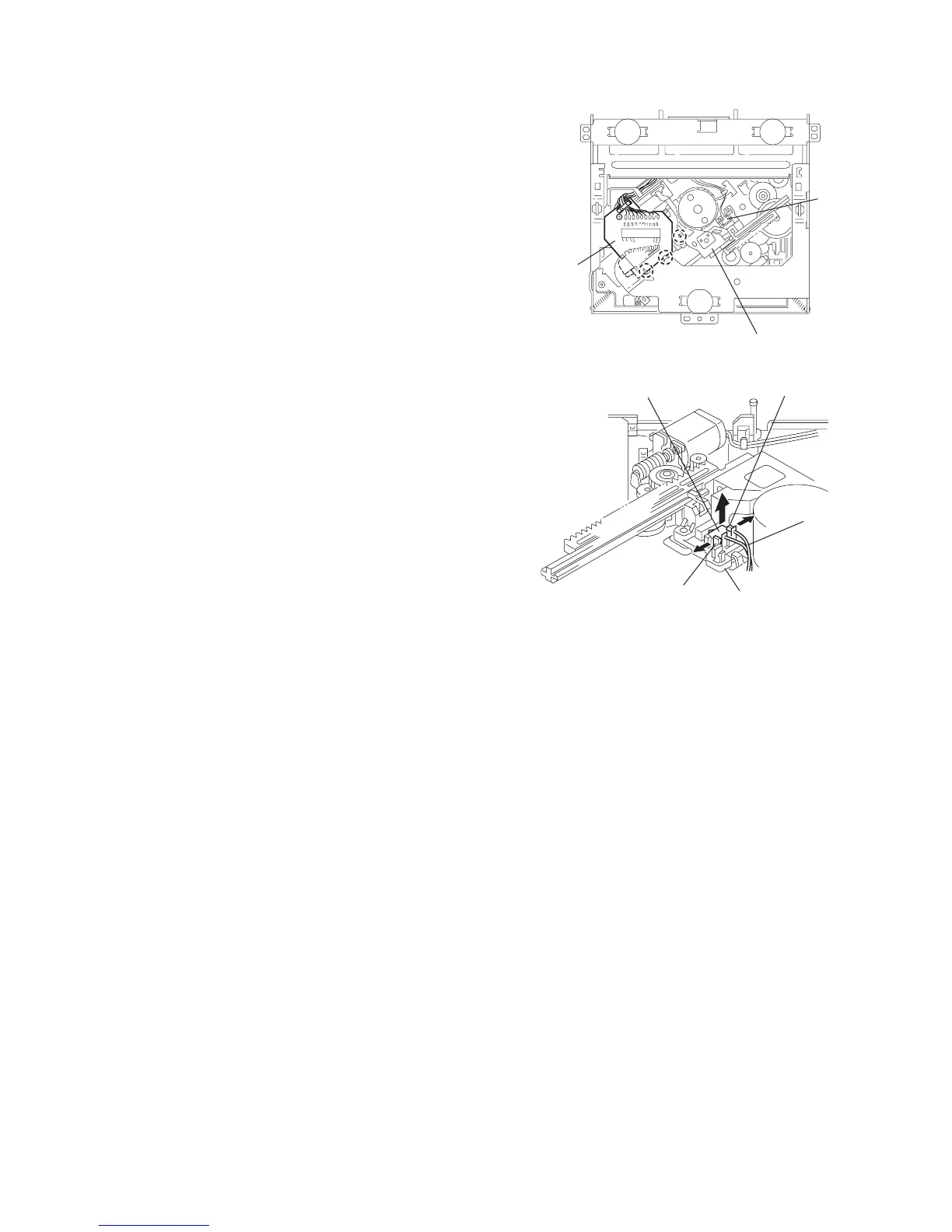

Fig.6
Fig.7
Connector
board
DET switch
Pickup
DET switch
Tab c
Tab c
DET switch wire
Feed sw. holder
