12
ENGLISH
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
Speaker output settings [SPK/PREOUT]
Select the output setting for the speakers [SPK/PRE OUT] , based on the speaker
connection method.
Connection via lineout terminals
For connections through an external amplifier. (Page 18)
Setting on
[SPK/PRE OUT]
Audio signal through lineout terminal
FRONT REAR/SW
[REAR/REAR] Front speakers output Rear speakers output
[REAR/SUB.W] (default) Front speakers output Subwoofer output
[SUB.W/SUB.W] Front speakers output Subwoofer output
Connection via speaker leads
You can also connect the speakers without using an external amplifier
but still being able to enjoy the subwoofer output with these settings.
(Page 18)
Setting on
[SPK/PRE OUT]
Audio signal through rear speaker lead
L (left) R (right)
[REAR/REAR] Rear speakers output Rear speakers output
[REAR/SUB.W] Rear speakers output Rear speakers output
[SUB.W/SUB.W] Subwoofer output (Mute)
If [SUB.W/SUB.W] is selected:
– [FRQ120HZ] is selected in [SUBWOOFERLPF] and [FRQ THROUGH] is not available.
(Page 11)
– [POSITION R01] is selected in [FADER] and selectable range is [POSITION R06] to
[POSITION 00]. (Page 11)
Audio Settings Display Settings

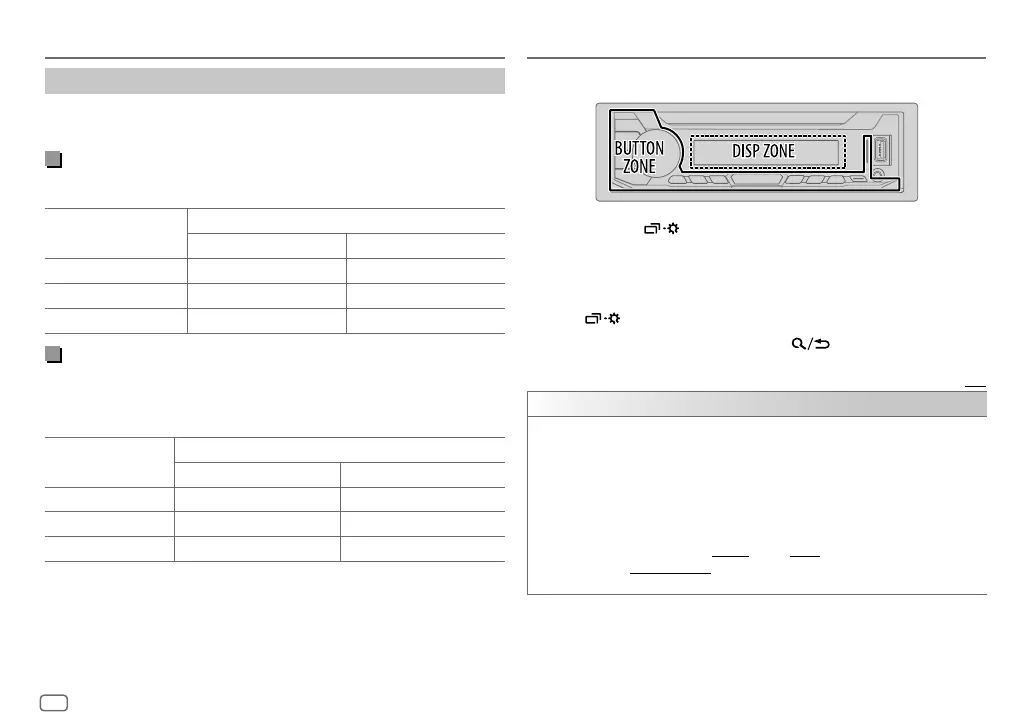

Zone identification for brightness settings
1 Press and hold .
2 Turn the volume knob to select an item (see the following table), then
press the knob.
3 Repeat step 2 until the desired item is selected/activated or follow the
instructions stated on the selected item.
4 Press to exit.
To return to the previous setting item, press
.
Default: [XX]
[DISPLAY]
[DIMMER]
Dims the illumination.
[OFF]: Dimmer is turned off. Brightness changes to [DAY] setting.
[ON]: Dimmer is turned on. Brightness changes to [NIGHT] setting.
(See “[BRIGHTNESS]” on page 13.)
[DIMMER TIME]: Set the dimmer on and off time.
1 Turn the volume knob to adjust the [ON] time, then press the knob.
2 Turn the volume knob to adjust the [OFF] time, then press the knob.
(Default: [ON]: [18:00] ; [OFF]: [6:00])
[DIMMER AUTO]: Dimmer turns on and off automatically when you turn off
or on the car headlights.*1
