JVC KD-X560BT Quick Start Guide

13
English |

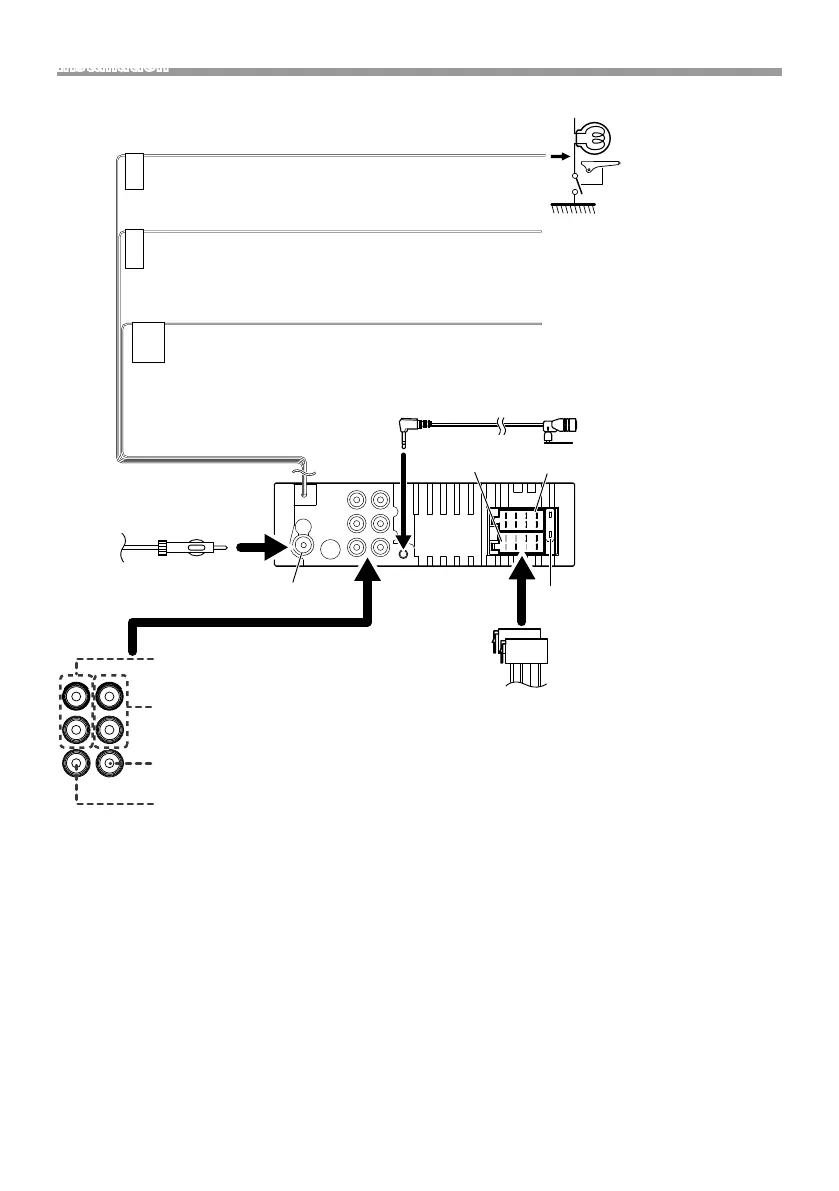

Installation
Continued on the next page...
15A
PRK SW
REVERSE
STEERING WHEEL REMOTE INPUT
2 4 6 8
1 3 5 7
2 4 6 8
1 3 5 7
Connect to the
vehicle’s parking brake
detection switch
harness.
For best safety, be sure to connect the parking
sensor.
Light Green (Parking sensor wire)
Purple/White (Reverse sensor wire)
Accessory 5:
Bluetooth Microphone
To steering remote
To use the steering wheel remote control feature, you need an exclusive
remote adapter (not supplied) matched to your car.
Connect to vehicle’s reverse lamp harness when using the
optional rear view camera.
Light Blue/Yellow (Steering remote control wire)
Fuse (15A)FM/AM antenna input
FM/AM antenna
Connector A
Connector B
Accessory 7
Accessory 6
Rear Audio Preout
(Left; White, Right; Red)
Front Audio Preout
(Left; White, Right; Red)
Subwoofer Preout (Blue)
Rear view camera input (Yellow)
B5K-0634-10_K_EnFrEs.indb 13 2019/03/05 20:36

JVC KD-X560BT Specifications

General

Dimmer	Yes
DIN size	1 DIN
Output power	180 W
Product color	Black
Volume control	Rotary
Disc types supported	No
Audio output channels	- channels
Maximum power per channel	16 W
Bluetooth version	3.0+HS
Bluetooth profiles	A2DP, AVRCP
USB ports quantity	1
Aspect ratio	16:9
Display diagonal	3 \
Illumination color	Blue
Audio formats supported	AAC, MP3, WAV, WMA
Image formats supported	BMP, JPG, PNG
Video formats supported	AVI, H.264, MPEG1, MPEG2, MPEG4
Hands-free calling	Keep your hands on wheel with Bluetooth™ Hands-free calling. After pairing your compatible Bluetooth mobile phone to your TomTom GPS, you’ll be able to see incoming call information, make and answer calls, and talk hands-free through your device. You’ll e
FM band range	87.9 - 107.9 MHz
Supported radio bands	AM, FM
Preset stations quantity	30
Package weight	1180 g

Weight and Dimensions

Depth	52 mm
Width	182 mm
Height	117 mm
Weight	750 g
