JVC KD-X561DBT User Manual

12

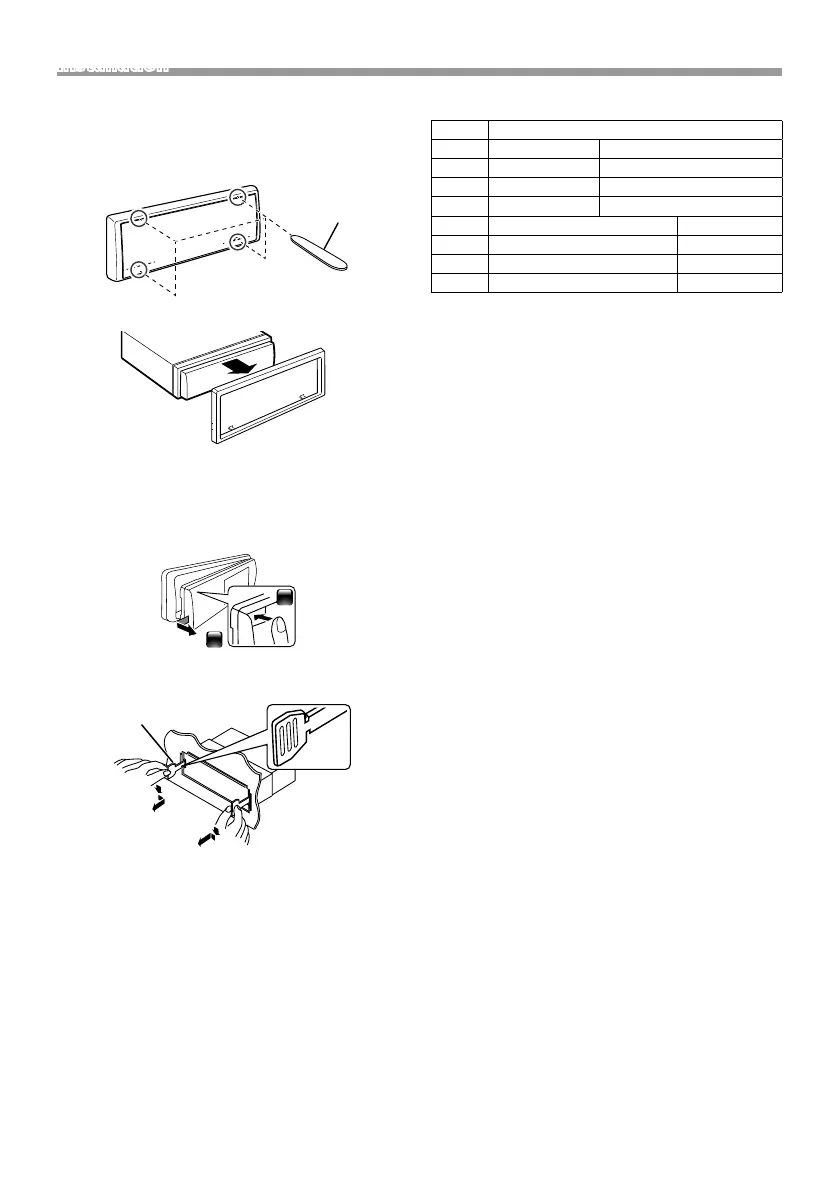

Installation
Ñ Removing the trim plate
1) Use the extraction key (accessory 4) to lever out
the four tabs (two on the top part, two on the
bottom part).
4
2) Pull the trim plate forward.
Ñ Removing the unit
1) Remove the trim plate by referring to step 1 in
“Removing the trim plate”.
2) Detach the faceplate.
1
2
3) Insert the two extraction key (accessory 3) deeply
into the slots on each side, as shown.
3
4) Lower the removal tool toward the bottom, and
pull out the unit halfway while pressing towards
the inside.
✎ NOTE
• Be careful to avoid injury from the catch pins on
the extraction key.
5) Pull the unit all the way out with your hands, being
careful not to drop it.
Ñ Wiring harness connector function guide
Pin Color and function
A-4 Yellow Battery
A-5 Blue/White
[1]
Power Control
A-7 Red Ignition (ACC)
A-8 Black Earth (Ground) Connection
B-1/ B-2 Purple (+) / Purple/Black (–) Rear Right
B-3/ B-4 Gray (+) / Gray/Black (–) Front Right
B-5/ B-6 White (+) / White/Black (–) Front Left
B-7/ B-8 Green (+) /
Green/Black (–) Rear Left
• Speaker Impedance: 4-8 Ω
[1]
Max. 150mA, 12V
! CAUTION
Before you connect the commercially available
ISO connectors to the unit, check the following
condition:
• Make sure that the pin assignment of the connector
matches with the JVC unit.
• Take extra notice of the power wire.
• In case battery wire and ignition wire are not
corresponding then change them accordingly.
• In case the car does not have an ignition wire, use a
commercially available interface.
B5K-0634-21_E_EnFrDeNlItEsPtRu.indb 12 2019/04/17 8:19

JVC KD-X561DBT Specifications

General

DIN size	1 DIN
Output power	180 W
Product color	Black, Blue
Ready for iPod	Yes
Disc types supported	No
Audio output channels	- channels
Equalizer bands quantity	13
Maximum power per channel	16 W
Bluetooth version	3.0+HS
USB port position	Front
Bluetooth profiles	A2DP, AVRCP, PBAP
USB ports quantity	1
FM band range	87.9 - 108 MHz
Supported radio bands	AM, DAB+, FM
Preset stations quantity	30
Hands-free calling	Keep your hands on wheel with Bluetooth™ Hands-free calling. After pairing your compatible Bluetooth mobile phone to your TomTom GPS, you’ll be able to see incoming call information, make and answer calls, and talk hands-free through your device. You’ll e
Audio formats supported	AAC, FLAC, MP3, WMA
Image formats supported	BMP, JPEG, PNG
Video formats supported	AVI, H.264, MPEG1, MPEG2, MPEG4
Display diagonal	3 \
Illumination color	Blue
Package weight	1180 g

Weight and Dimensions

Depth	52 mm
Width	182 mm
Height	117 mm
Weight	750 g
