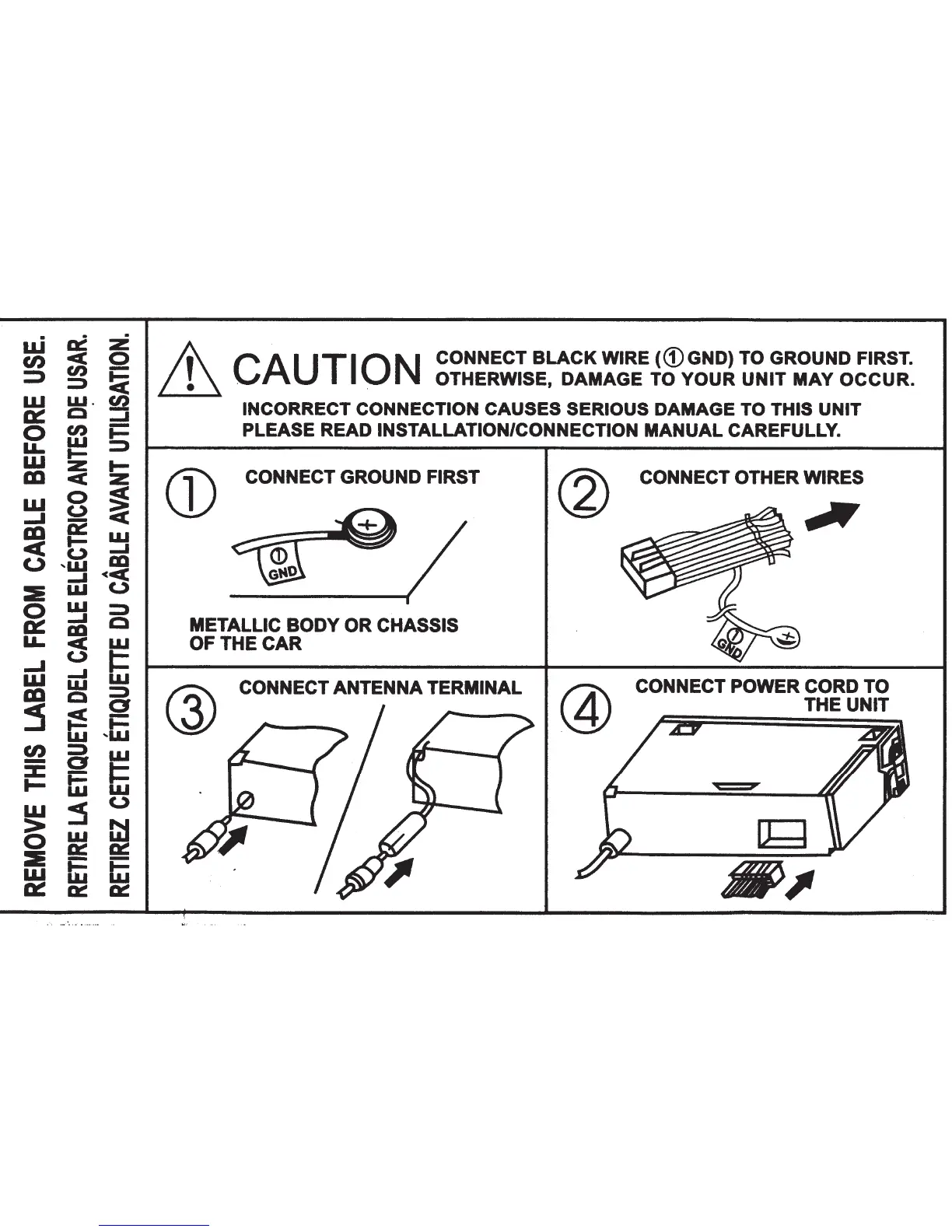

1.\
CAUTION CONNECT
BLACK
WIRE
((i)GND)
TO GROUND FIRST.
~
. · . OTHERWISE, DAMAGE TO YOUR
UNIT
MAY
OCCUR.
INCORRECT CONNECTION CAUSES SERIOUS DAMAGE TO THIS UNIT
PLEASE READ INSTALLATION/CONNECTION
MANUAL
CAREFULLY.
CD
CONNECT GROUND FIRST
METALLIC
BODY
OR CHASSIS
OF THE CAR
@
CONNECT OTHER WIRES
CONNECT POWER CORD TO
THE UNIT

Table of Contents

Other manuals for JVC KW-AV50

Preview: Specification Sheet
Specification Sheet2 pages
Preview: Installation & Connection Manual
Installation & Connection Manual6 pages

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the JVC KW-AV50 and is the answer not in the manual?

JVC KW-AV50 Specifications

General IconGeneral
MP3 playbackYes
Audio formats supportedMP3, WAV, WMA
Image formats supportedJPG
Video formats supportedDIVX
Tuner typeHS-IVi
FM band range87.5 - 108 MHz
LW band range153 - 279 kHz
Supported radio bandsFM, LW, MW
Preset stations quantity24
Output power50 W
Product colorBlack
Disc types supportedCD-R, CD-RW, DVD+R, DVD+RW, DVD-R, DVD-RW
Audio output channels4.0 channels
Equalizer bands quantity3
Display diagonal6.1 \
Display resolution800 x 480 pixels
BluetoothNo
Bluetooth profilesA2DP, AVRCP
Input frequency40 - 20000 Hz
Weight and Dimensions IconWeight and Dimensions
Weight2300 g
Dimensions (WxDxH)182 x 10 x 117 mm
