11
ENGLISH |
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
KW-R710 KW-R510
1 Press and hold MENU.
2 Turn the volume knob to make a selection (see the following
table), then press the knob.
Repeat step
2 until the desired item is selected.
3 Press MENU to exit.
To return to the previous setting item or hierarchy, press GT/P.
Default:
XX
DISPLAY
DIMMER
Selects the display and button illumination adjusted in the
[BRIGHTNESS]
setting.
AUTO
:Changes between the day and night adjustments when you turn
off or on the car headlights. *
1
;
ON
:Selects the night adjustments.;
OFF
:Selects the day adjustments.
BRIGHTNESS
Sets the button, display and USB input terminal brightness for day and
night separately.
1
DAY
/
NIGHT
:Select day or night.
2
Select a zone for setting.

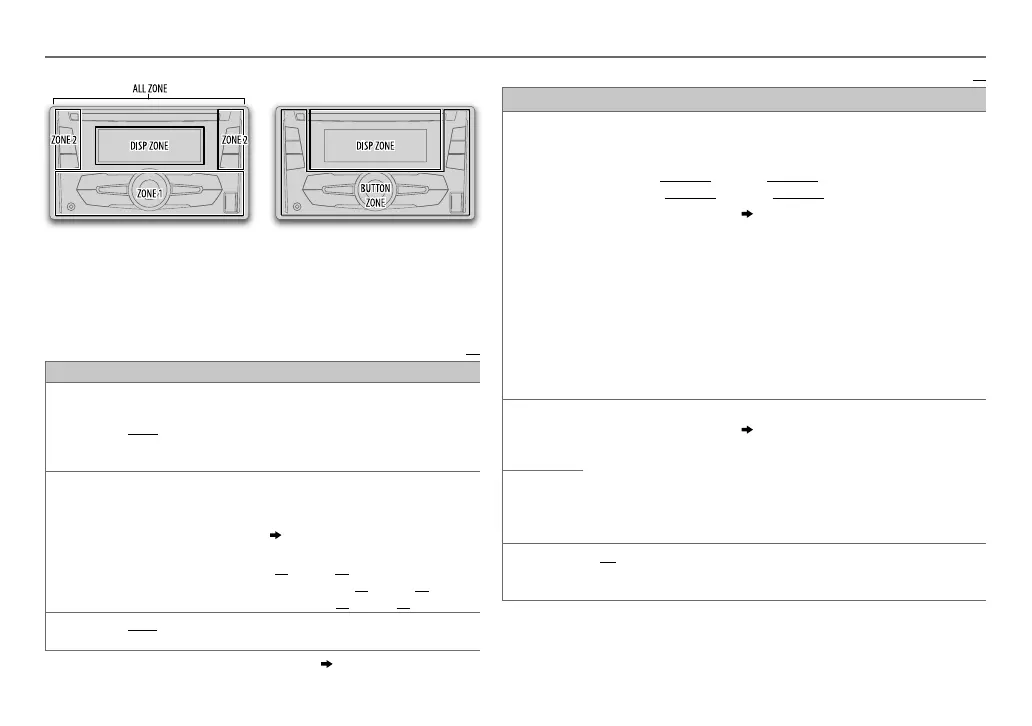

( Illustration above)
3
Set the brightness level (
00
to
31
).
(Default:
KW-R710
:
DAY
:
31
;
NIGHT
:
11
KW-R510
:
BUTTON ZONE
:
DAY
:
25
;
NIGHT
:
09
DISP ZONE
:
DAY
:
31
;
NIGHT
:
12
)
SCROLL
*
2
ONCE
:Scrolls the display information once.;
AUTO
:Repeats scrolling at
5-second intervals.;
OFF
:Cancels.
*
1
The illumination control wire connection is required.
( 16)
*
2
Some characters or symbols will not be shown correctly (or will be blanked).
DISPLAY SETTINGS
Default:
XX
COLOR
(for
KW-R710
)
PRESET
You can select a color for [
ALL ZONE
], [
ZONE 1
], [
DISP ZONE
], or [
ZONE 2
]
separately. For [
ALL ZONE
], you can also select a color pattern.
Default color:
ALL ZONE
: [
COLOR 06
],
ZONE 1
: [
COLOR 06
],
DISP ZONE
: [
COLOR 01
],
ZONE 2
: [
COLOR 27
]
1
Select a zone for setting.
( Illustration on left column)
2
Select a color for the selected zone.
•
COLOR 01
to
COLOR 29
•
USER
: The color you have created for [
DAY COLOR
] or [
NIGHT COLOR
] is
shown.
•
COLOR FLOW 01
to
COLOR FLOW 03
: Color changes at different speeds.
•
SPECTRUM
/
GROOVE
/
TECHNO
/
EMOTION
/
RELAX
/
NIGHT SWEEP
: The
selected color pattern is shown.* (Selectable only when [
ALL ZONE
] is
selected in step
1
.)
* If one of these color pattern is selected, the [
ZONE 1
], [
DISP ZONE
], [
ZONE 2
]
illumination color will change to the default color.
DAY COLOR
Store your own day and night colors for different zone.
1
Select a zone for setting.
( Illustration on left column)
2
RED
/
GREEN
/
BLUE
:Select a primary color.
3
00
to
31
:Select the level.
Repeat steps
2
and
3
for all the primary colors.
• Your setting is stored to
[USER]
in
[PRESET]
.
• If
[00]
is selected for all primary colors for
[DISP ZONE]
, nothing appears on
the display.
NIGHT COLOR
COLOR GUIDE
ON
:Changes the button, display and USB input terminal illumination when
settings are performed on menu and list search. Display zone will automatically
change depending on volume level.;
OFF
:Cancels.
[NIGHT COLOR]
or
[DAY COLOR]
is changed by turning on or off your car’s
headlight.
JS_JVC_KW-R710_E_03_EN.indd 11JS_JVC_KW-R710_E_03_EN.indd 11 12/4/2013 10:19:25 AM12/4/2013 10:19:25 AM
