JVC KW-V10 User Manual

0

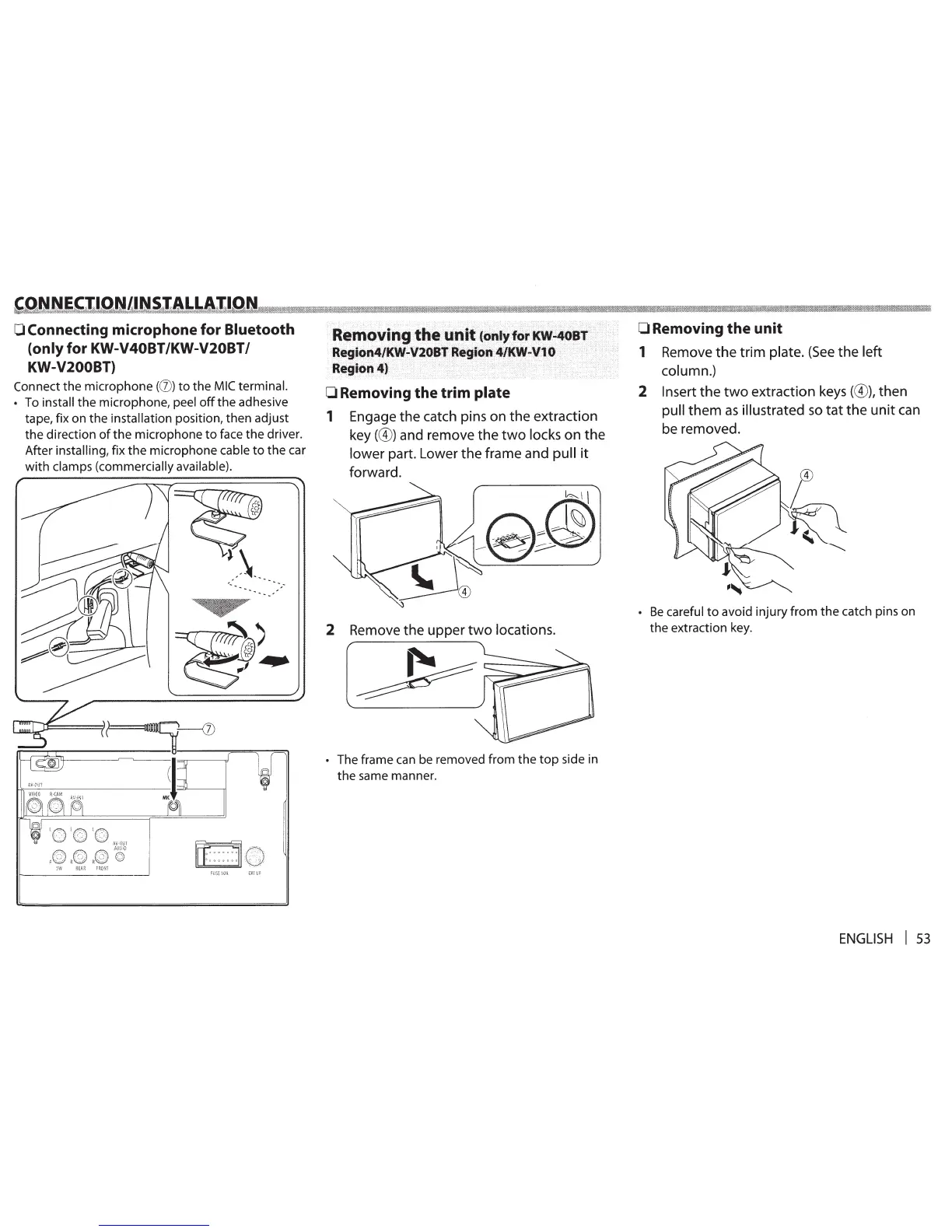

Connecting
microphone for Bluetooth
(only for
KW-V40BT/KW-V20BT/
KW-V200BT}
Connect the microphone
(
Cl)
)
to
the
MIC
terminal.
•
To install
the microphone, peel
off
the adhesive
tape, fix on the
installation
position, then adjust
the direction
of
the microphone
to
face the driver.
After installing, fix the microphone cable
to
the car
with
clamps (commercially available).
0
Removing the trim
plate
1
Engage the catch pins on the extraction
key
(@)
and remove the
two
locks
on
the
lower
part. Lower the frame and
pull
it
forward.
2 Remove the upper
two
locations.
•
The frame
can
be
removed from the
top
side in
the same manner.
0
Removing
the
unit
1
Remove
the
trim
plate.
(See
the
left
column.)
2
Insert
the
two
extraction keys(@), then
pull them
as
illustrated
so
tat
the
unit
can
be removed.
..,
•
Be
careful
to
avoid injury from the catch pins on
the extraction
key.
ENGLISH
I
53
