Connection/Installation
97English

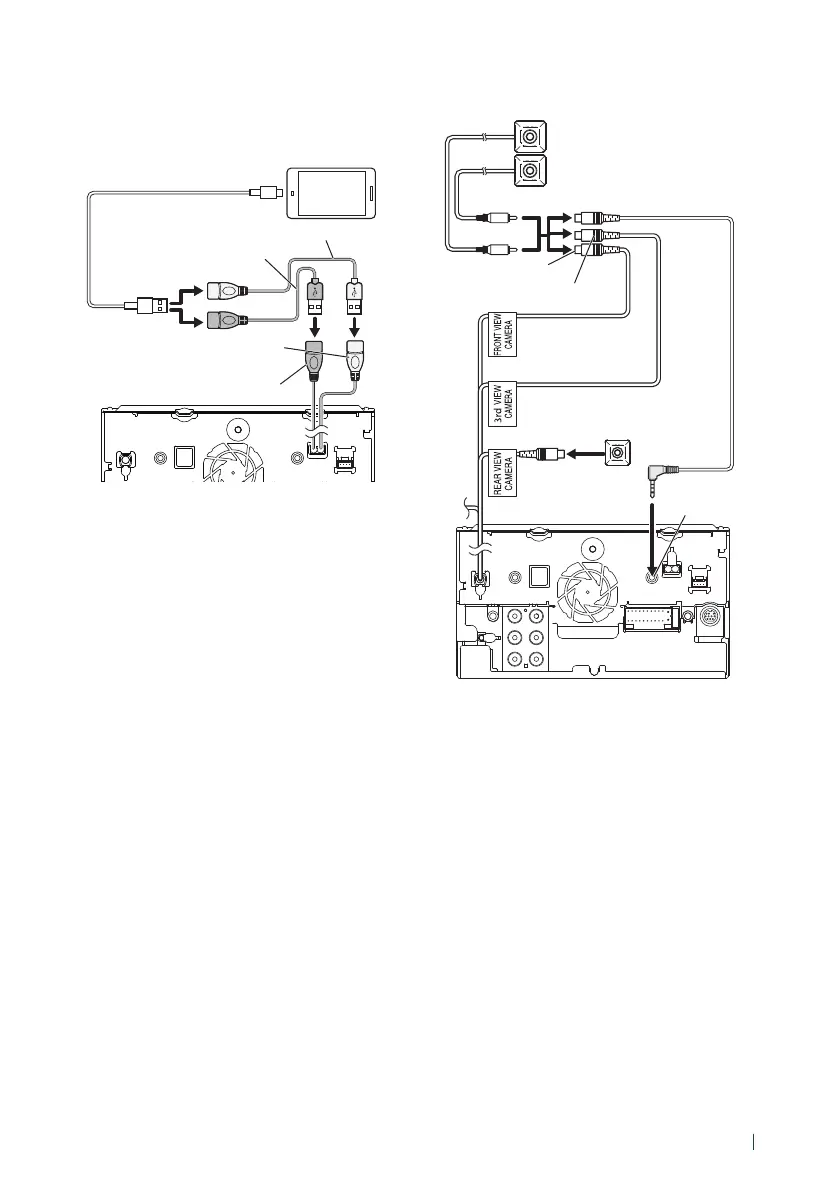

Ñ Connecting an Android
smartphone
Micro USB to USB cable
[2]
Android smartphone
[2]
USB (Gray) terminal
[1] [4]
USB (Black) terminal
[1]
Accessory 2 (Black) (1 m)
[3]
Accessory 3 (Gray) (1 m)
[3]
[1]
USB maximum power supply current :
DC 5 V = 1.5 A
[2]
Sold separately
[3]
See Securing the USB extension cable
(P.96).
[4]
USB (Gray) terminal does not support USB
Mirroring.
Ñ Connecting the camera
[2]
Front view camera
[1]
Left side view camera and
Right side view camera
[1]
Accessory 9
AV-IN input
Rear view camera
input (Yellow)
Front view camera
input (Yellow)
3rd view camera
input (Yellow)
Rear view camera
[1]
[1]
Sold separately
[2]
See Camera Assignment Settings (P.56).
