JVC LT-22HD32U User Manual

10
100 mm
M4 x 10
100 mm
(L)
(M)
(K)
(H)
(I)
(J)
(A)
(B)
(C)
(D)
(E)
(F)
(G)
(N)
Antenna connection
Note: Before you connect other appliances:
To avoid potentially damaging your set, make sure all items are switched off and disconnected from the
mains power when you make the connections.
Arrange the desired connection.
When you have finished making the connections, reconnect the mains power to the unit and switch it
back on.
Connect your antenna as shown below (A). Connections to other equipment is explained further on
P.35~36. If you have problems with reception, consult a specialist of antenna.
•
•
•
(A)
Antenna: Connect an antenna.
The built-in tuner receives all analogue cable programmes and DVB-T/-C channels.
(B) DIGITAL AUDIO COAXIAL output: digital audio output
(C) AV/COMPONENT input: Input for analogue AV-Signal/Component-Signal. See P.35, 36
Note: AV-AUDIO input is sharing with COMPONENT AUDIO input.
(D) USB input: See P.22-24.
(E) Scart socket: For the connection of scart cable. See P.36.
(F) C.I. slot: for CA- module (CAM) (if PayTV-provider supports this).
Note: To prevent malfunctions and damages, be sure to turn off the TV before inserting or removing
the CAM card.
(G) HEADPHONE jack: Plug headphones with a mini plug (3.5 mm) into this jack.
(H) PC-INPUT (PC): See P.35.
(I) PC/DVI AUDIO input: See P.35.
(J) HDMI/DVI input: See P.35.
(K) Power supply: Connect the supplied power cable to an AC 220-240V/50Hz mains power supply only
- do not attempt to connect it to any other type of supply. Never try to repair a damaged AC power cord
with isolation-tape - this should be repaired by a specialist or replaced. Do not let your pet loose near
the cable. Animals biting into the cable could receive a fatal electric shock, and could cause a hazard
to others.
(L) Bracket holes: Fix a wall mounting bracket (not supplied) here.
(M) To hang the television on a wall, remove these screws and then remove the stand.
Before performing work spread cushioning over an area to lay the TV on.
(N) Service connector cover: Please do not open this cover. There is a socket only for service purpose inside.

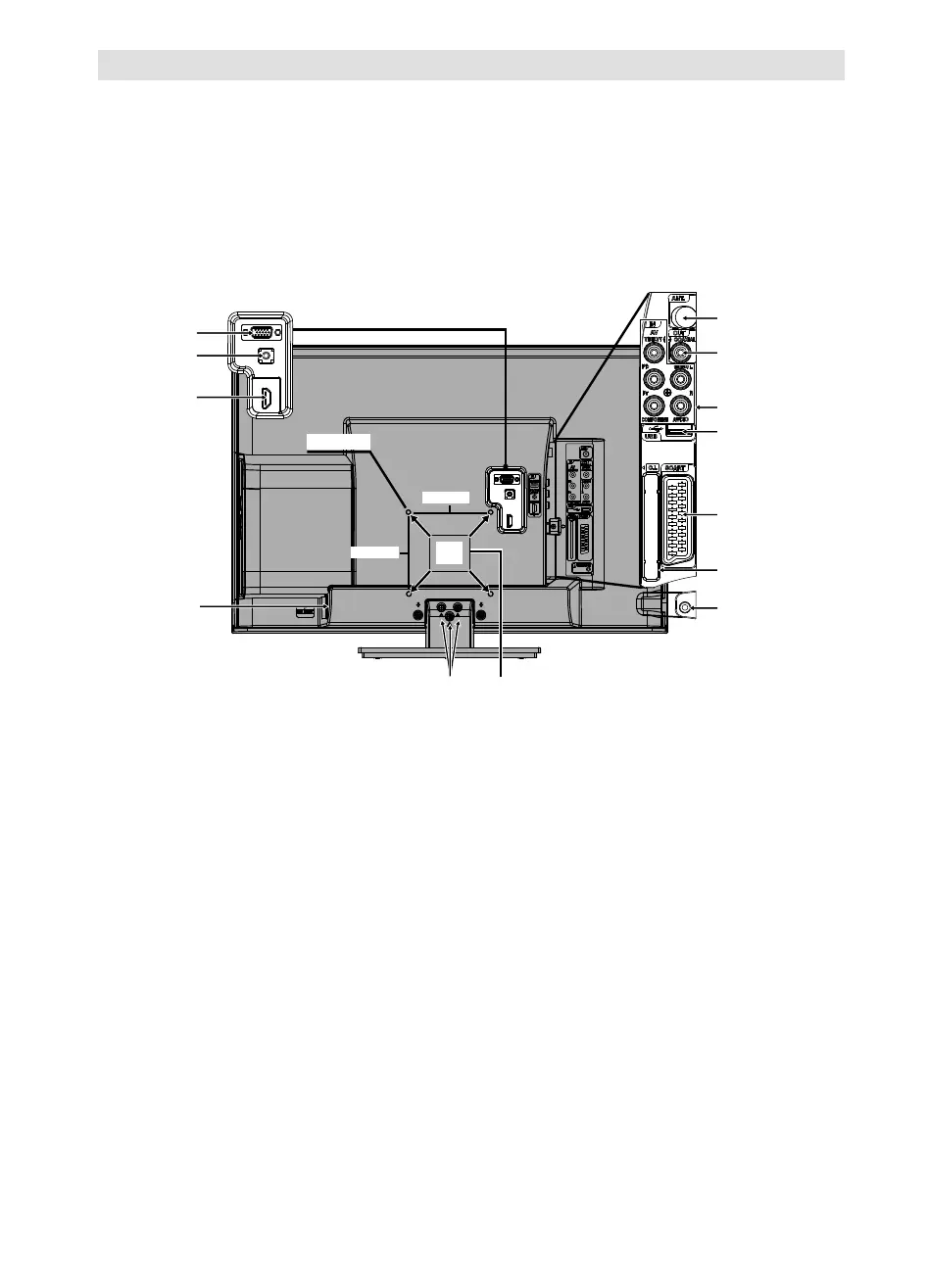

Back Side
