24

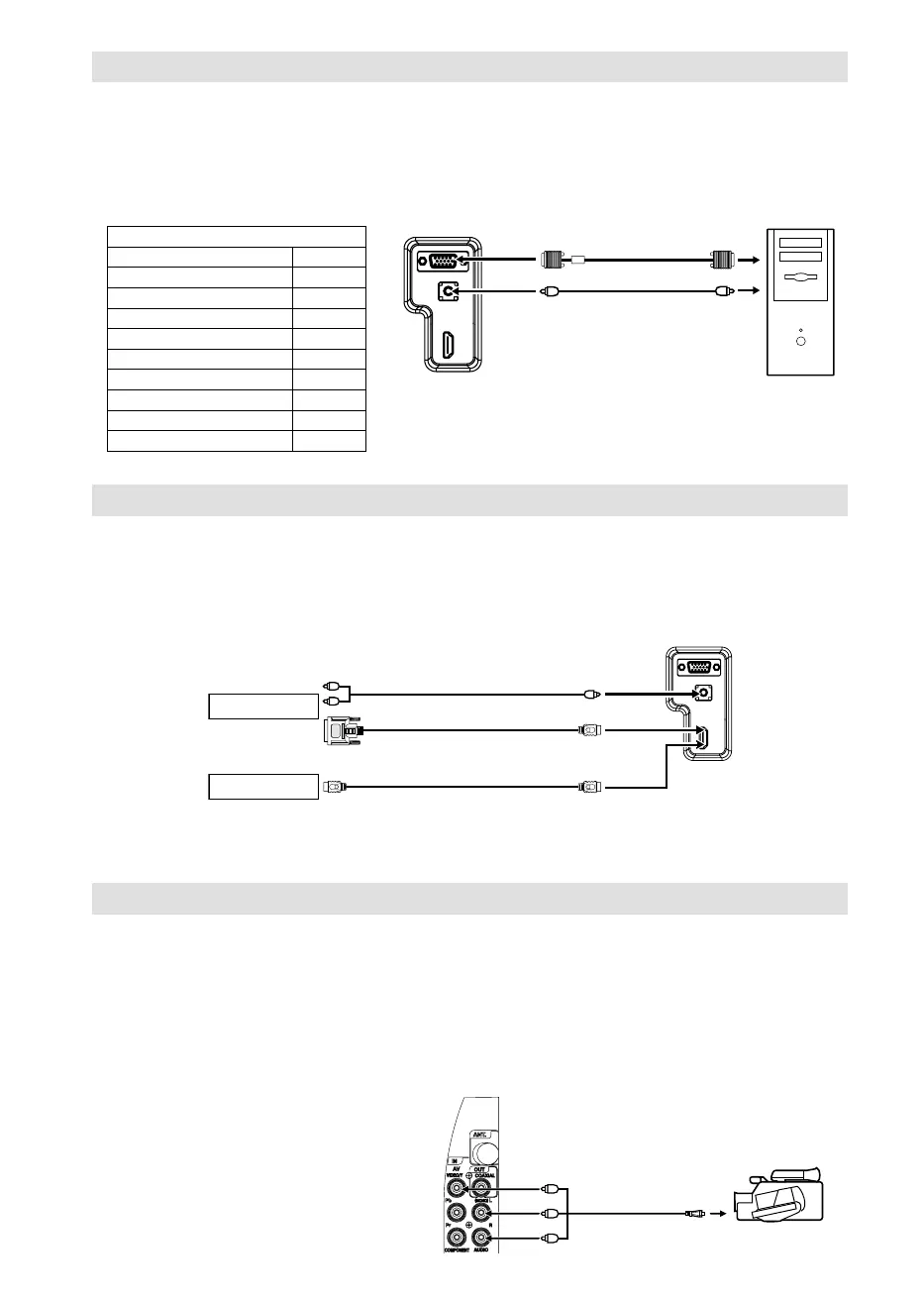

PC connection
Follow these steps: On your PC monitor choose a resolution of 1920 × 1080 at 60Hz and save this
configuration. Shut down your PC and connect the shut off LCD TV.
Use a screensaver to avoid burning-in of static picture content.
Use a PC-VGA cable (not supplied) to connect the LCD-Monitor
to your PC. Make the connections carefully so as not to break or
bend the contacts inside the plug.
Select PC input
Switch on the LCD-TV.
Select the PC input mode (see page 11).
Supported PC resolutions
resolution fps (Hz)
640x480 60
800x600 60
1024x768 60
1280x720 60
1280x768 60
1360x768 60
1280x1024 60
1440x900 60
1920x1080 60
The HDMI input receives digital audio and uncompressed video from a HDMI equipped device or
uncompressed digital video from a DVI equipped device.
When you connect to a DVI device with a HDMI-to-DVI adapter cable, it only transfers the video signal, so it
is necessary to use separate analogue leads to transfer the audio signals.
Select the HDMI input mode (see P.11).
Connecting an HDMI
or a DVI device to the HDMI input
Note:
Please notice the operating manual for the HDMI device to be set up.•
Note:
If no signal or a signal with a non-supported resolution is connected,
No Signal is displayed
As this LCD-TV is not a PC monitor correct display cannot be
guaranteed for every PC / graphics card.
•
•
Attention: Preparation:
• Disconnect all equipment from the AC-supply, to prevent any possible damage.
• Make the necessary connections.
• Make sure all connections are safe & secure before reconnecting your equipment the AC-supply.
Note:
Select an appropriate external input mode. (See page 11).•
Connection to other equipment
1. Connecting a Video camera or Games console to AV
(AV cable, not supplied)
AV output
Video camera
(example)
TV (Side view)
VGA Cable (not supplied)
Audio cable (not supplied)
TV (Rear view)
to PC/DVI AUDIO input
PC
or
DVI device
HDMI device
To DVI output
Audio cable (not supplied)
HDMI - to - DVI adapter cable
(HDMI type A connector)
(not supplied)
HDMI cable (type A connector)
(not supplied)
To HDMI output
To PC/DVI AUDIO input
TV (Rear view)
3IA0951A_EN.indd 243IA0951A_EN.indd 24 11/30/11 10:33:30 AM11/30/11 10:33:30 AM
