How to attach the stand
NOTE:
• Unplug the AC cord from the AC INPUT terminal.
• Before beginning this process, assure that the TV is laid on a clean, safe, and cushioned surface to avoid
any damage to the unit.
• Do not touch or press the TV-screen, glass might break under pressure.

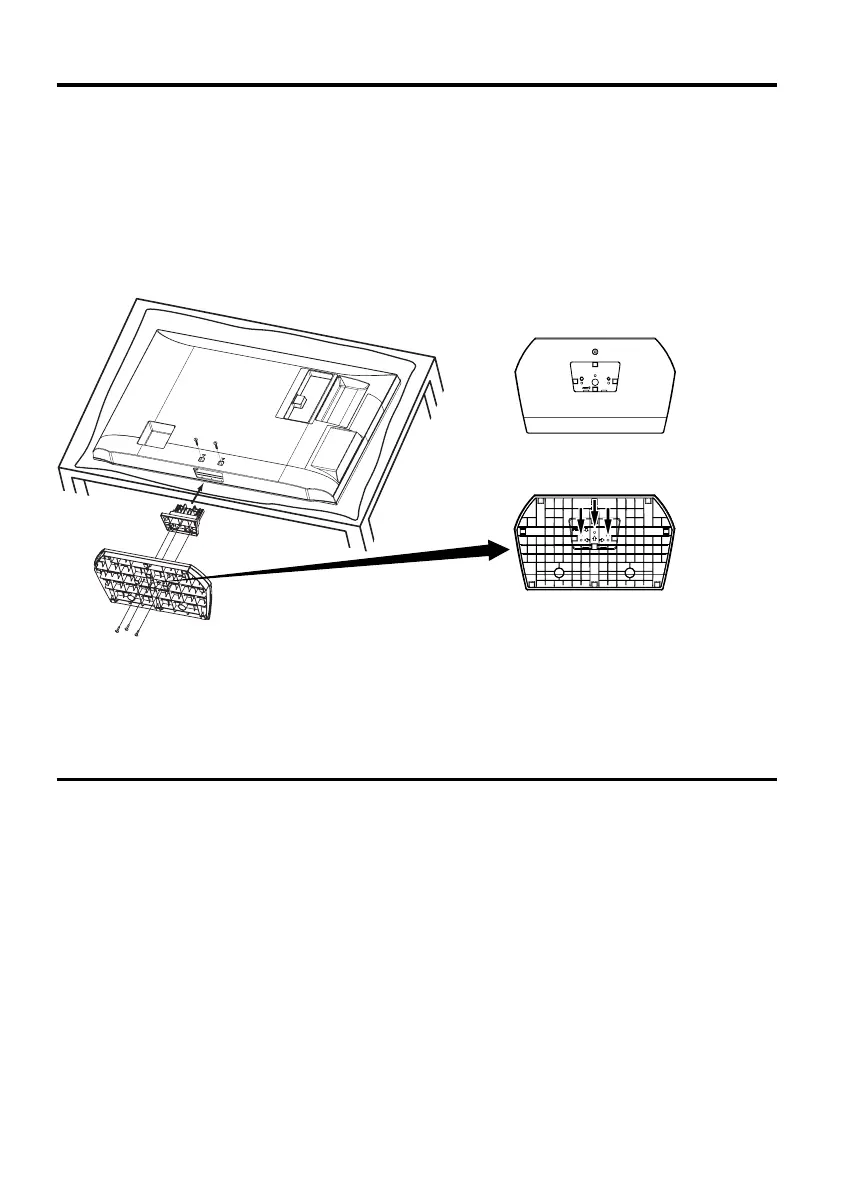

Place the TV on its front onto a table.
Align the stand’s bottom-plate (supplied) as seen here.
It will fi t in only one direction.
Hold the unit and attach the frame stand (a) slowly and secure the frame stand (a) with the 2 screws (supplied).
(M4x35mm), as shown in Figure 1.
Finally secure the bottom-plate (b) with 3 screws (supplied) (M4x16mm) as indicated by the arrows in Figure 2.
Be sure to follow the instructions. Insufficient tightening or incorrect installation of the stand will not support
your unit correctly, and could result in damage or injury from tip-over.
•
How to remove the stand
When you transport this product, remove the stand and pack fl at against the back of the unit in the carton. To
remove the stand, perform these steps in reverse order.
For wall mounting, the base must be removed. To disconnect the base/stand remove the 2 screws from the back
(see page 5).
LCD PANEL SIDE
Figure 1
Figure 2
(a)
(b)
(b)
6
