Connections

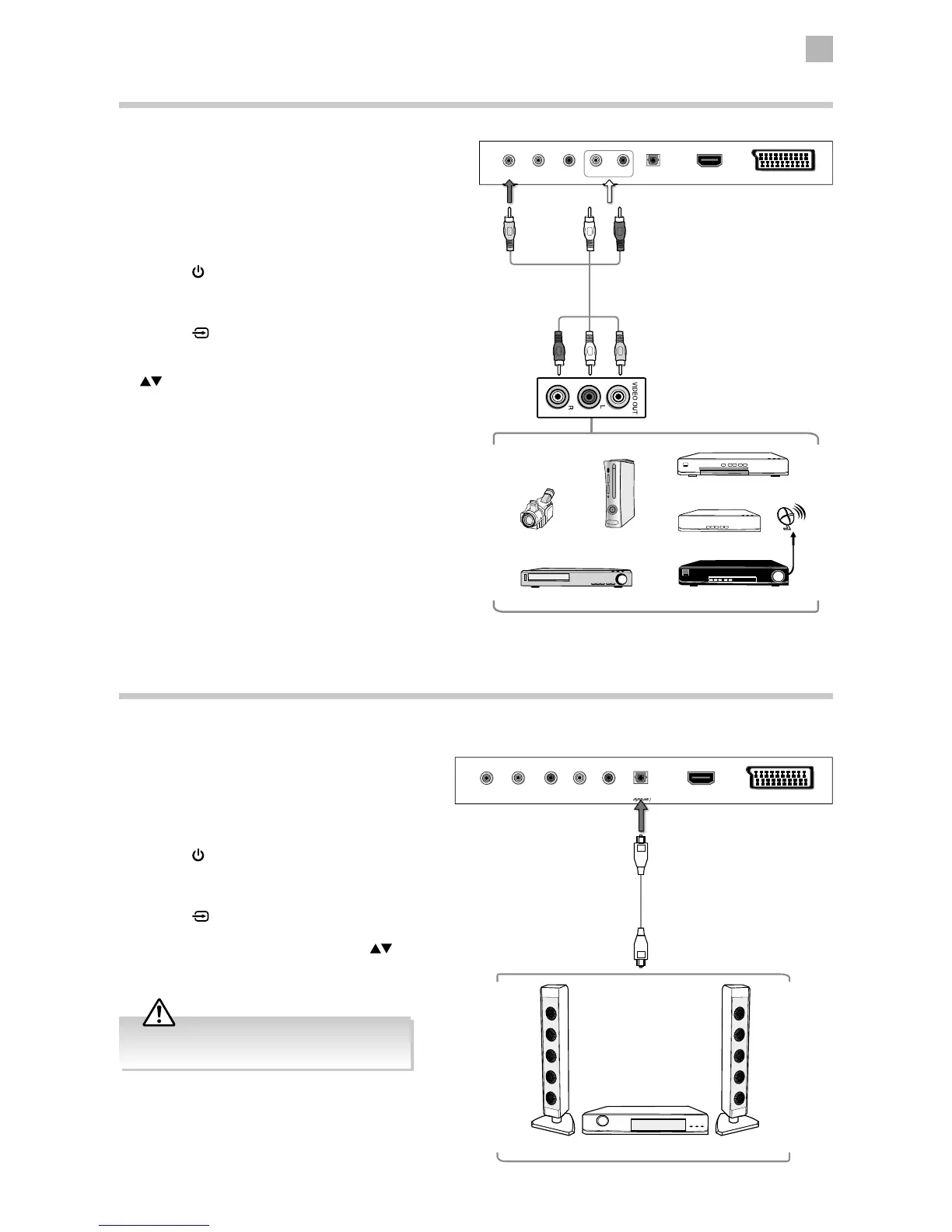

Connecting an AV Device Using Composite Cable
1. Use an AV cable to connect the TV’s AUDIO(L/R)
/ VIDEO input sockets to the external AV device’s
composite audio / video output sockets.
(VIDEO = yellow, Audio Left = white, and
Audio Right = red)
2. Plug the connected devices into the mains socket
before switching on the TV.
3. Press the
button on the right bottom panel
under the TV frame or on the remote control to
turn on your TV.
4. Press the
button on the right bottom panel
under the TV frame or the INPUT button on the
remote control to display the Source List. Use the
buttons to select AV and then press the OK
button to confirm.
AV Cable
(not included)
Yellow (Video)
Red (R)
White (L)
Yellow (Video)
Red (R)
White (L)
RLPb Pr
SCART
HDMI3
Y
VIDEO
Digital Audio Output
(optical)
Rear Bottom View of TV
Video Camera
VCR
DVD Player / Recorder
Set-top Box
Game Console
Satellite Receiver
Satellite
antenna
cable
Connecting an Audio Receiver
For better sound quality, you may want to play the audio through your multi-channel audio receiver.
1. Use an optical cable to connect the TV’s Digital
Audio Output (optical) socket to an external audio
receiver’s audio optical input socket.
2. Plug the connected devices into the mains socket
before switching on the TV.
3. Press the
button on the right bottom panel under
the TV frame or on the remote control to turn on your
TV.
4. Press the
button on the right bottom panel under
the TV frame or the INPUT button on the remote
control to display the Source List. Use the
buttons
on the remote control to select the desired input
source and then press the OK button to confirm.
The TV’s volume will not be affected. You may
control the audio level via the Audio Receiver.
Rear Bottom View of TV
RLPb Pr
SCART
HDMI3
Y
VIDEO
Digital Audio Output
(optical)
Optical Cable
(not included)
Audio Receiver
To Next Page
