Make sure all the devices and the TV are turned off.
The names of the devices shown in the following illustration are examples.
The alphabets A, B, C, D, E, F and G indicate the type of connections. Refer
to P. 10 - 11 to find the best connections that are possible with your devices.
z Please read the user manuals of each device before setting up.
z Connecting cables are not supplied with this TV.

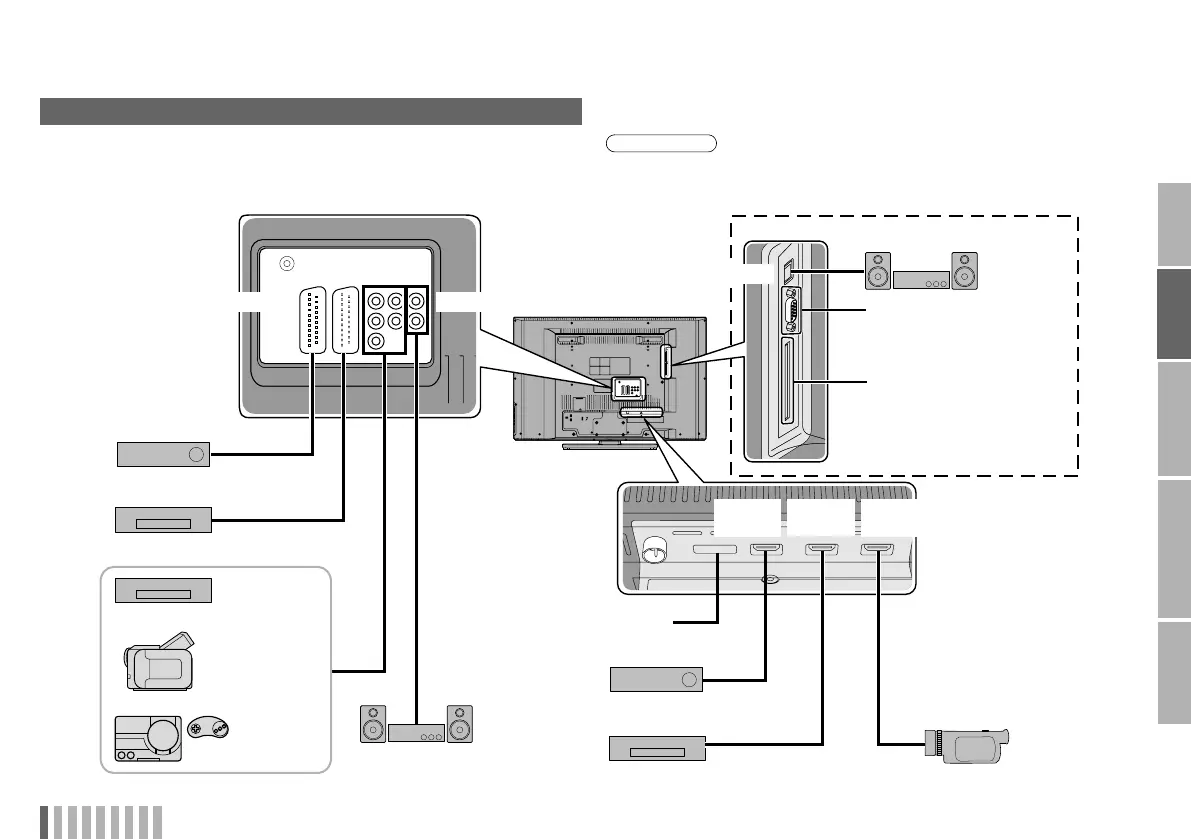

Connecting your external devices
Note
Audio system
Satellite broadcast tuner
VCR / DVD recorder
EXT-1 AUDIO OUT
EXT-4
(HDMI 1)
EXT-5
(HDMI 2)
EXT-6
(HDMI 3)
Not available.
(For service adjustments)
CI (Common Interface) slot
Refer to “Watch pay-TV
digital channels (DR9 only)”
(P. 8)
HD Video camera
DR9 only
Digital Satellite broadcast tuner
DVD player
Video camera
Game consoles
Not available.
(For service adjustments)
DVD player
D
D
C/E
A/B
A
A
G
F
EXT-2 EXT-3
Audio system
DIGITAL AUDIO OUT
