MX-GT80/MXGT90
1-11
Prior to performing the following procedure, remove
the metal cover, the CD changer mechanism
assembly and the rear panel.
Disconnect the wires from connector CN703, CN704
and CN706 on the amplifier board respectively.
Remove the two tie band attaching the wire to the
amplifier board and the voltage board.
Disconnect connector CN215 on the amplifier board
and CN216 on the voltage board from the regulator
board (The heat sink and heat sink bracket will be
detached at once).
Pull out the upper and lower heat sink brackets from
the heat sink respectively.
Remove the four screws I attaching the amplifier
board to the heat sink.
Remove the two screws J, the board bracket and
the voltage board.
1.
2.
3.
4.
5.
6.

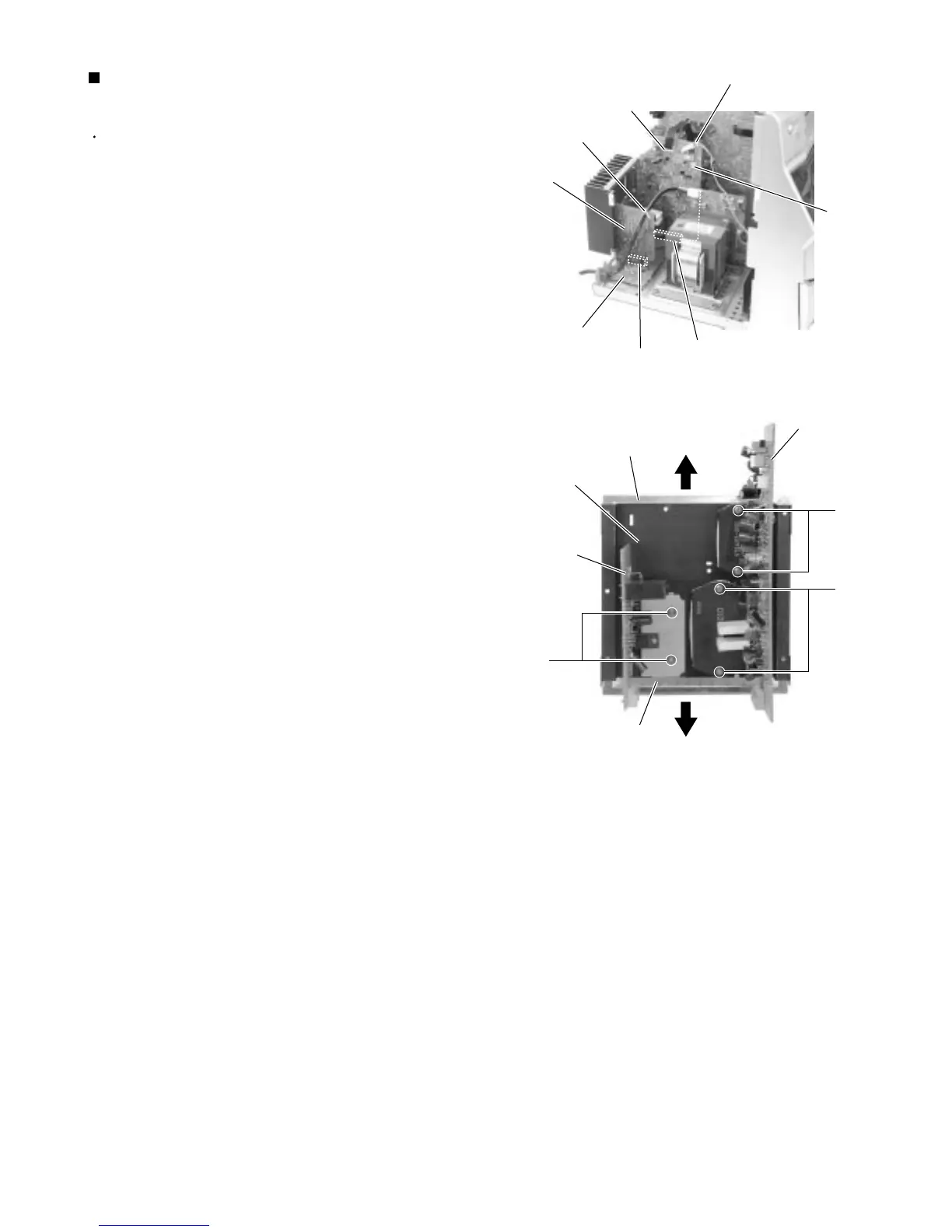

Removing the amplifier board / voltage
board / heat sink (See Fig.19 and 20)
Fig.19
Fig.20
Amplifier board
CN703
CN704
CN216
Regulator board
CN215
Tie band
Tie band
CN703
Voltage board
Amplifier board
Heat sink
Heat sink bracket
Heat sink bracket
Voltage board
I
I
J
