Prior to performing the following procedures, remove
the front panel.
Remove the four screws E attaching the speaker
(squawker) on the front of the body.
Disconnect the wire from the two speaker terminals
of the speaker (squawker).
1.
2.
Removing the speaker (squawker)
(See Fig.5)
Prior to performing the following procedures, remove
the front panel.
Remove the eight screws D attaching the punch
panel on the front of the body.
Remove the six screws F attaching the speaker
(woofer) on the front of the body.
Remove the speaker (woofer) toward the front and
disconnect the wire from the two speaker terminals.
1.
2.
3.
Removing the speaker (woofer)
(See Fig.6 and 7)
Remove the four screws G attaching the duct on the
upper side of the body.
Move the duct upwards and pull out backward.
Caution :
When servicing SP-MXGT90 speaker system, never
push or pull the speaker system on the table or floor.
It will damage the leg cushions attached on the
bottom of speaker system.
Leg cushion is important to prevent vibration and
protect speaker system not to slip down from the
shelf or table.
1.
2.
Removing the duct (See Fig.8)

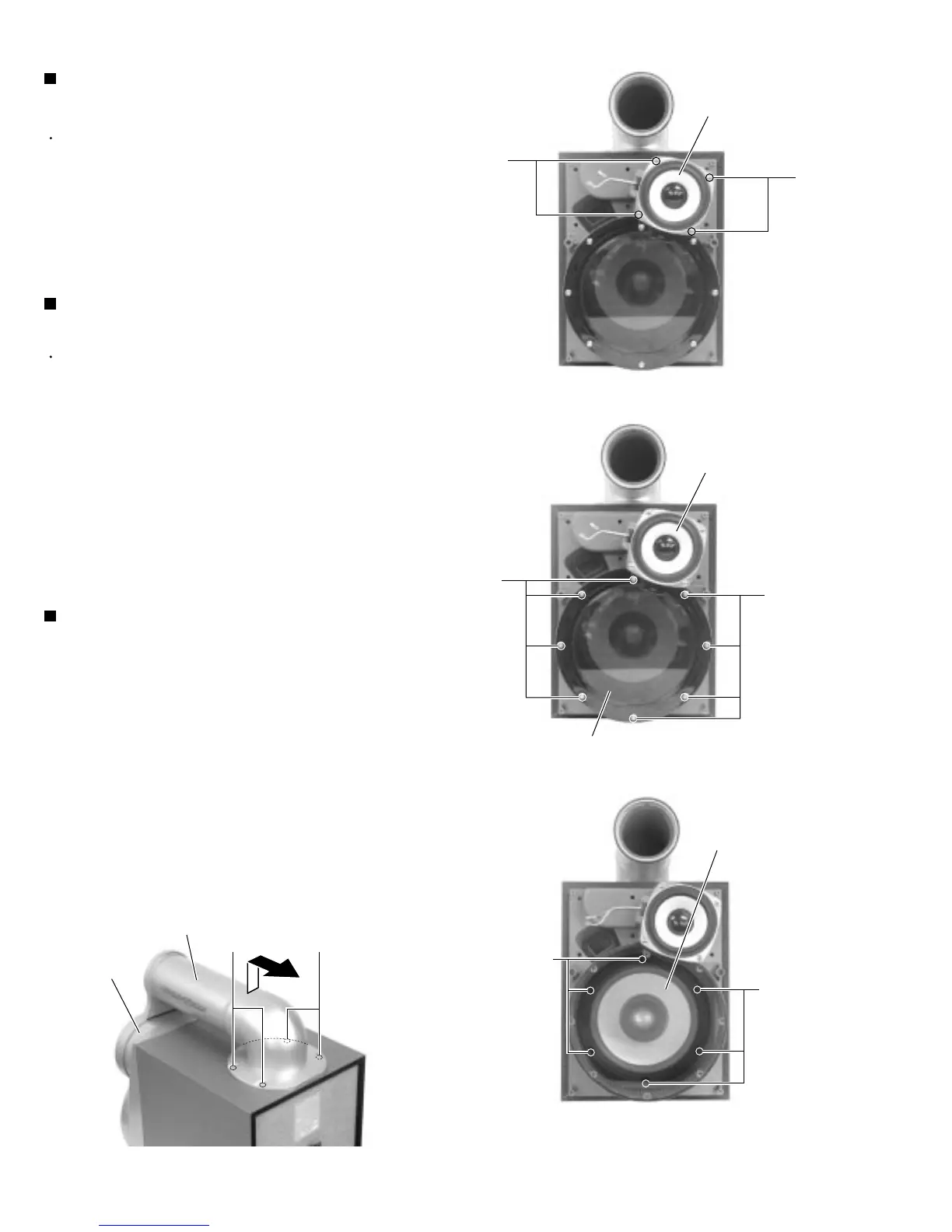

Fig.5
Fig.6
Fig.7
Fig.8
D
Speaker (squawker)
D
E
E
Speaker (woofer)
F
Front panel
G
Duct
G
Speaker (squawker)
Punch panel
F
