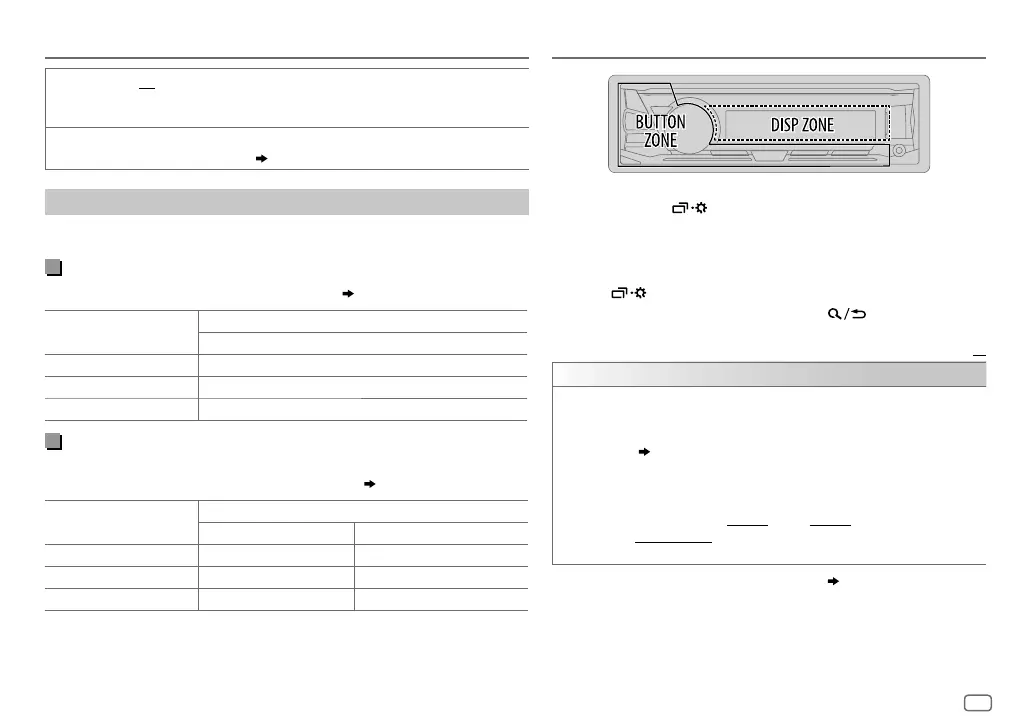

JVC PANDORA KD-X241 User Manual

ENGLISH
13
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
AUDIO SETTINGS
D.T.EXPANDER
(Digital Track
Expander)
ON :Creates realistic sound by compensating the high-frequency components
and restoring the rise-time of the waveform that are lost in audio data
compression.;
OFF :Cancels.
SPK/PRE OUT Depending on the speaker connection method, select the appropriate setting to
get the desired output. (
 Speaker output settings )
Speaker output settings
Select the output setting for the speakers [SPK/PRE OUT] , base on the speaker
connection method.
Connection via lineout terminals
For connections through an external amplifier. ( 19)
Setting on
[SPK/PRE OUT]
Audio signal through lineout terminal
REAR/SW
REAR/REAR Rear speakers output
REAR/SUB.W (default) Subwoofer output
SUB.W/SUB.W Subwoofer output
Connection via speaker leads
For connections without using an external amplifier. However, with this
settings you can also enjoy the subwoofer output.
( 19)
Setting on
[SPK/PRE OUT]
Audio signal through rear speaker lead
L (left) R (right)
REAR/REAR Rear speakers output Rear speakers output
REAR/SUB.W Rear speakers output Rear speakers output
SUB.W/SUB.W Subwoofer output (Mute)
If [SUB.W/SUB.W] is selected:
–
[FRQ 120HZ] is selected in [SUBWOOFER LPF] and [FRQ THROUGH] is not available.
–
[POSITION R01] is selected in [FADER] and selectable range is [POSITION R06] to
[POSITION 00] .
1 Press and hold .
2 Turn the volume knob to select an item (see the following
table), then press the knob.
3 Repeat step 2 until the desired item is selected/activated or
follow the instructions stated on the selected item.
4 Press to exit.
To return to the previous setting item, press .
Default:
XX
DISPLAY
DIMMER
Dim the illumination.
OFF :Dimmer is turned off. Brightness changes to [DAY] setting.
ON :Dimmer is turned on. Brightness changes to [NIGHT] setting.
(
14 , [BRIGHTNESS] )
DIMMER TIME :Set the dimmer on and off time.
1 Turn the volume knob to adjust the [ON] time, then press the knob.
2 Turn the volume knob to adjust the [OFF] time, then press the knob.
(Default:
[ON] : PM6:00 ; [OFF] : AM6:00 )
DIMMER AUTO :Dimmer turns on and off automatically when you turn
off or on the car headlights.
*
1
*
1
The illumination control wire connection is required. ( 19)
DISPLAY SETTINGS
