JVC PC-X110 User Manual

PC-X110 B/E/G/GI/EN
4
@ Antenna
wire
Battery P.C. board
r
tessa
®ps96-pe0040
i
oO
c30l
Main P.C. board

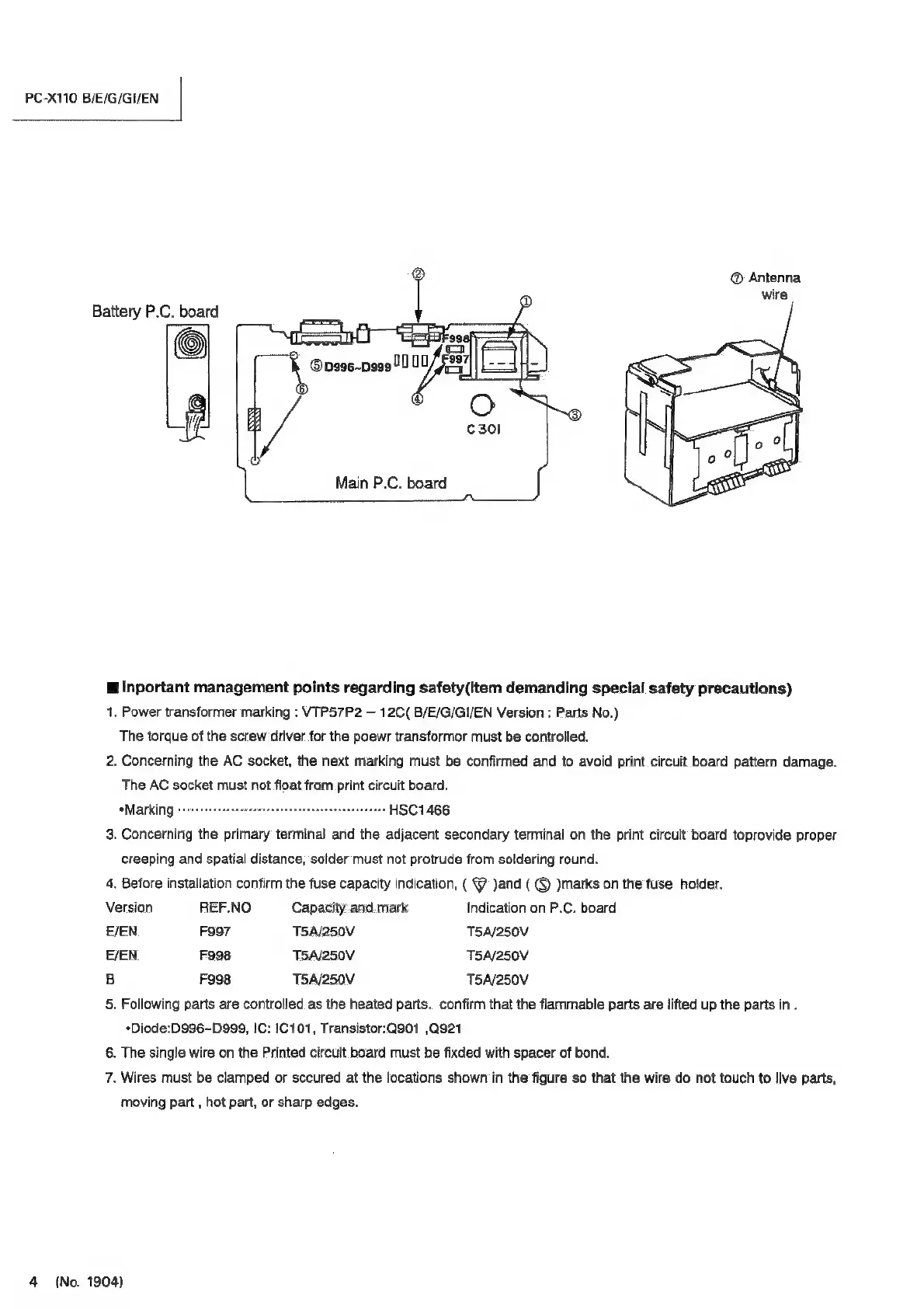

mi Inportant management points regarding safety(Item demanding special safety precautions)
1. Power transformer marking : VTP57P2 — 12C( B/E/G/GI/EN Version : Parts No.)
The torque of the screw driver for the poewr transformor must be controlled.
2. Concerning the AC socket, the next marking must be confirmed and to avoid print circuit board pattern damage.
The AC socket must not float from print circuit board.
Marking --- + HSC1466
3. Concerning the primary terminal and the adjacent secondary terminal on the print circuit board toprovide proper
creeping and spatial distance, solder must not protrude from soldering round.
4. Before installation confirm the fuse capacity indication, ( Y )and (© )marks on the fuse holder.
Version REF.NO Capacity and mark Indication on P.C. board
E/EN F997 T5A/250V TSA/250V
E/EN Fos TSA/250V TSA/250V
B Foo8 TSA/250V TSA/250V
5. Following parts are controlled as the heated parts. confirm that the flammable parts are lifted up the parts in .
*Diode:D996~D999, IC: 1C101, Transistor:Q901 ,Q921
6. The single wire on the Printed circuit board must be fixded with spacer of bond.
7. Wires must be clamped or sccured at the locations shown in the figure so that the wire do not touch to live parts,
moving part , hot part, or sharp edges.
(No. 1904)

JVC PC-X110 Specifications

General

Brand	JVC
Model	PC-X110
Category	CD Player
Language	English
