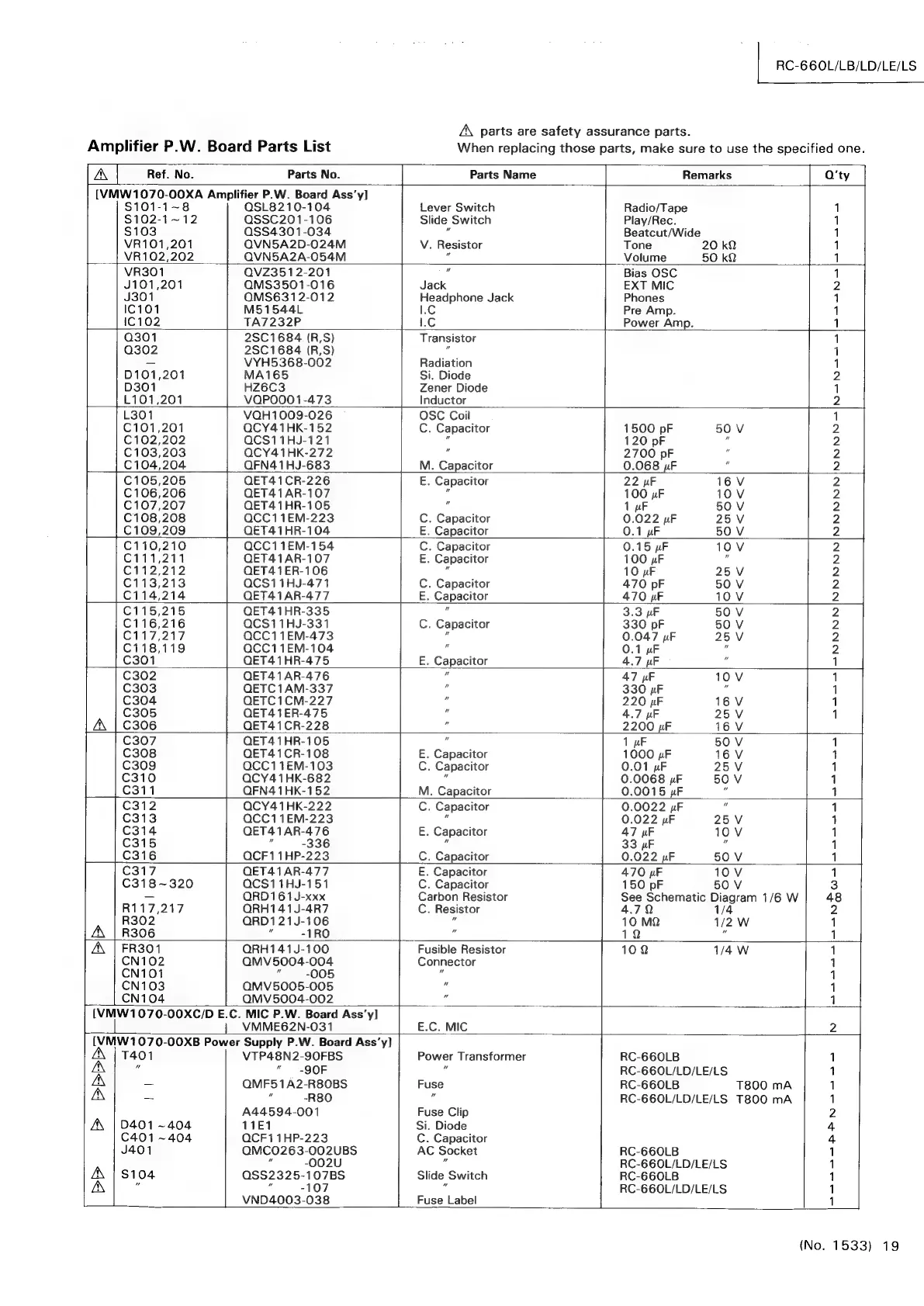

Amplifier P.W. Board Parts List
A\ parts are safety assurance parts.
When replacing those parts, make sure to use the specified one.
RC-660L/LB/LD/LE/LS
}
aN | Ref. No. Parts No. Parts Name Remarks Q'ty
[VMW1070-O00XA Amplifier P.W. Board Ass’y]
$101-1~8 QSL8210-104 Lever Switch Radio/Tape 1
$102-1~12 QSSC201-106 Slide Switch Play/Rec. 1
$103 QSS4301-034 7 Beatcut/Wide 1
VR101,201 QVN5A2D-024M V. Resistor Tone 20 kQ 1
VR102,202 QVN5A2A-054M " Volume 50 kQ 1
VR301 QVZ3512-201 7 Bias OSC 1
J101,201 QMS3501-016 Jack EXT MIC 2
J301 QMS6312-012 Headphone Jack Phones 1
1¢101 M51544L 1.C Pre Amp. 1
1C102 TA7232P 1.C Power Amp. 1
Q301 2SC1684 (R,S) Transistor 1
Q302 2SC1684 (R,S) : 1
= VYH5368-002 Radiation 1
D101,201 MA165 Si. Diode 2
D301 HZ6C3 Zener Diode 1
L101,201 VQP0001-473 Inductor 2
L301 VQH1009-026 OSC Coil 1
C101,201 QCY41HK-152 C. Capacitor 1500 pF 50 V 2
C102,202 QCS11HJ-121 if 120 pF wt 2
C103,203 QCY41HK-272 # 2700 pF if 2
C104,204 QFN41HJ-683 M. Capacitor 0.068 uF © 2
C105,205 QET41CR-226 E. Capacitor 22 uF 16V 2
C106,206 QET41AR-107 " 100 pF 10V 2
C107,207 QET41HR-105 is 1 uF 50 V 2
C108,208 QCC11EM-223 C. Capacitor 0.022 pF 25V 2
C109,209 QET41HR-104 E. Capacitor 0.1 wF 50 V 2
C110,210 QCC11EM-154 C. Capacitor 0.15 pF 10V 2
C111,211 QET41AR-107 —. Capacitor 100 pF As 2
C112,212 QET41ER-106 id 10 pF 25V 2
C113,213 QCS11HJ-471 C. Capacitor 470 pF 50 V 2
C114,214 QET41AR-477 E. Capacitor 10 V 2
C115,215 QET41HR-335 e 50 V 2
C116,216 QCS11HJ-331 . Capacitor 50 V 2
C117,217 QCC11EM-473 25 Vv 2
C118,119 QCC11EM-104 7 4 ;
1
1
1
1
QET41HR-475
. Capacitor
C302 QET41AR-476 i 47 uF 10 V
C303 QETC1AM-337 f 330 pF ‘
QETC1CM-227 “ 220 uF 16V
QET41ER-475 e 4.7 uF 25V
A QET41CR-228 x 2200 pF 16 V
QET41HR-105 1 pF 50 V 1
C308 QET41CR-108 E. Capacitor 1000 pF 16V 1
C309 QCC11EM-103 C. Capacitor 0.01 pF 25V 1
C310 QCY41HK-682 7 0.0068 uF 50 V 1
C311 QFN41HK-152 M. Capacitor 0.0015 uF ss 1
C312 QCY41HK-222 C. Capacitor 0.0022 uF ” 1
C313 QCC11EM-223 e 0.022 uF 25 V 1
C314 QET41AR-476 E. Capacitor 47 uF 10V 1
C315 & -336 7 33 uF . 1
C316 OQCF11HP-223 C. Capacitor 0.022 yF 50 V 1
C317 QET41AR-477 E. Capacitor 470 uF 10 V 1
C318~320 QCS11HJ-151 C. Capacitor 150 pF 50 V 3
- QRD161J-xxx Carbon Resistor See Schematic Diagram 1/6 W 48
R117,217 QRH141J-4R7 C. Resistor 4.79 1/4 2
R302 QRD121J-106 7 10 MQ 1/2 W 1
A\ | R306 “_-1RO 10 1
A, | FR301 QRH141J-100 Fusible Resistor 100 1/4W 1
CN102 QMV5004-004 Connector 1
CN101 i -005 3 1
CN103 QMV5005-005 . 1
CN104 QMV5004-002 a 1
[VMW1070-00XC/D E.C. MIC P.W. Board Ass’y]
| VMME62N-031 E.C. MIC 2
[VMW1070-00XB Power Supply P.W. Board Ass’y]
A | 1401 VTP48N2-S0FBS Power Transformer RC-660LB 1
A " ” — -90OF RC-660L/LD/LE/LS 1
A _ QMF51A2-R80BS Fuse RC-660LB T800 mA 1
A
=
ue
-R80
4
RC-660L/LD/LE/LS
T800
mA
1
A44594-001 Fuse Clip 2
A | D401 ~404 11E1 Si. Diode 4
C401 ~ 404 QCF11HP-223 C. Capacitor 4
J401 QMC0263-002UBS AC Socket RC-660LB 1
e -002U ‘s RC-660L/LD/LE/LS 1
AV | $104 QSS2325-107BS Slide Switch RC-660LB 1
A} ” “107 RC-660L/LD/LE/LS 1
VND4003-038 Fuse Label 1
