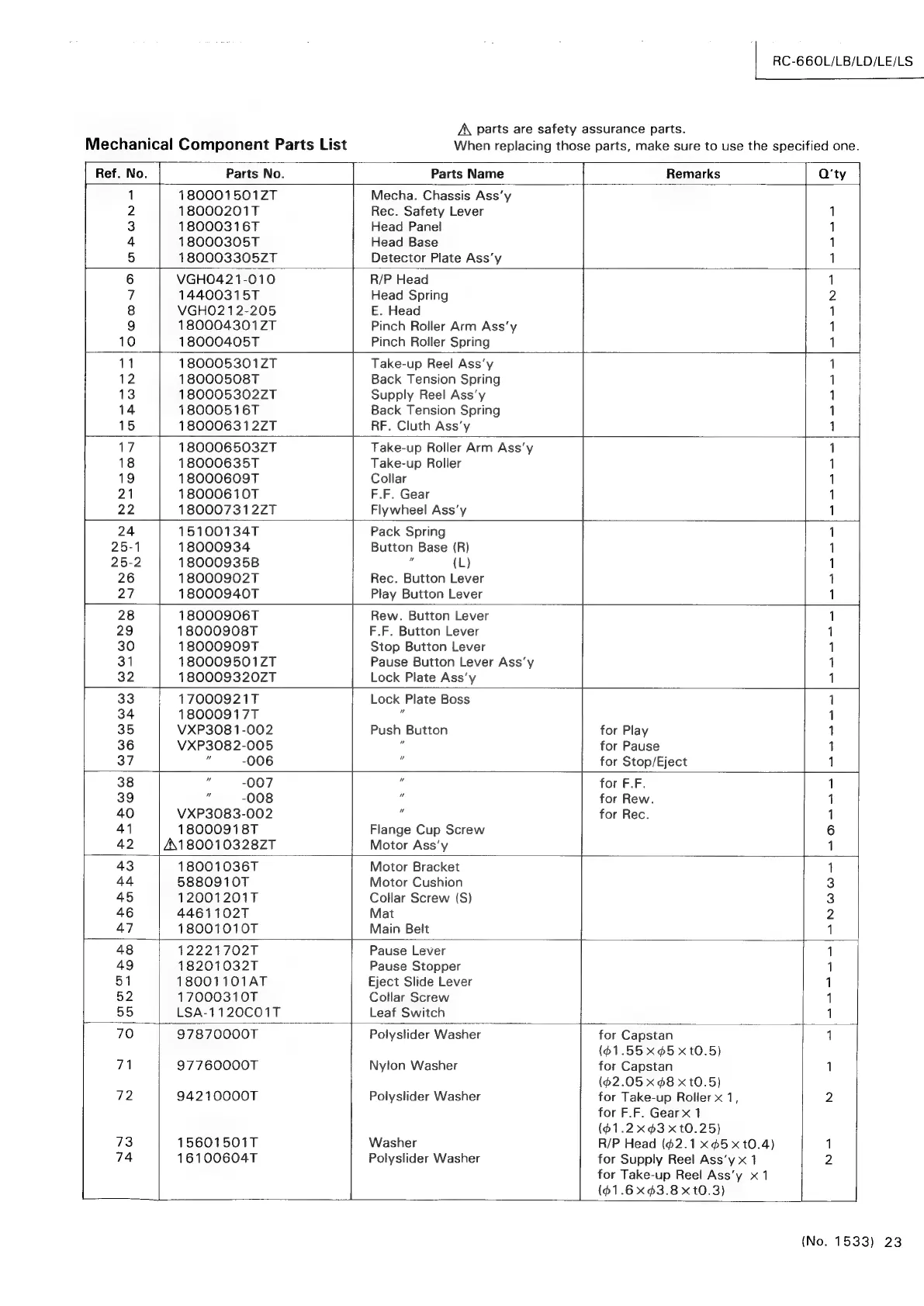

Mechanical Component Parts List
RC-660L/LB/LD/LE/LS
A\ parts are safety assurance parts.
When replacing those parts, make sure to use the specified one.
Ref. No. | Parts No. Parts Name Remarks Q'ty
1 1800015012ZT Mecha. Chassis Ass’y
2 18000201T Rec. Safety Lever 1
3 18000316T Head Panel 1
4 18000305T Head Base 1
5 180003305ZT Detector Plate Ass’y 1
6 VGH0421-010 R/P Head 1
7 14400315T Head Spring 2
8 VGHO212-205 E. Head 1
9 180004301ZT Pinch Roller Arm Ass‘y 1
10 18000405T Pinch Roller Spring 1
11 1800053012ZT Take-up Reel Ass‘y 1
12 18000508T Back Tension Spring 1
13 180005302ZT Supply Reel Ass’y 1
14 18000516T Back Tension Spring 1
15 1800063122T RF. Cluth Ass’y 1
17 1800065032ZT Take-up Roller Arm Ass’y 1
18 18000635T Take-up Roller 1
19 18000609T Collar 1
21 18000610T F.F. Gear 1
22 1800073122T Flywheel Ass’y 1
24 15100134T Pack Spring 1
25-1 18000934 Button Base (R) 1
25-2 18000935B _ (L) 1
18000902T Rec. Button Lever 1
18000940T Play Button Lever 1
18000906T Rew. Button Lever 1
29 18000908T F.F. Button Lever 1
30 18000909T Stop Button Lever 1
1800095012T Pause Button Lever Ass’y 1
1800093202T Lock Plate Ass’y 1
33 17000921T Lock Plate Boss 1
34 18000917T ° 1
35 VXP3081-002 Push Button for Play 1
36 VXP3082-005 i for Pause 1
37 id -006 % for Stop/Eject 1
38 a -007 ” for F.F. 1
39 if -008 4 for Rew. 1
40 VXP3083-002 : for Rec. 1
41 1800091 8T Flange Cup Screw 6
42 A\180010328ZT Motor Ass’y 1
43 18001036T Motor Bracket 1
44 5880910T Motor Cushion 3
45 12001201T Collar Screw (S) 3
46 4461102T Mat 2
47 18001010T Main Belt 1
48 12221702T Pause Lever iid
49 18201032T Pause Stopper 1
51 18001101AT Eject Slide Lever 1
52 17000310T Collar Screw 1
55 LSA-1120C01T Leaf Switch 1
70 97870000T Polyslider Washer for Capstan 1
(61.555 xtO.5)
71 97760000T Nylon Washer for Capstan 1
($2.05 x 8 xt0.5)
72 94210000T Polyslider Washer for Take-up Roller x 1, 2
for F.F. Gear x 1
(61.2 x3 x t0.25)
73 15601501T Washer R/P Head (62.1 x5 x t0.4) 1
74 16100604T Polyslider Washer for Supply Reel Ass‘y x 1 2
for Take-up Reel Ass’y x1
(61.6 X $3.8 xt0.3)
(No. 1533) 23
