CASE1: If the DVD player is equipped with the S-video terminals
AV COMPU LINK Remote Control System
The AV COMPU LINK remote control system allows you to operate JVC video components (TV, VCR, and DVD player)
through the receiver.

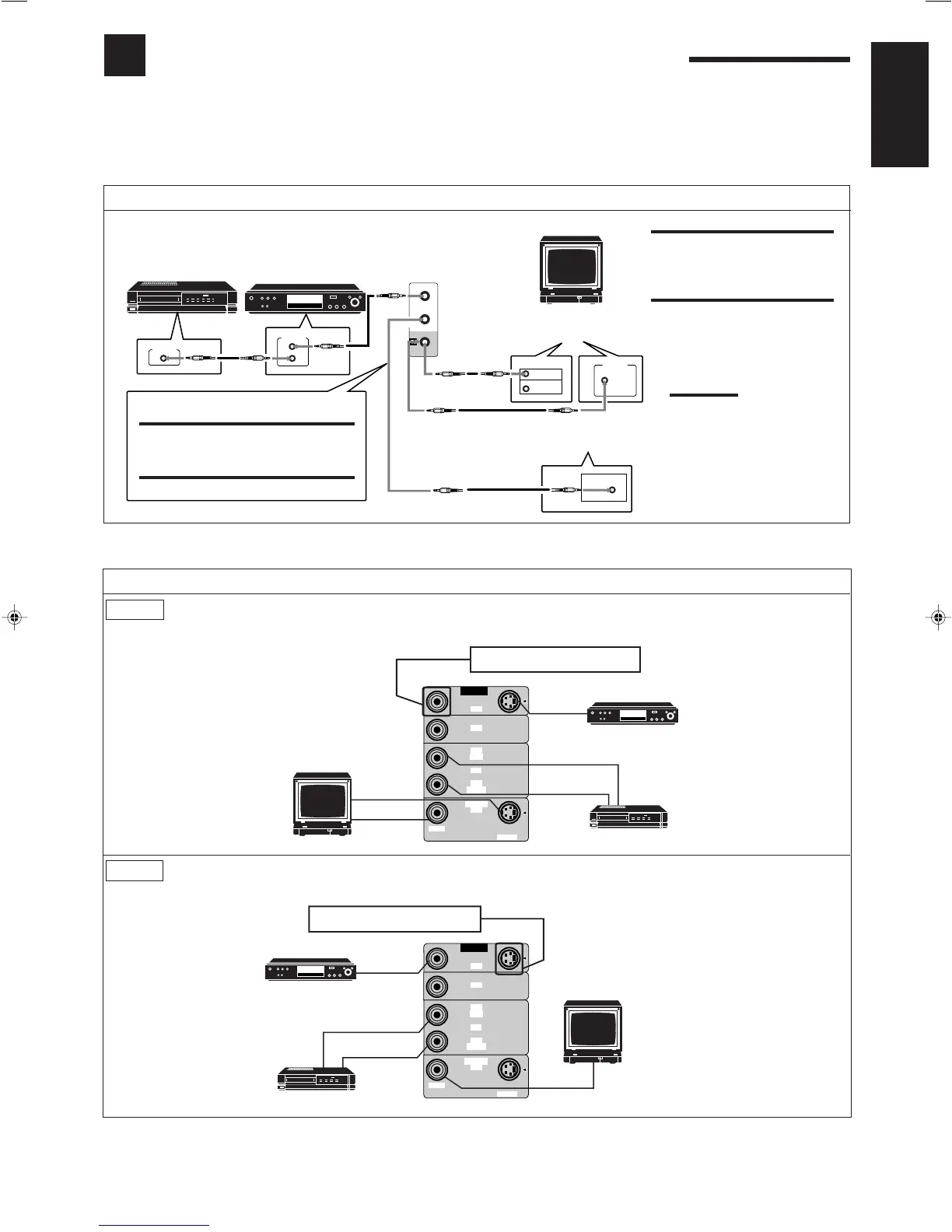

To use this remote control system, you need to connect the video components you want to operate, follow the diagrams below and the
procedure on the next page.
CONNECTIONS 1:
CONNECTIONS 2:
CAUTION
The AV COMPU LINK remote
control system cannot control the
DBS tuner connected to the TV
SOUND/DBS jacks.
Notes:
• When connecting only the
VCR or DVD player to this
receiver, connect it directly to
the receiver using cable with
the monaural mini-plugs.
• Refer also to the manuals
supplied with your video
components.
AV
COMPU LINK
RECEIVER/
AMP
AV
COMPU LINK
AV
COMPU LINK
VHS
AV
COMPU LINK
AV
COMPU LINK
EX
RECEIVER/AMP
(VCR)
EX
DVD
TV
If the AV COMPU LINK terminal
on the TV is “RECEIVER/AMP”
If the AV COMPU LINK terminal
on the TV is “AV COMPU LINK
EX”
DVD player
IMPORTANT:
Connect to the terminal indicated in the
illustration.
DO NOT connect to the TV terminal.
VCR
To Video input 1
To Video input 2
DVD player
DO NOT use this video terminal.
VCR
VIDEO
VIDEO
S-VIDEO
MONITOR
OUT
VCR
IN
(PLAY)
OUT
(REC)
DBS
DVD
DVD
S-VHS
CASE2: If the DVD player is not equipped with the S-video terminals
TV
To Video input 2
DVD player
S-VHS
VCR
VIDEO
VIDEO
S-VIDEO
MONITOR
OUT
VCR
IN
(PLAY)
OUT
(REC)
DBS
DVD
DO NOT use this video terminal.
DVD
