1-6 (No.MB159)
SECTION 3
DISASSEMBLY

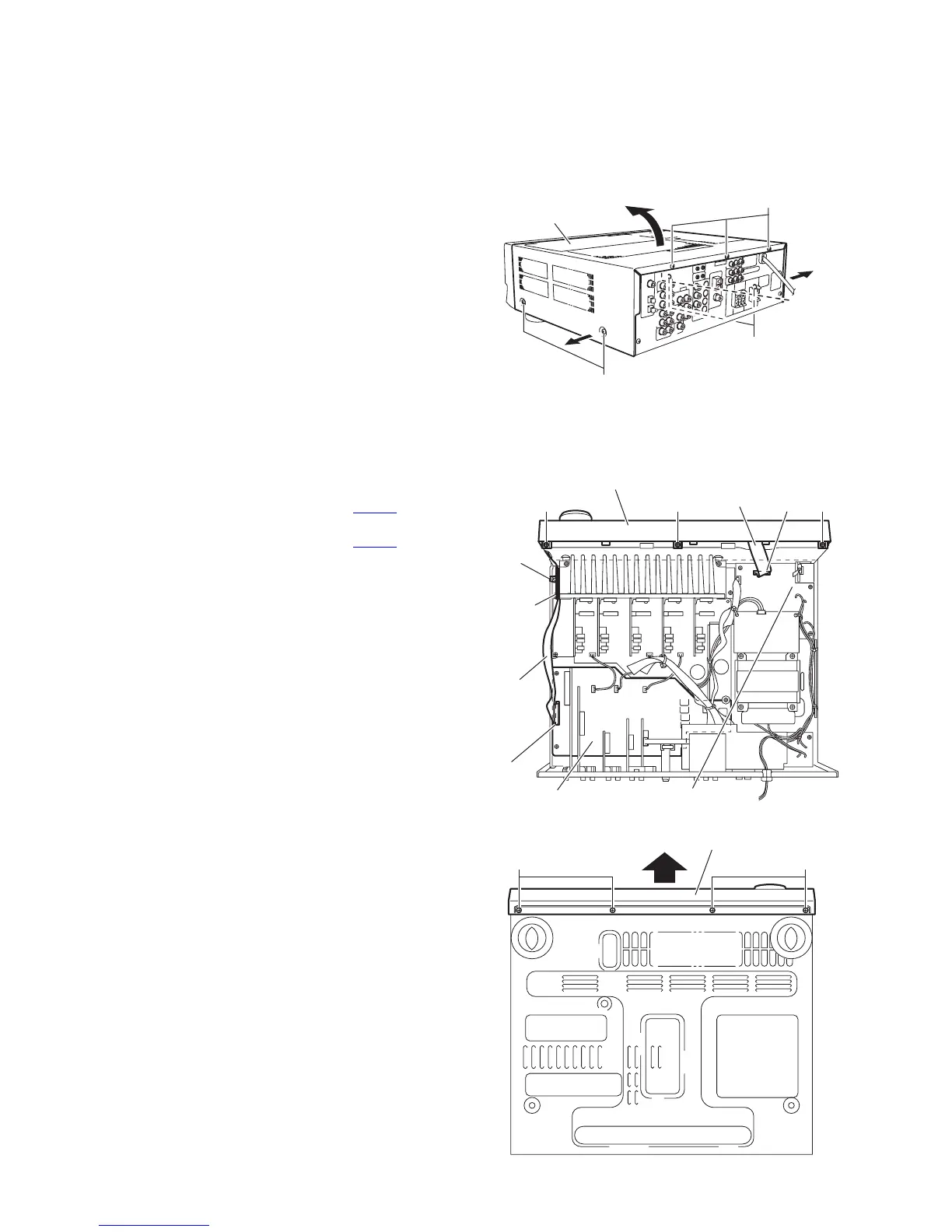

3.1 Removing the top cover
(See Fig.1)
(1) From the right and left sides of the main body, remove the
four screws A attaching the top cover.
(2) From the back side of the main body, remove the three
screws B attaching the top cover.
(3) Remove the top cover in the direction of the arrow 2 while
extending the lower sections of the top cover in the
direction of the arrow 1.
Fig.1
3.2 Removing the front panel assembly
(See Figs.2 and 3)
Prior to performing the following procedure, remove the top
cover.
(1) Disconnect the card wire from the connector CN402
on the
audio board. (See Fig.2)
(2) Disconnect the card wire from the connector CN201
on the
power supply board. (See Fig.2)
(3) Remove the tie bands. (See Fig.2)
(4) Remove the wire protection board fixing the card wire. (See
Fig.2)
(5) Remove the three screws C attaching the front panel
assembly. (See Fig.2)
(6) From the bottom side of the main body, remove the four
screws D attaching the front panel assembly. (See Fig.3)
(7) Remove the front panel assembly in the direction of the
arrow. (See Fig.3)
Fig.2
Fig.3
B
A
1
Top cover
1
2
A
C C C
Front panel assembly
Card wire
CN201
Power supply board
Tie
band
Wire
protection
board
Card
wire
CN402
Audio board
D
Front panel assembly
D
