Remote control
See pages in parentheses for details.
1 DVR/DVD mode selector (35, 38)
2 • Numeric buttons (26, 34 – 38)
1 – 10, 0, +10, 100+
• Adjusting buttons for speaker and subwoofer output level
and sound adjustment (22)
TEST, FRONT L, FRONT R, EFFECT, CENTER, SUBWFR,
C. TONE, SURR L, SURR R, D. EQ FREQ, S BACK L, S
BACK R
• RETURN button (34)
3 SOUND button (22 – 24)
4 • Operating buttons for DVD recorder or DVD player*
cursor buttons (3, 2, 5, ∞), ENTER (35, 38)
• Adjusting buttons for speakers and subwoofer output level
and D. EQ FREQ level (22)
LEVEL9, LEVEL(
5 MENU button for DVD recorder or DVD player* (35, 38)
6 • Operating buttons for video components (34, 35, 37, 38)
4, 3, ¢, 7, 8, REW, FF, REC PAUSE
• Operating buttons for tuner (25, 26)
( TUNING, TUNING 9, MEMORY, FM MODE
7 Source selecting buttons (12, 25, 34 – 38)
DVR/DVD, VCR, DBS, TV, USB, FM/AM
8 CHANNEL +/– buttons (34 – 38)
9 TV VOLUME +/– buttons (34, 36)
p STANDBY/ON
buttons (12, 34 – 38)
AUDIO, DVR/DVD, VCR, TV/DBS/CATV
q SURROUND button (31)
w EX/ES/PLIIx button (18)
e DIMMER button (14)
r SLEEP button (14)
t MIDNIGHT button (19)
y ANALOG/DIGITAL button (12)
u TV/VIDEO button (34, 36)
i VOLUME +/– button (13)
o MUTING button (14)
* These buttons can be used for operating a JVC DVD recorder
or DVD player with the mode selector set to “DVR” or “DVD”
(see page 35).
If these buttons do not function normally, use the remote control
supplied with your DVD recorder or DVD player. Refer also to
the manuals supplied with the DVD recorder or DVD player for
details.
• When operating a DVD recorder (for JVC products
ONLY), set the mode selector (1) to “DVR.”
• When operating a DVD player, set the mode selector (1)
to “DVD.”

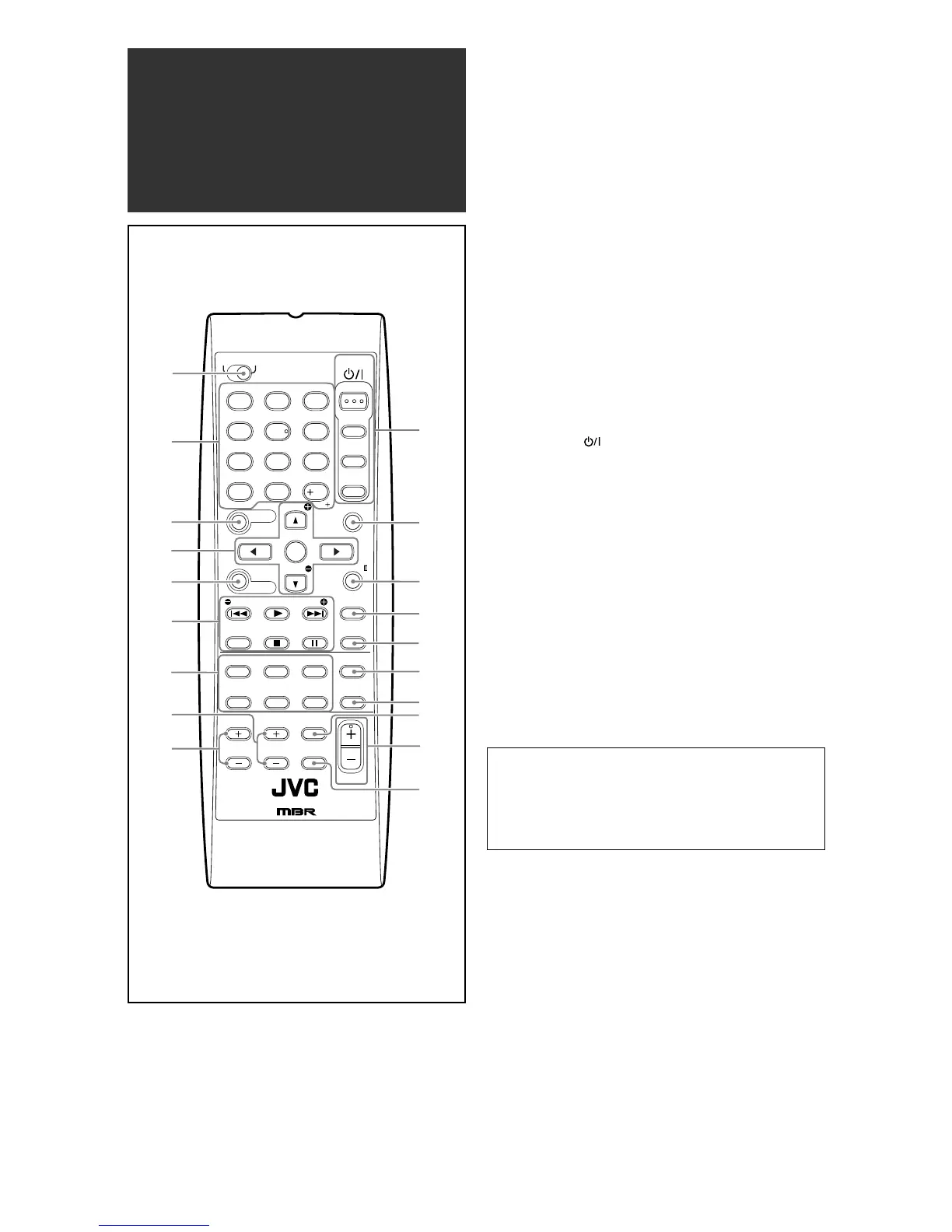

Parts identification
TV
A/V CONTROL
RECEIVER
AUDIO
DVR/DVD
VCR
TV/DBS/
CATV
TEST
EFFECT
C.TONE
*
D.EQ FREQ
RETURN
SOUND
*
FRONT L
EX/ES/PL x
REC PAUSE
MENU
DBS
DVR/DVD
FM/AM
USB
TV/VIDEO
SURROUND
MUTING
CHANNEL
VOLUME
MIDNIGHT
VCR
ANALOG/
DIGITAL
100
DVR DVD
1
4
7
10
2
5
8
0
3
6
9
10
REMOTE CONTROL RM-SRX D201J
2
p
w
e
r
1
q
TV VOLUME
STANDBY/ON
7
8
9
4
t
u
y
i
6
5
3
*
FRONT R
*
CENTER
*
SUBWFR
*
SURR L
*
SURR R
*
S BACK L
*
S BACK R
ENTER
*
LEVEL
*
LEVEL
TUNING/REW
MEMORY
FF/TUNING
FM MODE
DIMMER
SLEEP
o
