Connecting the TV with the component video input jacks
Connect the TV with the component video input jacks to view high quality picture.
Selecting the color system:
The center unit is compatible with the PAL and NTSC systems. Set the VIDEO OUT SELECT switch on the rear panel to match the color
system of your TV. Make sure that the color system of a DVD, Video CD, or SVCD disc labeled on the package matches your TV.
If you use a multi-system TV, you can play discs recorded on both PAL and NTSC systems.
Notes:
• When the component video input jacks of the TV are of the BNC type, use an adapter to convert the pin jacks to BNC jacks
(not supplied).
• Connect the S-video cable (not supplied). Otherwise, some functions of the TV may not work.

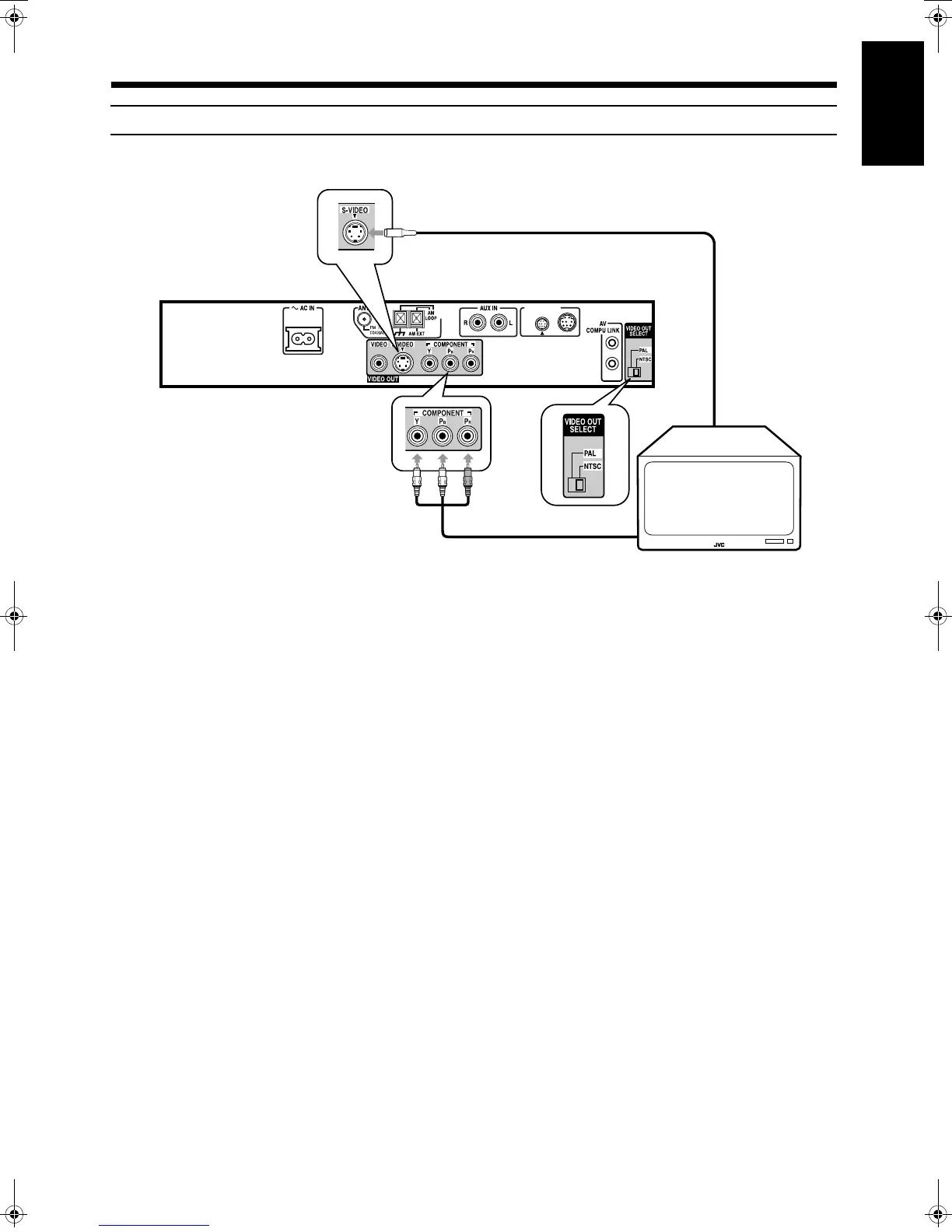

CONNECTOR
TO SP-PWA9
Component video cable
(not supplied)
• Connect “Y” to “Y”, “PB” to “PB”, and “PR” to “PR” correctly.
S-video cable (not supplied)
Green
Blue
Red
To component
video input
To S-video
input
VIDEO
OUT
SELECT
switch
