4-45

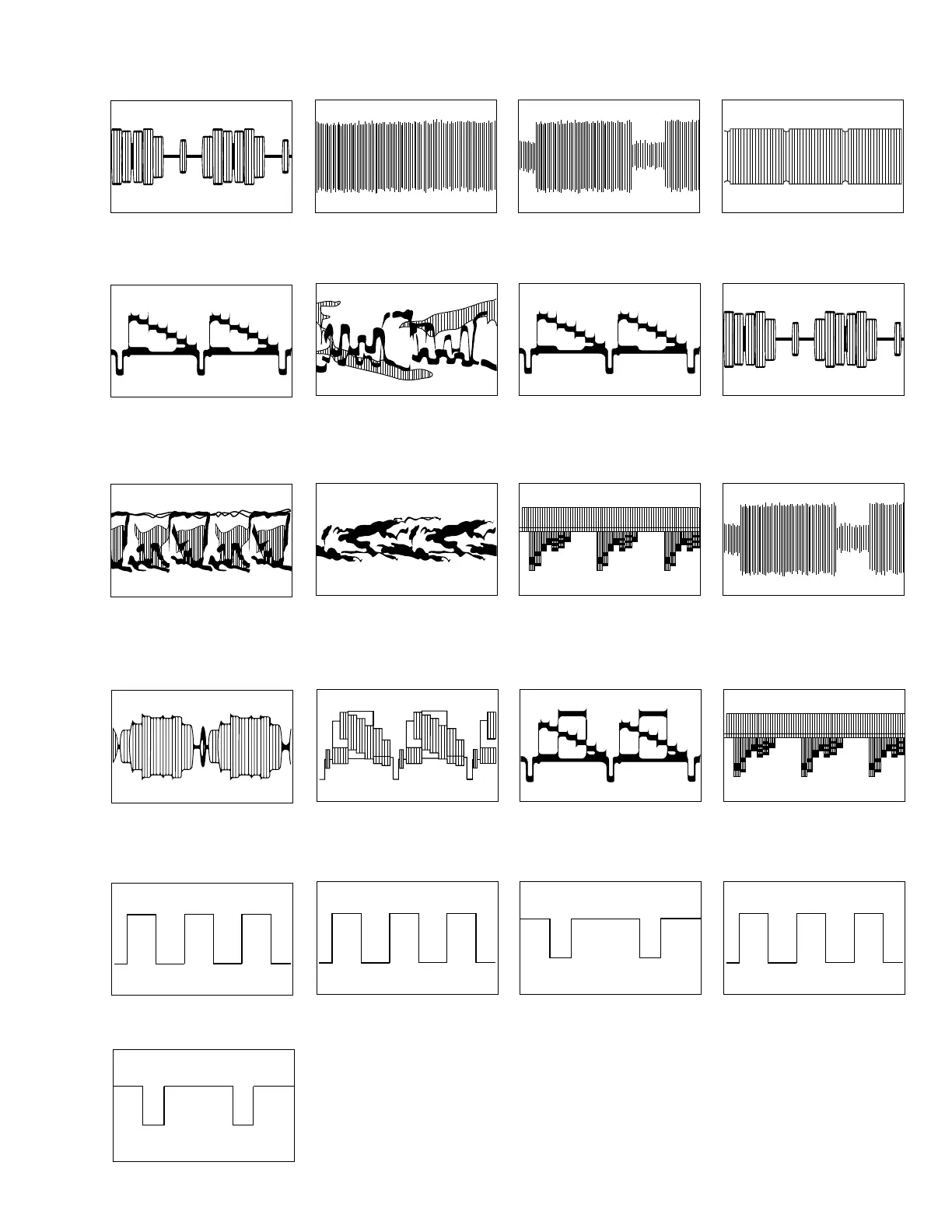

4.22 WAVEFORMS
WF1
IC3501-19
REC 0.1 Vp-p
2 mV/10 µsec/DIV
— VTR ASP —
WF2
IC3501-20
REC 0.57 Vp-p
10 mV/10 µsec/DIV
WF3
IC3501-21
PB 24 mVp-p
1 mV/5 msec/DIV
WF4
IC3501-25
PB 0.24 Vp-p
20 mV/5 msec/DIV
WF1
IC4001-146
REC/PB 0.28 Vp-p
10 mV/20 µsec/DIV
WF2
IC4001-147
REC/PB 0.28 Vp-p
10 mV/20 µsec/DIV
WF3
IC4001-160
REC 0.52 Vp-p
20 mV/10 µsec/DIV
PB 0.3 Vp-p
10 mV/10 µsec/DIV
WF4
IC4001-161
REC 0.15 Vp-p
PB 0.33 Vp-p
5 mV/10 µsec/DIV
— DSP —
WF5
IC4001-168
REC 0.76 Vp-p
20 mV/10 µsec/DIV
PB 0.17 Vp-p
5 mV/10 µsec/DIV
WF6
IC4001-169
REC 0.26 Vp-p
5 mV/10 µsec/DIV
WF1
IC5201-26
REC 0.48 Vp-p
PB 0.13 Vp-p
10 mV/10 µsec/DIV
WF2
IC5201-27
PB 24 mVp-p
1 mV/5 msec/DIV
— TG/CDS —
WF1
IC4702-9
REC/PB 0.34 Vp-p
10 mV/10 µsec/DIV
WF2
IC4702-12
REC 0.57 Vp-p
PB 0.55 Vp-p
10 mV/10 µsec/DIV
WF3
IC4702-15
REC 0.66 Vp-p
PB 0.64 Vp-p
10 mV/10 µsec/DIV
WF1
Q5301-B
EE 0.52 Vp-p
10 mV/10 µsec/DIV
— V OUT —
— CCD —
WF1
IC101-109
REC/PB 0.96 Vp-p
20 mV/0.5 msec/DIV
WF2
IC101-111
REC/PB 0.9 Vp-p
50 mV/5 msec/DIV
WF3
IC101-113
REC/PB 0.96 Vp-p
20 mV/0.1 msec/DIV
WF1
IC1601-25
REC/PB 0.96 Vp-p
20 mV/0.1 msec/DIV
— CPU —
— M.MDA —
WF2
IC1601-26
REC/PB 0.9 Vp-p
50 mV/5 msec/DIV
