5
If anything is missing, contact your dealer immediately.
• Remote control (x 1)
• Batteries (x 2)
• FM antenna (x 1)
• AM (MW) loop antenna (x 1)
• Docking station for iPod (x 1)
• Feet (x 8) (For front speakers)
• Stands (x 2) (For front speakers)
• Screws: M5 x 12 mm (x 4) (For front speakers)
Battery shall not be exposed to excessive heat such
as sunshine, fire or the like.
If the range or effectiveness of the remote control
decreases, replace both batteries.
You can install the front and center surround
speakers on the wall. When installing the front
speakers on the wall, do not attach the stands.
You can enjoy the sound of the center channel, surround
right channel, and surround left channel with the center
surround speaker.
Speaker layout
* Place each front speaker with the curved-side facing
outward.
Select “S.SPK F” as the speaker position mode for
this layout. ( 11)

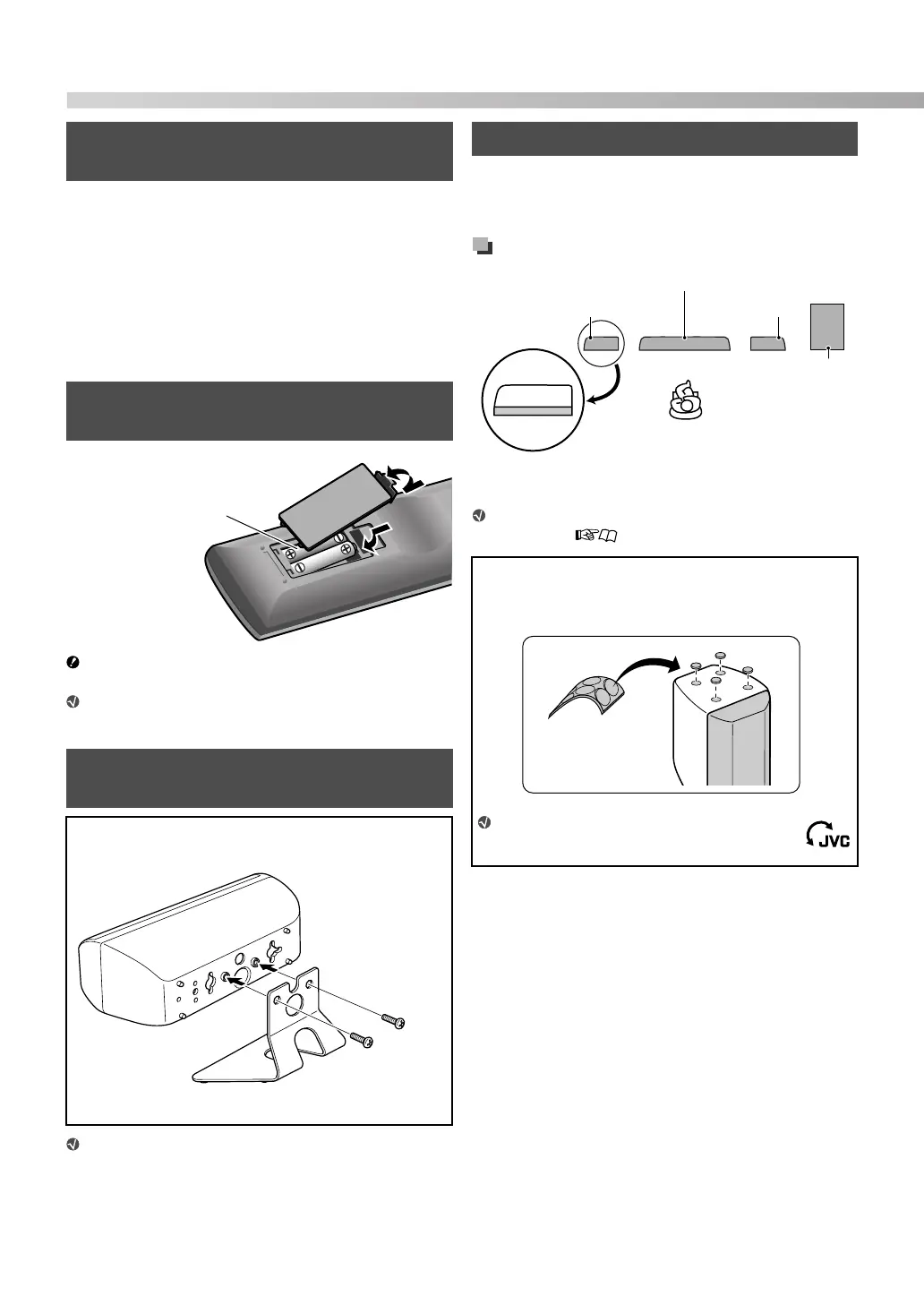

Checking the supplied
accessories
Putting batteries into the remote
control
Attaching the stands to the front
speakers
To place the front speakers horizontally, attach a stand to
each one.
R03 (UM-4)/AAA (24F) type
dry-cell batteries (supplied)
Screws
M5 x 12 mm
(supplied)
Stand (supplied)
Speaker layout and connection
Attaching the feet
When placing the front speakers vertically, attach the feet
as illustrated.
You can turn the JVC logos to make
them legible.
Subwoofer (SW)
Center surround (CS)
Front left (L) Front right (R)
*
Peel off.
Feet (supplied)
Getting started
TH-D51[B]EN.book Page 5 Friday, August 3, 2007 10:26 AM
