1-10 (No.MB230)
3.1.4 Removing the rear cover (See Figs.11 and 12)
• Prior to performing the following procedures, remove the side
panels L/R and top cover.
(1) From the left side of the main body, cut off the tie band at-
taching the barrier. (See Fig.11)
(2) Disconnect the wire from the connector CN760
on the main
board. (See Fig.11)
(3) From the back side of the main body, remove the twelve
screws J and screw K attaching the rear cover. (See
Fig.12)
(4) Remove the rear cover from the main body.

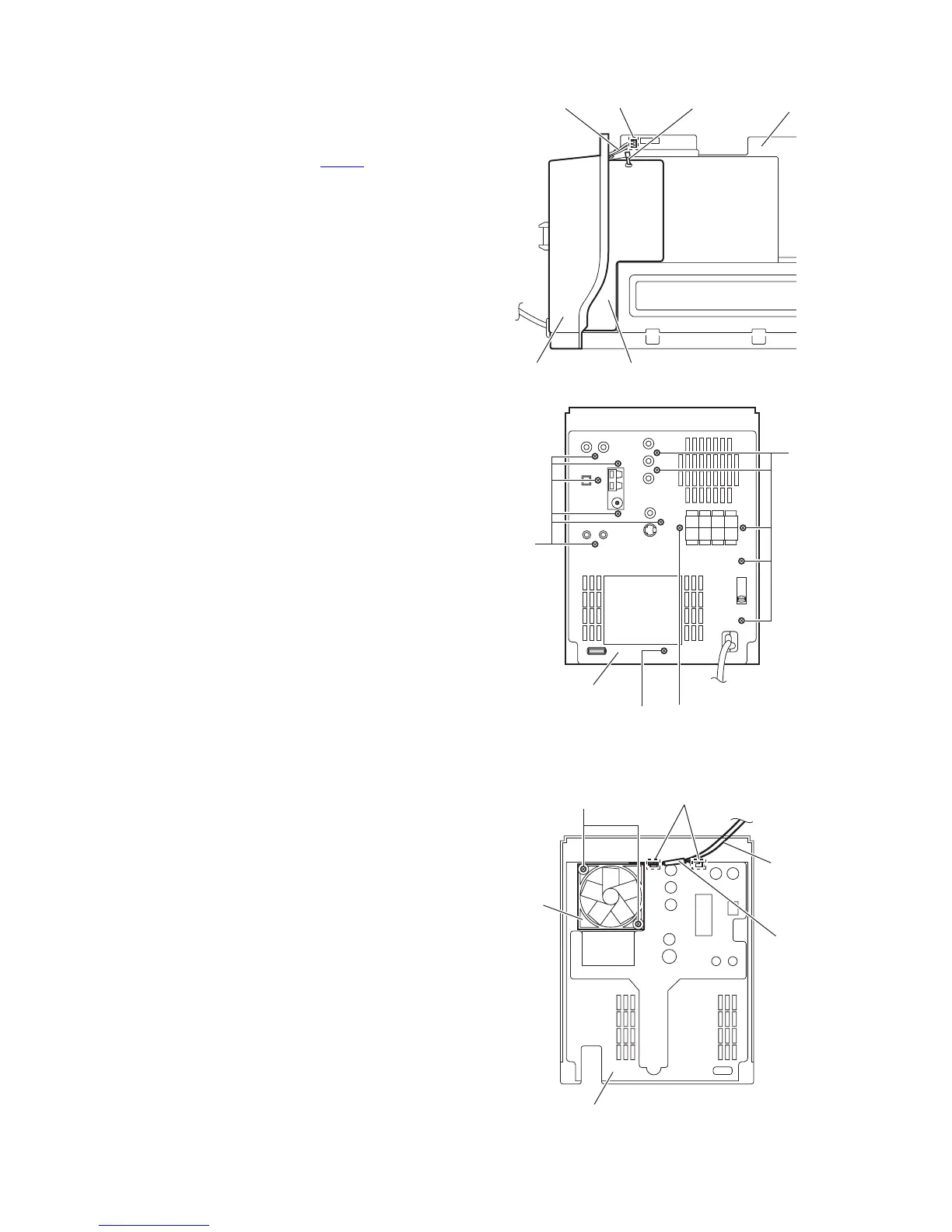

Fig.11
Fig.12
3.1.5 Removing the fan (See Fig.13)
• Prior to performing the following procedures, remove the side
panels L/R, top cover and rear panel.
(1) From the inside of the rear cover, remove the two screws L
attaching the fan to the rear cover.
(2) Take out the fan from the rear cover.
Reference:
After attaching the fan, pass the wire through the slots e
and fix the wire with the spacer.
Fig.13
Wire
CN760
Main board
Rear cover
Barrier
Tie band
Rear cover
K J
J
J
Rear cover
Slots e
Wire
Space
Fan
L
To Next Page
