DYNAMIC RANGE
When line out is selected, use this setting to adjust the line out ratio for a different
effect, the audio signal peak value will be at the minimum when set to full;peak
value will be at the maximum when set to off.
DUAL MONO
Choose this option to set up the left(L) and right(R) mono output; there are
four modes in this option
CD ripping and Copy
Please make sure the removable USB device has enough memory space that
can accept all contents from DVD Player.
CD Taking-In
In CD playback mode,press the COPY/
DEL button on the remote control to
display the CD ripping interface.Use the
arrow buttons(UP,DOWN,LEFT,RIGHT)
to move around on the screen and select
the options, Then press the ENTER
button to enter the option/submenu or
confirm your choice.

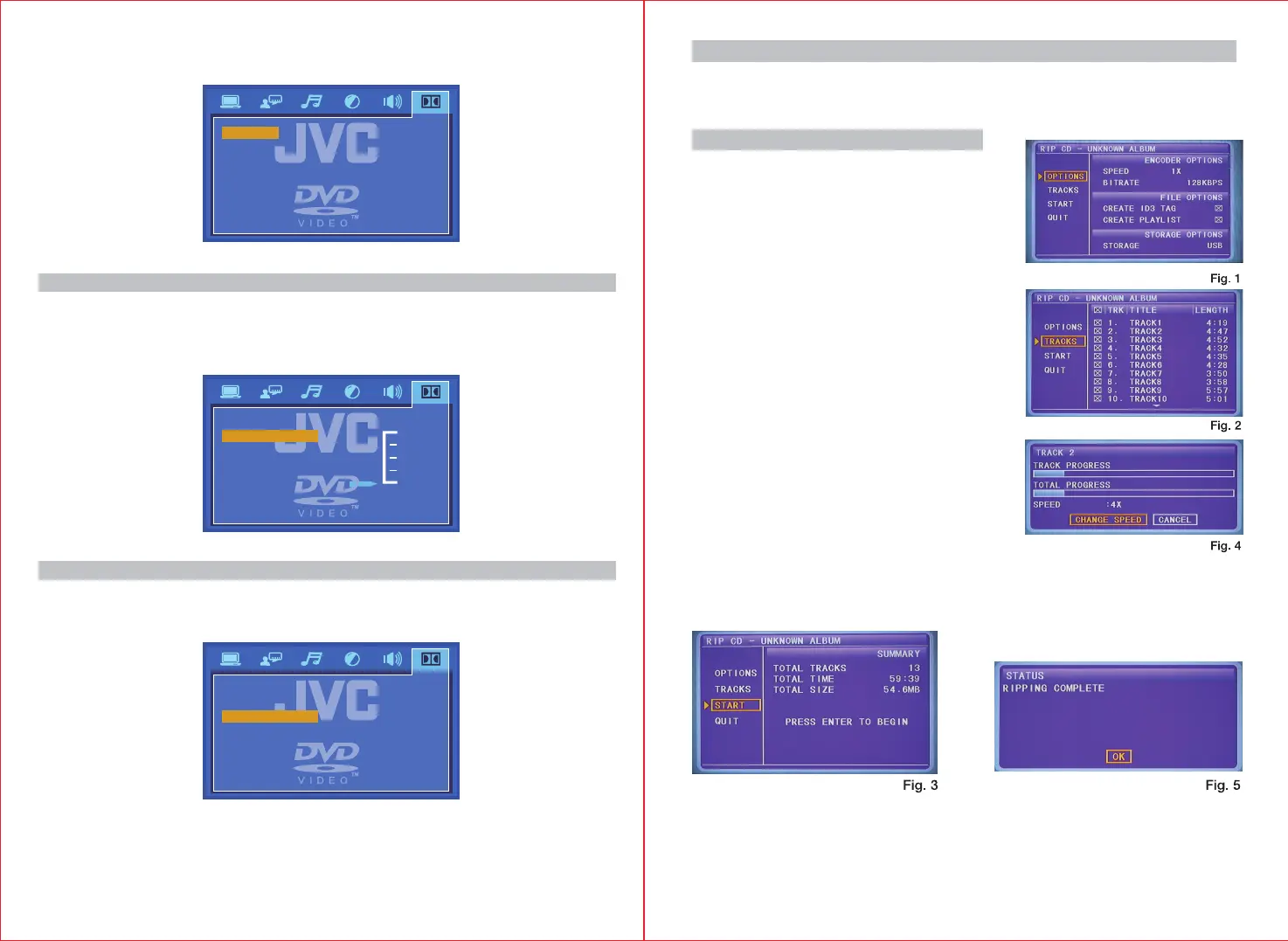

1.In the OPTIONS menu(see Fig.1) you can
select a different speed or bitrate, or
create or cancel a playlist.
2.In the TRACKS menu you can view the
length of the tracks, Press the arrow
buttons to select a track, then press
ENTER to confirm your selection.
To select (or unselect) all tracks, move the
highlight to the box on top of the track box
(see Fig.2) and press the ENTER button.
3.In the START menu(see FIG.3) you can
follow the progress of CD-Ripping.
Press the ENTER button to start the
process(Fig.4) To cancel or change the speed, press the ENTER button.
4.At the end of the process,the screen will display RIPPING COMPLETE(Fig.5)
Use the DOWN arrow button to select QUIT,then press ENTER to exit.
OP MODE
DYNAMIC RANGE
DUAL MONO
LINE OUT
RF REMOD
OP MODE
DYNAMIC RANGE
DUAL MONO
6 / 8
FULL
4 / 8
2 / 8
OFF
OP MODE
DYNAMIC RANGE
DUAL MONO
MONO L
STEREO
MONO R
MIX MONO
