Operations

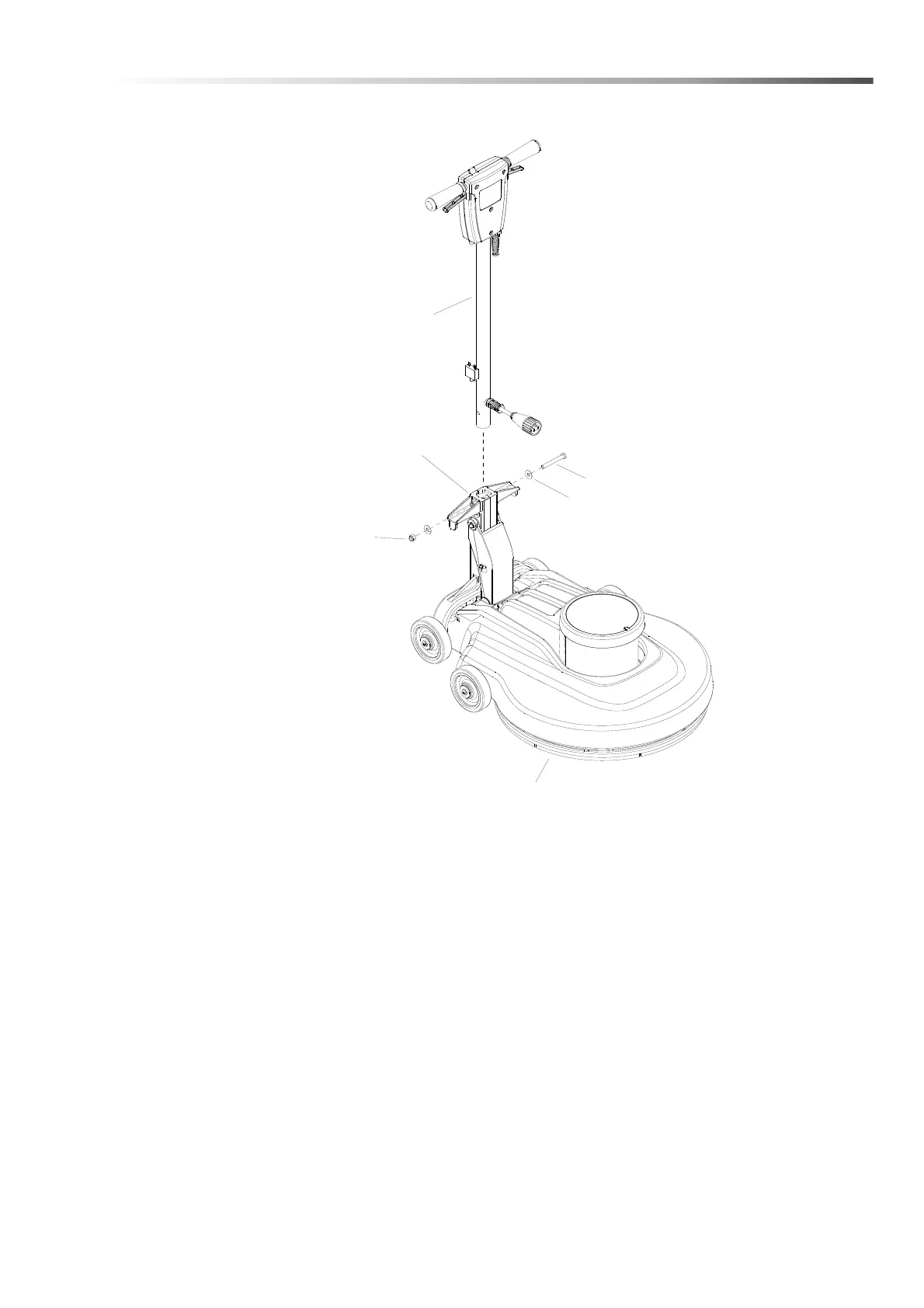

Handle Installation
The machine is shipped with handle unassembled.
Follow these steps for installation:
1. Remove handle and chassis assembly from carton.
2. Remove bolt (item 3), washers (item 2), and nut (item 1) from chassis assembly.
3. Install Handle Assembly as shown.
4. Slide Bolt (item 3) through, washers (item 2), Handle Mount Brackets and Handle Assembly as shown.
Tighten bolt (item 3) and nut (item 1) until the handle cannot twist in the mount bracket (45-50 foot pounds).
5. Check handle for movement up and down.
6. Plug cord into handle cord receptacle.
HANDLE
ASSEMBLY
1
2
3
CHASSIS
ASSEMBLY
HANDLE
MOUNT BRACKET
86387310 Operators Manual - High Speed Burnisher (2000 Series)
