Water connection
Supply pressure (max.) ........................................ (12 bar) 1,2 MPa
Supply temperature (max.).....................................................60 °C
Supply rate (min.) .................................................................700 l/h
Supply hose (order no. 4.440-207)
- Length (min.) .......................................................................7.5 m
- Diameter (min.) ...................................................................1/2 inch
Suction height from an open tank (max.) ..............................0.3 m
Electrical connection
Voltage .................................................................................230 V
Type of current .................................................................. 1~50 Hz
Connected load .....................................................................3.1 kW
Mains fuse (slow-blowing) ......................................................16 A
High-pressure pump
Operating pressure .............................................. (120 bar) 12 MPa
Pump pressure max. ............................................ (150 bar) 15 MPa
Flow rate (max.) ...................................................................550 l/h
Cleaning agent suction (max.) ........................................... 0-25 l/min
Recoil force on the hand-held spray gun
at working pressure (max.).....................................................25 N
Hand-transmitted vibration (ISO 5349)..................................0,8 m/s²
Sound pressure level L
PA
(EN 60704-1) ..................................79 dB(A)
Sound power level L
WA
(2000/14/EC) ......................................96 dB(A)
Oil quantity ..........................................................................0.21 l
Oil type (order no. 6.288-050) ........................................ 15W40
Dimensions
Length ..................................................................................710 mm
Width ....................................................................................325 mm
Height ...................................................................................790 mm
Weight without accessories....................................................24 kg
Tank for cleaning agent............................................................3 l

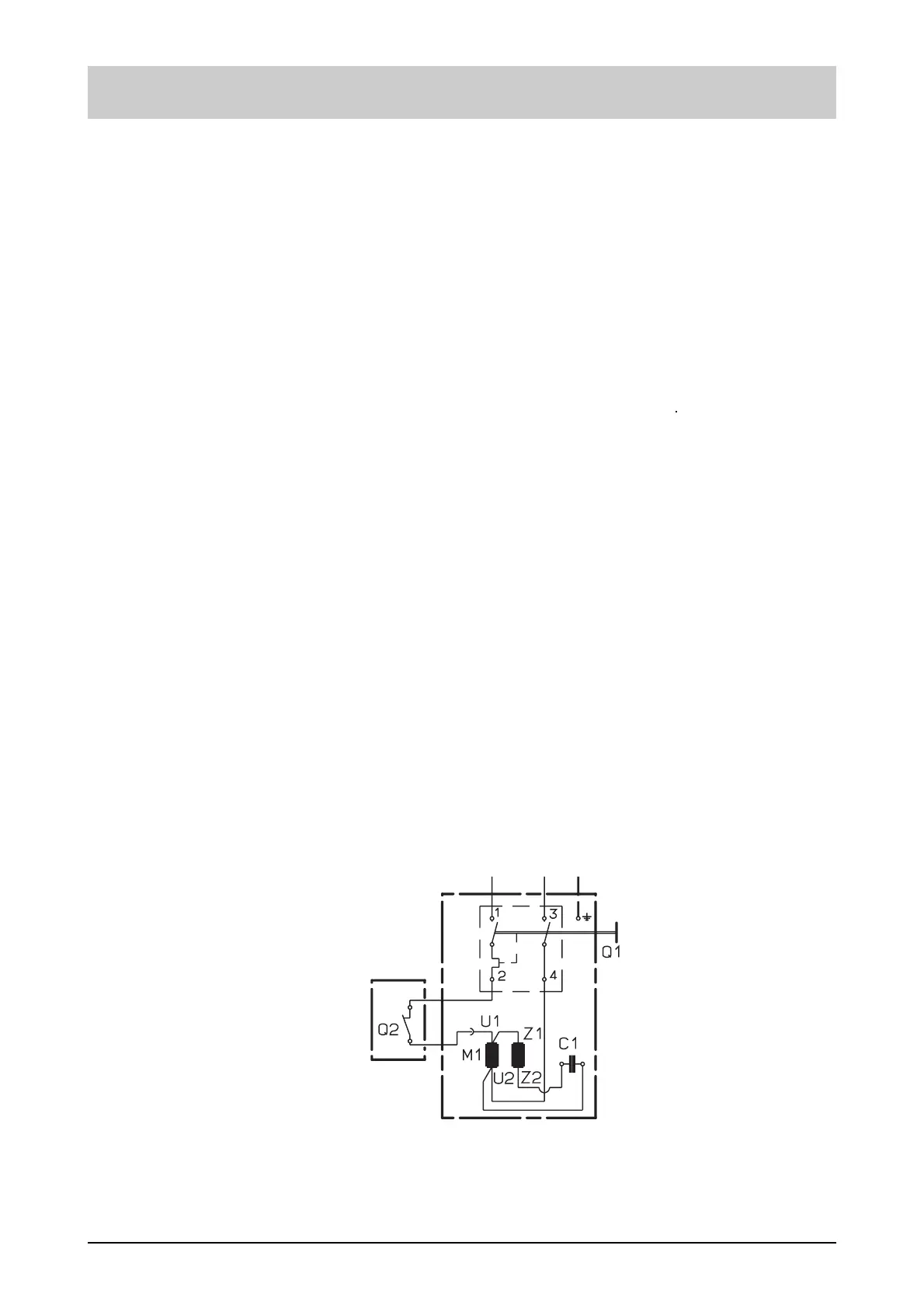

Circuit diagram
C1 Running capacitor
M1 Engine
Q1 Motor Protection
Q2 Pressure switch
