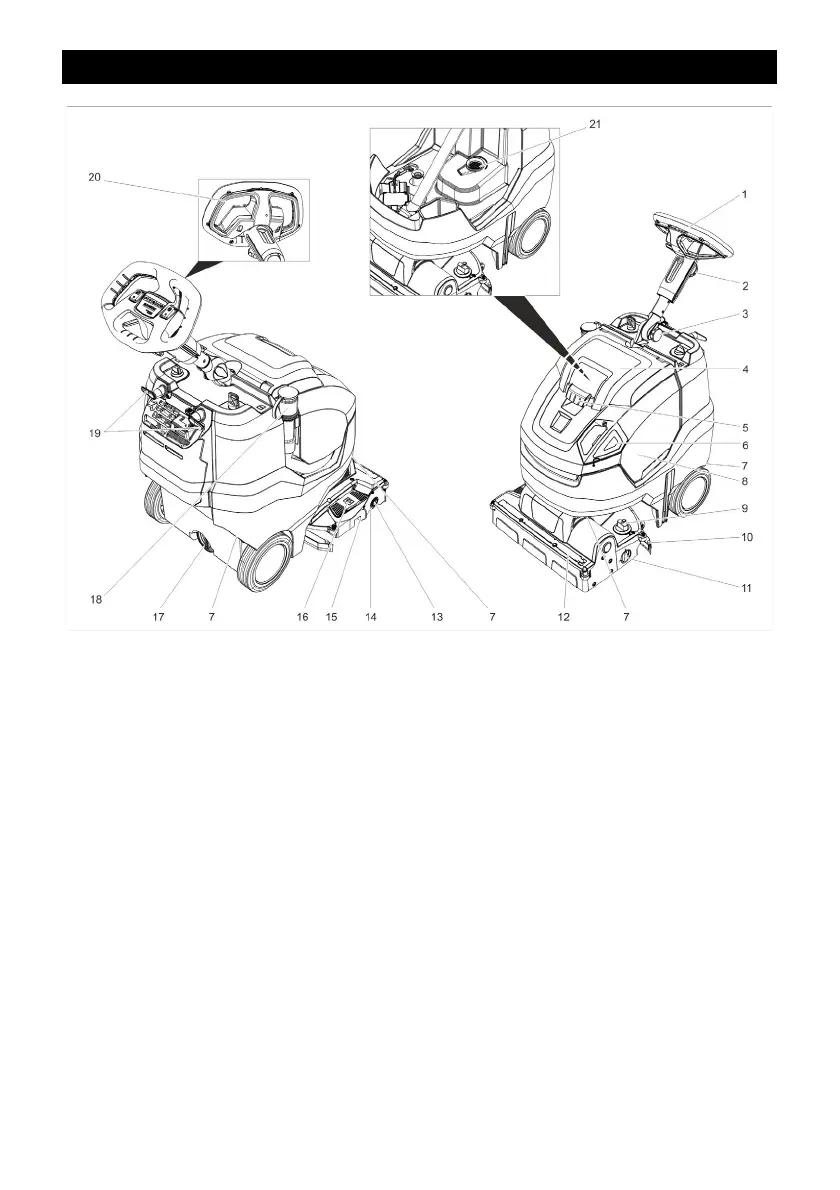

– 6
1 Steering wheel
2 Star knob, height adjustment of the
steering wheel
3 Star knob, transport position of the
steering wheel
4 Cover dirt water reservoir
5 Unlocking device, cover waste wa-
ter tank
6 Fresh water tank dosing lid
7 Transport handle to lift the appli-
ance
8 waste water tank
9 Rotating handle for brush contact
pressure
(1=min, 4=max)
10 Vacuum bar
11 Transport chassis rotary knob
12 Water distribution bar
13 Unlocking button for brush roller
14 Brush roller
15 Coarse dirt container
16 Vacuum bar lift pedal
17 Drain outlet fresh water tank
18 Drain hose for wastewater with dos-
ing unit
19 Cable hook, rotating
20 Safety button
21 Fluff filter
Control elements
8 EN
