Keithley 2260B-30-36 User Manual

OPERATION
67
Output Voltage/
Output Current
Model
Single unit
2 units
2260B-30-36
30V
60V
36A
36A
2260B-80-13
80V
160V
13.5
13.5A
2260B-30-72
30V
60V
72A
72A
2260B-80-27
80V
160V
27A
27A
Master-Slave Series Connection
Master-Slave
Connector
The Analog Control Connector is used for both
serial and parallel connections. The way the
connector is configured determines the
behavior of the master and slave units. For the
connector pin assignment, see page 99.
Analog Connector
Connection

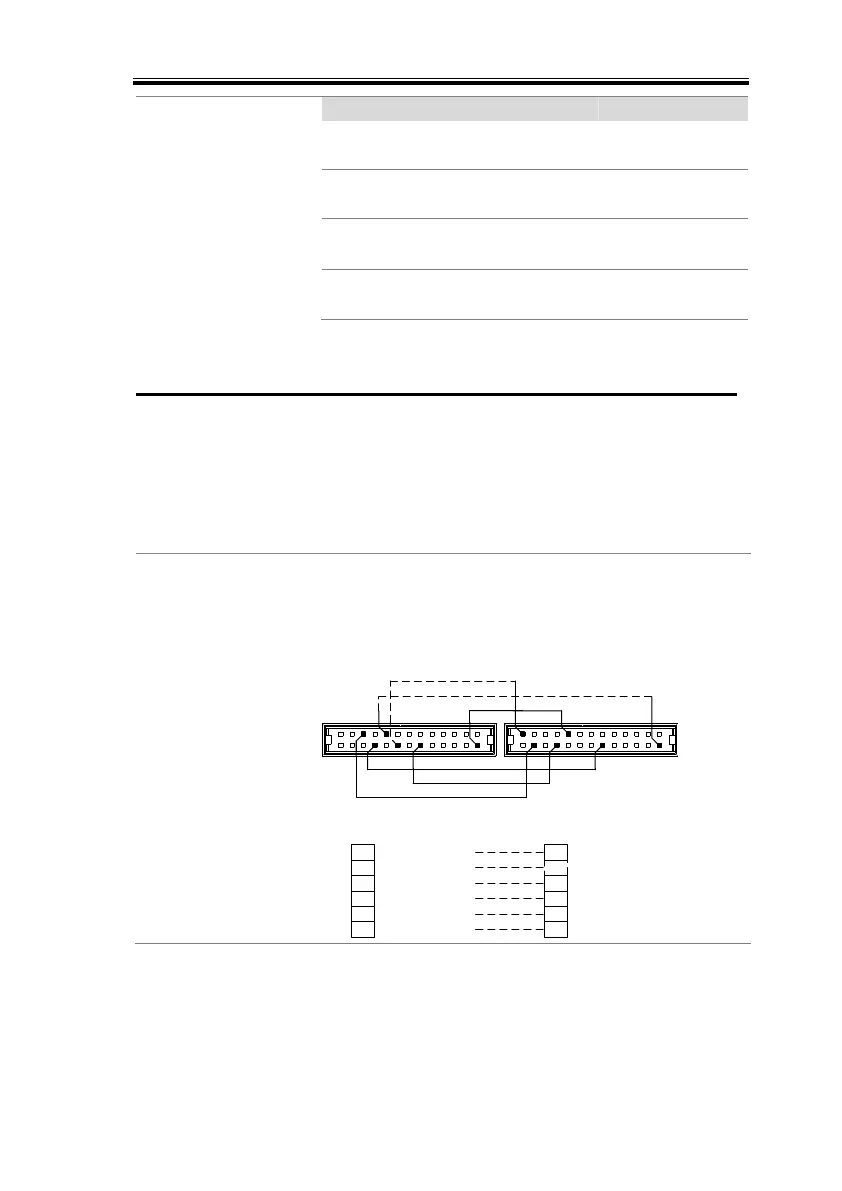

To operate the power supplies in series, connect
the analog connectors on the master and slave
unit as shown in the diagram below.
2
12
17
20
21
Master unit
A COM
16
OUTPUT ON STATUS
21
ALM STATUS
20
STATUS COM
17
SHUTDOWN
12
Slave Unit 1
25 SER SLV IN
20 ALM STATUS
12 SHUTDOWN
2 D COM
24 OUT OFF/ON CONT
2 D COM
24 20 12
17
25
2
16
17 STATUS COM
