2600AS-903-01 Rev. A / September 2008 7
Series 2600A SourceMeter® Instruments Quick Start Guide
NOTE: TSP Express requires Java runtime environment (version 6) to be installed. If you don’t already have Java runtime environment on your PC,
download and install it from http://www.java.com/en/download/index.jsp or from the product CD shipped with your 2600A.

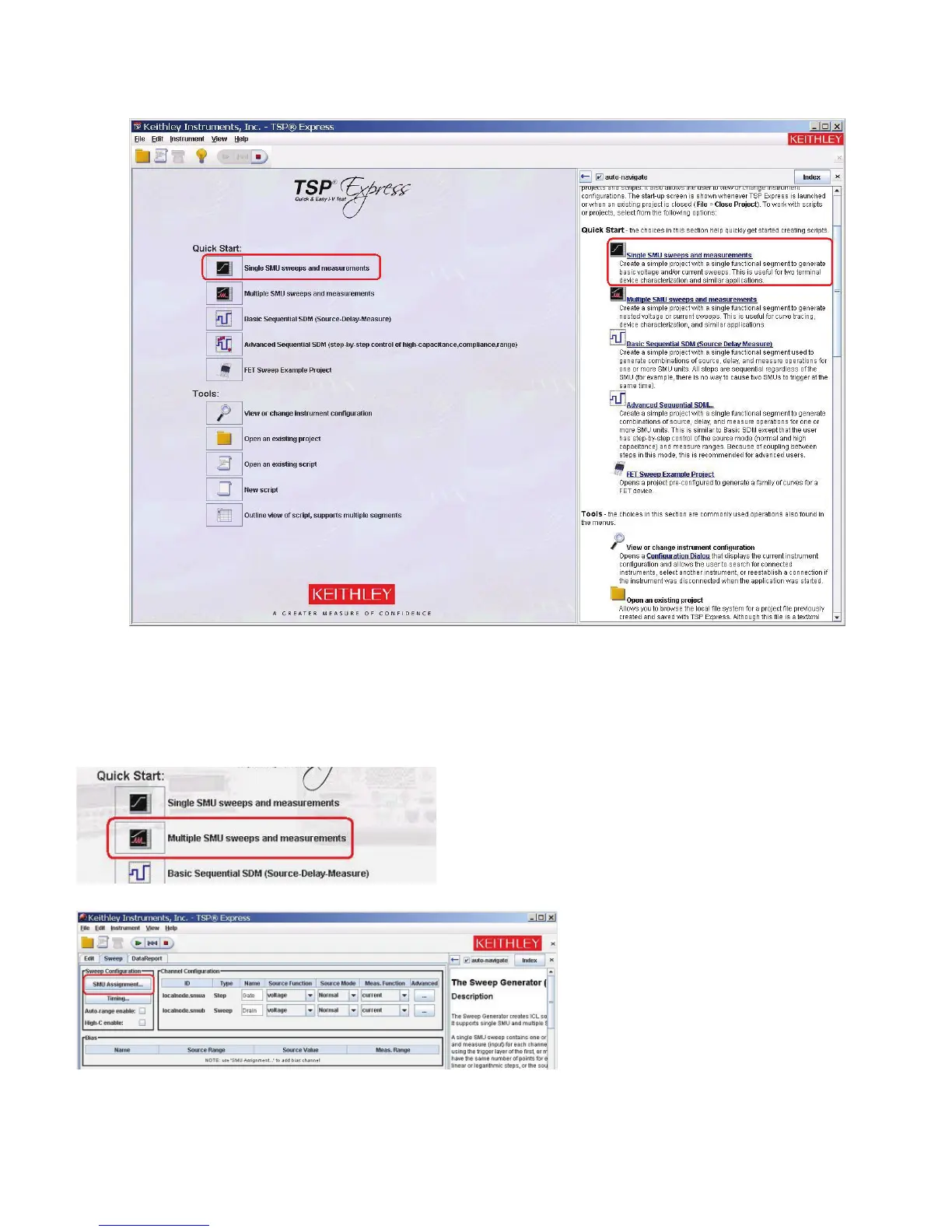

Quick start menu of TSP Express includes pre-configured tests for common SMU functionality, such as sweeps, pulse and sequential source-measure
(see help content on the right column for detail description of each). Tools section provides file management and other utilities (see help).
As an example, let’s say you want to generate an idvd curves of a FET.
Step 2. Connect the DUT
Here the device connection with a 2602A is shown.
Step 3. Configure the project and Run
1. From the Quick Start Menu, select multi-SMU sweep
2. Click SMU assignment.
