6 Quick Results Guide
Front/rear terminals selection
The input/output and sense terminals are accessible from both the front and rear panels,
while the guard terminals and chassis ground are only accessible from the rear panel. On the
front panel, press the FRONT/REAR key to toggle between front and rear. The REAR annunci-
ator indicates that the rear terminals are selected. With REAR off, the front terminals are
selected.
2-wire connections
Connections for 2-wire local sensing are shown in Figure 3. The following menu sequence
selects 2-wire local sensing:
Press CONFIG > select SOURCE V (or
ΜΕΑ
S
Ω
) > select SENSE MODE > select 2-WIRE
HI
LO
OUTPUT
INPUT/
OUTPUT
4-WIRE
SENSE
ON/OFF
TERMINALS
FRONT/
REAR
DUT
SourceMeter Front Panel
Sense Selection: 2-wire
FRONT/
REAR

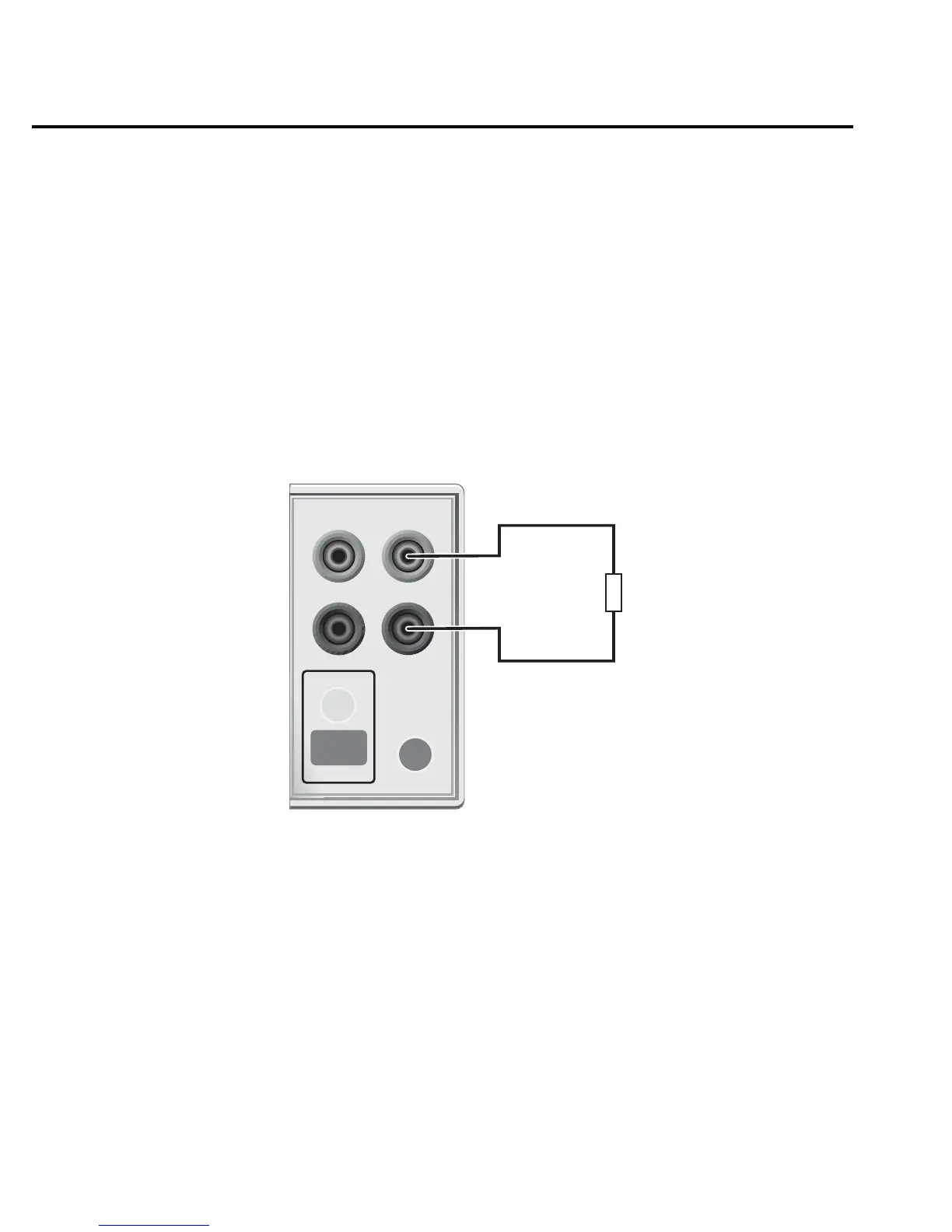

Figure 3
2-wire connections
