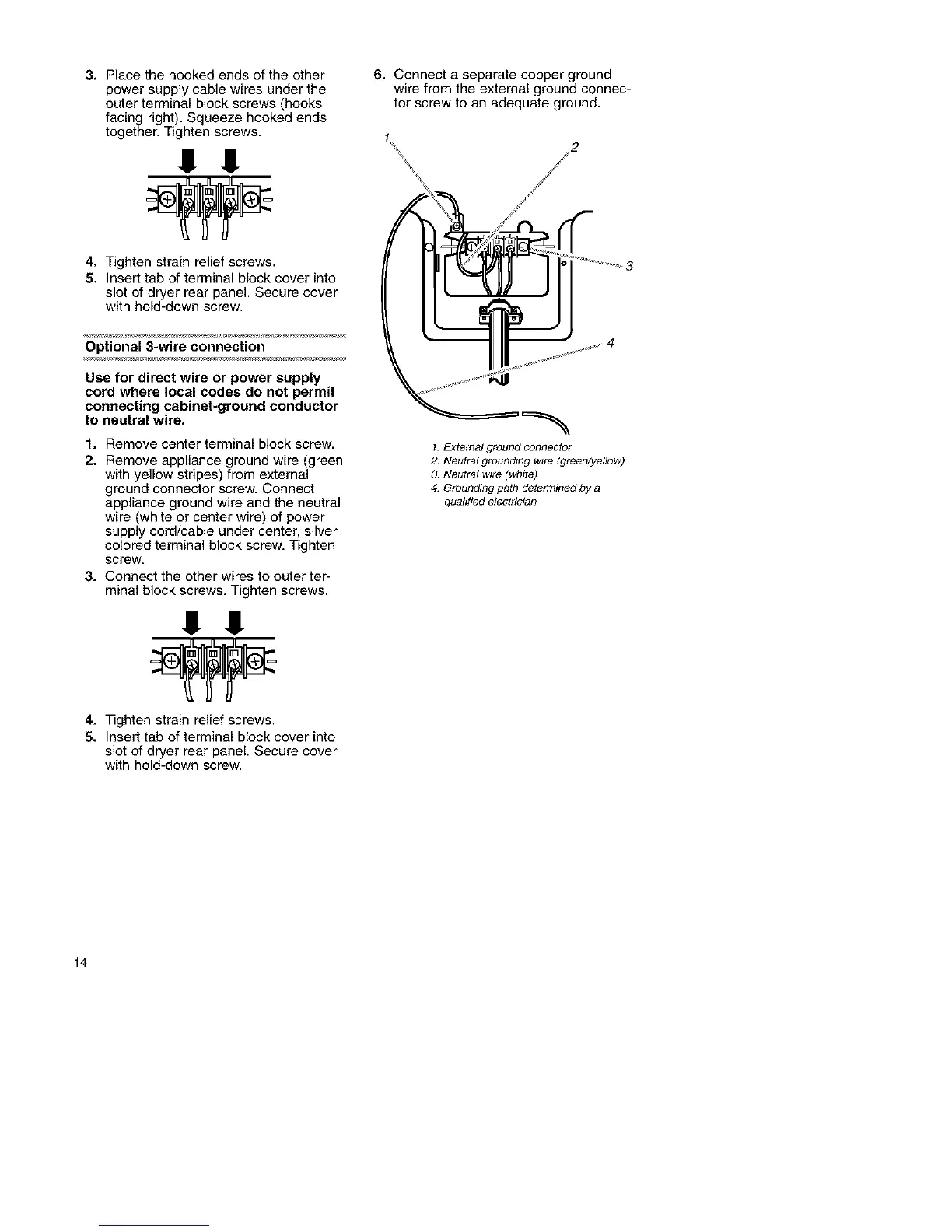

3. Place the hooked ends of the other
power supply cable wires under the
outer terminal block screws (hooks
facing right). Squeeze hooked ends
together. Tighten screws.
!! !!
4. Tighten strain relief screws.
5. Insert tab of terminal block cover into
slot of dryer rear panel. Secure cover
with hold-down screw.
Optional 3-wire connection
Use for direct wire or power supply
cord where local codes do not permit
connecting cabinet-ground conductor
to neutral wire.
1. Remove center terminal block screw.
2. Remove appliance ground wire (green
with yellow stripes) from external
ground connector screw. Connect
appliance ground wire and the neutral
wire (white or center wire) of power
supply cord/cable under center, silver
colored terminal block screw. Tighten
screw.
3. Connect the other wires to outer ter-
minal block screws. Tighten screws.
!!!!
4. Tighten strain relief screws.
5. Insert tab of terminal block cover into
slot of dryer rear panel. Secure cover
with hold-down screw.
6. Connect a separate copper ground
wire from the external ground connec-
tor screw to an adequate ground.
2
1. External ground connector
2. Neutral grounding wire (green/yellow)
3. Neutral wire (white)
4. Grounding path determined by a
qualified electrician
14
