5. Flow Diagram
To avoid risk of electrical shock that can cause death or severe personal injury,
disconnect unit from power before servicing unless tests require power.
16 / 69
!
WARNING
D
OD6mm
FZ2
FZ1
FD2
FD1
IM2
IM1
F
D
H
E
A
B
C
G
ST1,ST2,ST3

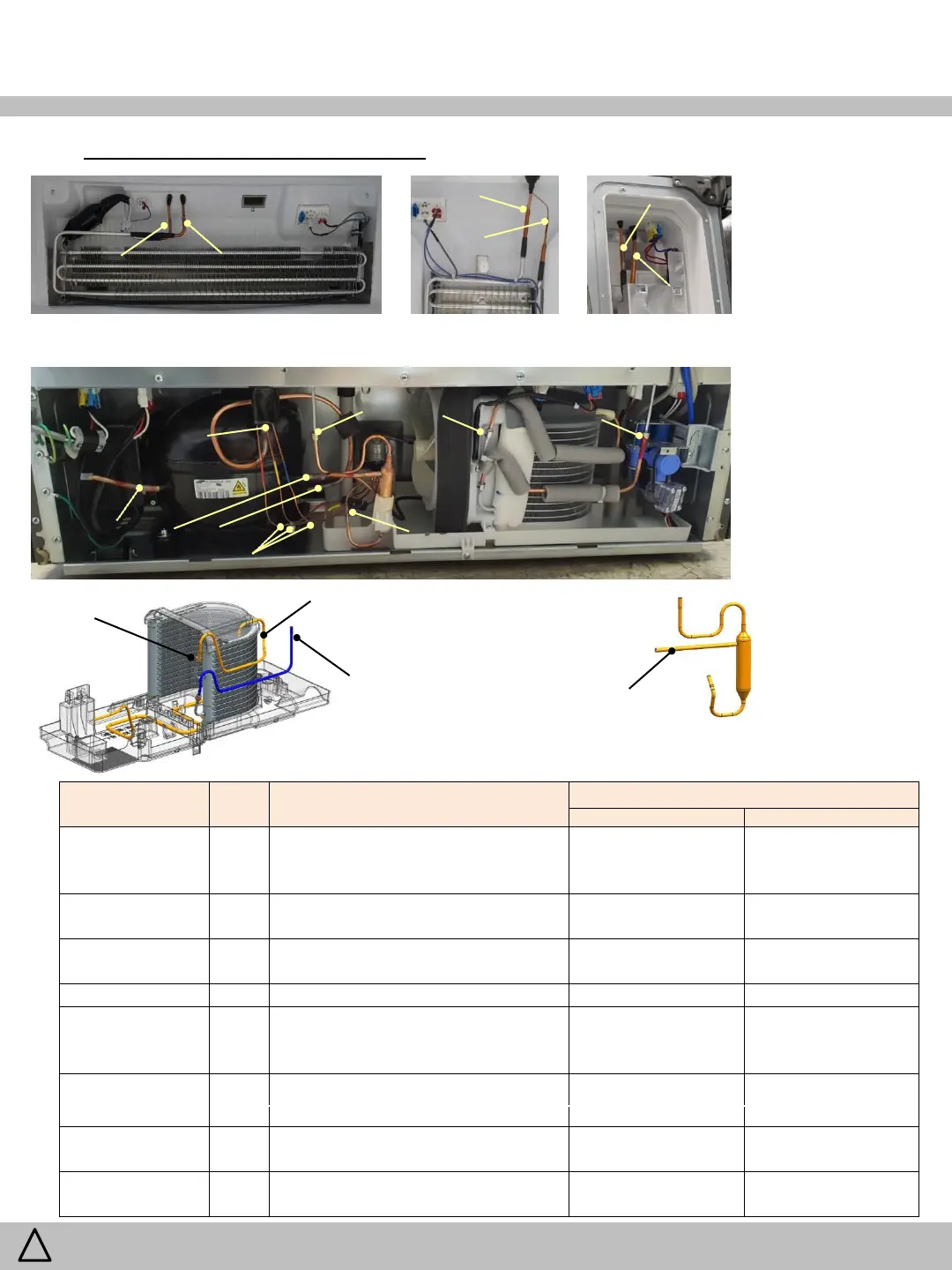

5-3. Refrigerant Flow and Lokring Point
“PIPE CONN A1
AS”(connected from
compressor discharge
E
pipe to condenser inlet
pipe) included in
Condenser Ass’y(“PIPE
WICON AS”)
Filter- drier
Location
Tag
Description
Lokring
Part Number Spec.
Compressor
A
Process Stub
L13000654
8/6NRMS00
B
Discharge
L13000630
6/5NRMS00
C
Suction
L13000654
8/6NRMS00
Condenser
D
Cond Inlet
Non-serviceable
5/4NRMS00
E
Cond Outlet/Yoder Inlet
L13000622
Filter-drier
F
Inlet/Yoder Outlet
L13000622
5/4NRMS00
G
Drier Outlet/Step Valve Inlet
L13000621
5/3.5NRMS00
Suction Line
H
Cabinet Outlet/Pipe Suc Conn Inlet
L13000588
6NKMS00
Step Valve
ST1
Outlets To cap tubes
L13005976
2.8/1.8NRMS00
ST2
ST3
Ref evaporator
R1
Inlet
L13000931
4/1.8NRMS00
R2
Outlet
L13000654
8/6NRMS00
IM evaporator
IM1
Inlet
L13000654
8/6NRMS00
IM2
Outlet
L13000654
8/6NRMS00
FZ evaporator
FZ1
Inlet
L13000654
8/6NRMS00
FZ2
Outlet
L13000654
8/6NRMS00
