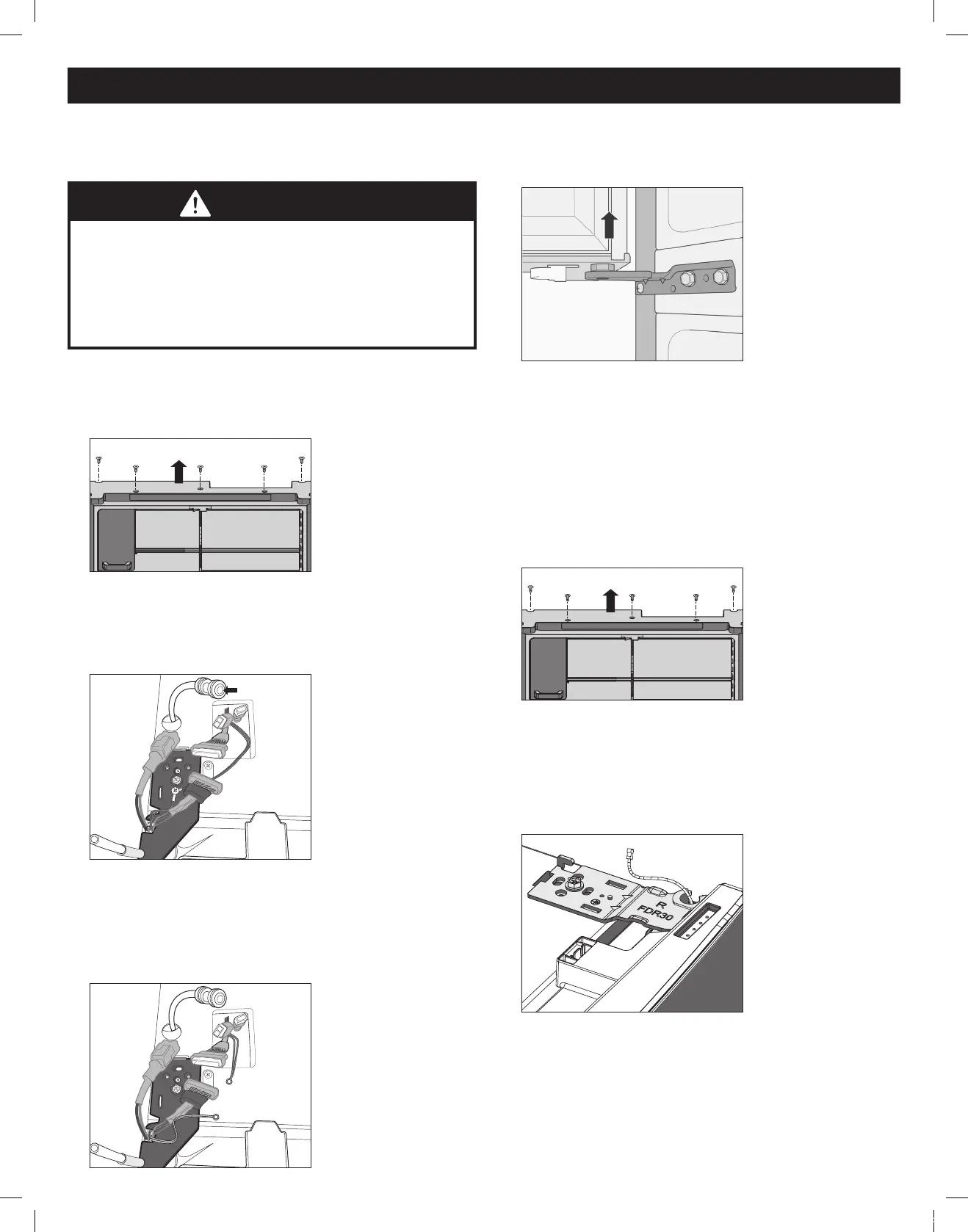

REMOVING AND REPLACING
REFRIGERATOR DOORS
WARNING
Risk of electric shock!
Before removing top hinge cover
• Shut off the water supply to the appliance.
• Unplug the appliance or switch off power from the
breaker or fuse panel.
To remove the left refrigerator door:
1.
Remove top hinge cover using a phillips screwdriver by
removing 5 screws.
2.
Remove the hinge grounding wire screw and pull the
two grounding wire connections away from the hinge.
Disconnect the two wire harnesses and the water tube.
Push in the small first ring on the connection collar to
remove the tube.
3.
Using a 10mm box end or socket wrench, turn top
hinge fastener counterclockwise to remove the top
hinge plate.
CAUTION:
After the hinge is removed, the door can
fall down forward. Hold the door to prevent it from
falling.
4.
Lift the door from the middle hinge pin and remove
the door. Place the door, inside facing up, on a non-
scratch surface.
NOTE :
If necessary to be able to move the unit
through a narrow door or hallway, remove the left and
right door middle hinges. Use a 10mm wrench to loosen
and remove the two bolts attaching the hinge to the
cabinet.
To remove the right refrigerator door:
1.
Remove top hinge cover using a phillips screwdriver by
removing 5 screws.
2.
Using a 10 mm box end or socket wrench, turn top
hinge fastener counterclockwise to remove the top
hinge plate. Disconnect the wire harness.
CAUTION:
After the hinge is removed, the door can
fall down forward. Hold the door to prevent it from
falling.
3.
Lift the door from the middle hinge pin and remove
the door. Place the door, inside facing up, on a non-
scratch surface.
REFRIGERATOR INSTALLATION
Push In
